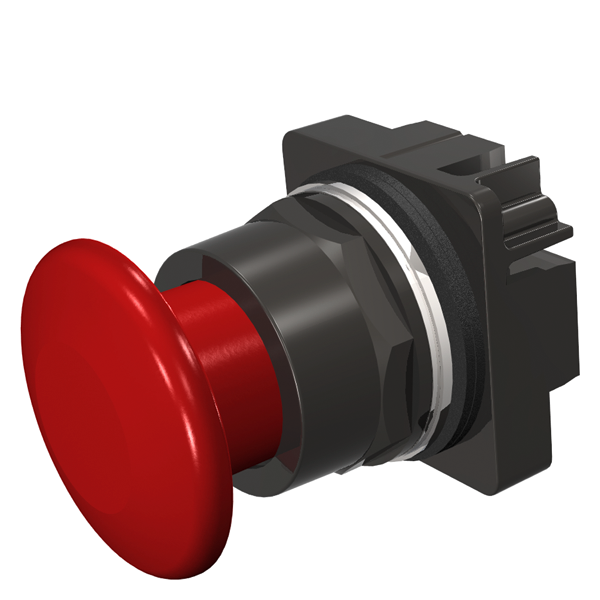

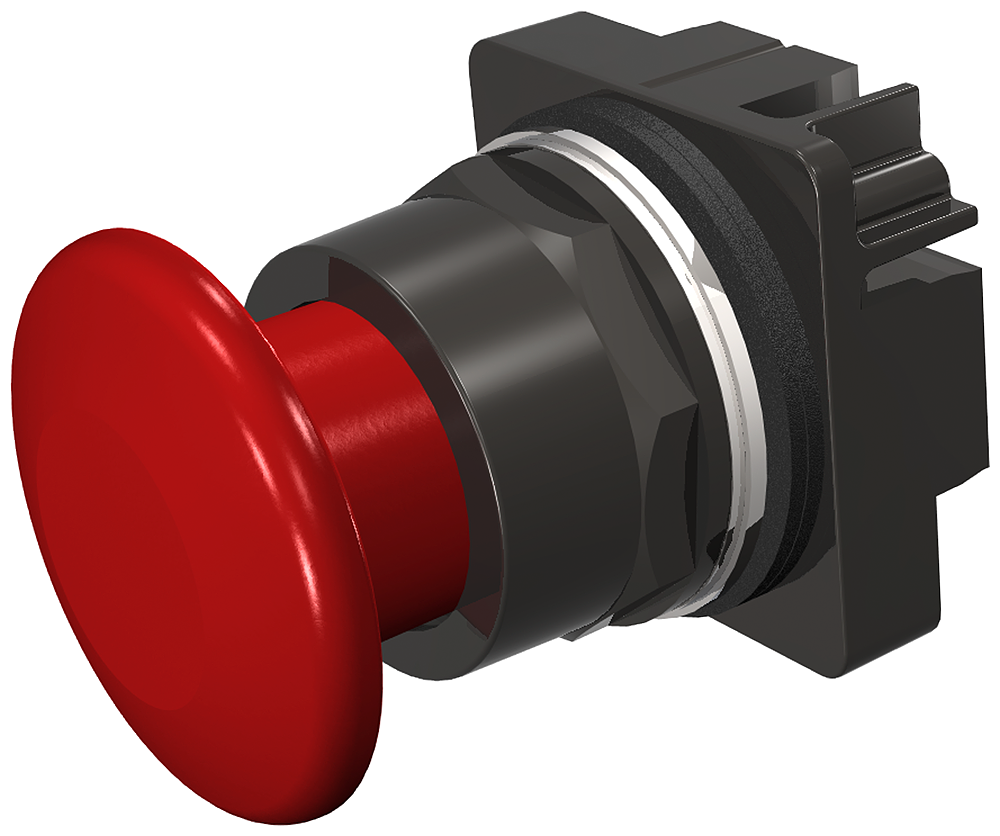

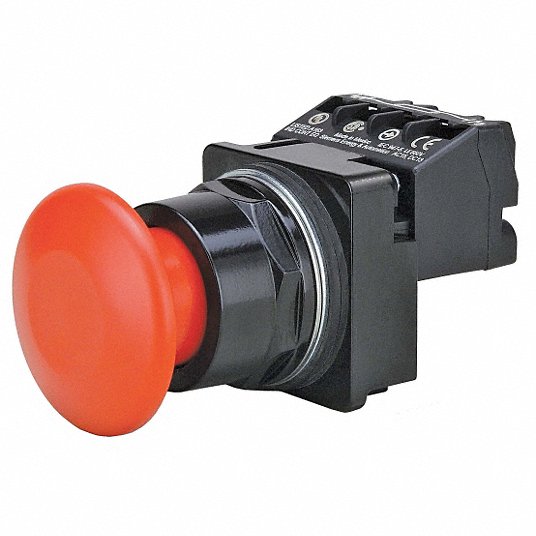

Siemens 52BP2W2 Pushbutton Mtd Red 1 3/4 inches Plast

Product Description

The SIEMENS 52BP2W2 is a pushbutton designed for controlling the starting and stopping of motors using magnetic controllers. Features include hazardous-location push-button operators, large mushroom-shaped heads, and intuitive actuation even with gloves. Ideal as an emergency stop button, it is non-illuminated for distraction-free use.

• Hazardous-location push-button operators
• No lighting elements that could burn out
• Large, mushroom-shaped heads

Product Highlights

This non-illuminated, heavy-duty push-pull operator is ideal for emergency stop applications with easy actuation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52BP2W2
• Country of Origin: Mexico

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 52BP2W2
• Series: 52
• UPC Code: 662643314151
• Action: Maintained
• Bezel Material: Zinc Die Cast
• Hazardous Location Specification: Class I, Div 2, Group A, B, C, D
• Head Material: Plastic
• Head/Lens Color: Red
• IP Rating: IP10; IP11; IP14; IP52; IP54; IP56; IP66
• Maintained Action Release: Push/Pull
• Mushroom Head Diameter: 45 mm
• NEMA Enclosure Rating: 1; 3; 3R; 4; 4X; 12; 13
• Number of Indicator Lights: 0
• Number of Push Buttons: 1
• Operator Illumination: Non-Illuminated
• Operator Material: Plastic
• Panel Mounting Hole Diameter: 30 mm
• Product Type: Push Button
• Operators: Push Button Style
• Head: Mushroom
• Standards: CSA; UL Listed
• UNSPSC: 39122216
• Actuator: Pushbutton
• Applications: Use with magnetic controllers to control the starting, and stopping of motors. Open type devices are designed for mounting in sheet metal enclosures or for mounting on flush plates.
• Operating Cycles: 300k
• Operating Temperature: -35 to +70degrees C (-31 to +158degrees F)
• Size: 30 mm Pilot Device
• Type: Non-Illuminated
• Model: 52BP2W2
• GTIN: 00662643314151
• Country of Origin: Mexico
• Color: Black
• Contact Mode: Maintained
• Enclosure Type: NEMA 4X
• Finish: BlackMax
• Material: Plastic
• Mounting Type: Lock Nut
• Number of Positions: 2
• Operator Type: Push/Pull
• BABA Compliant: No
