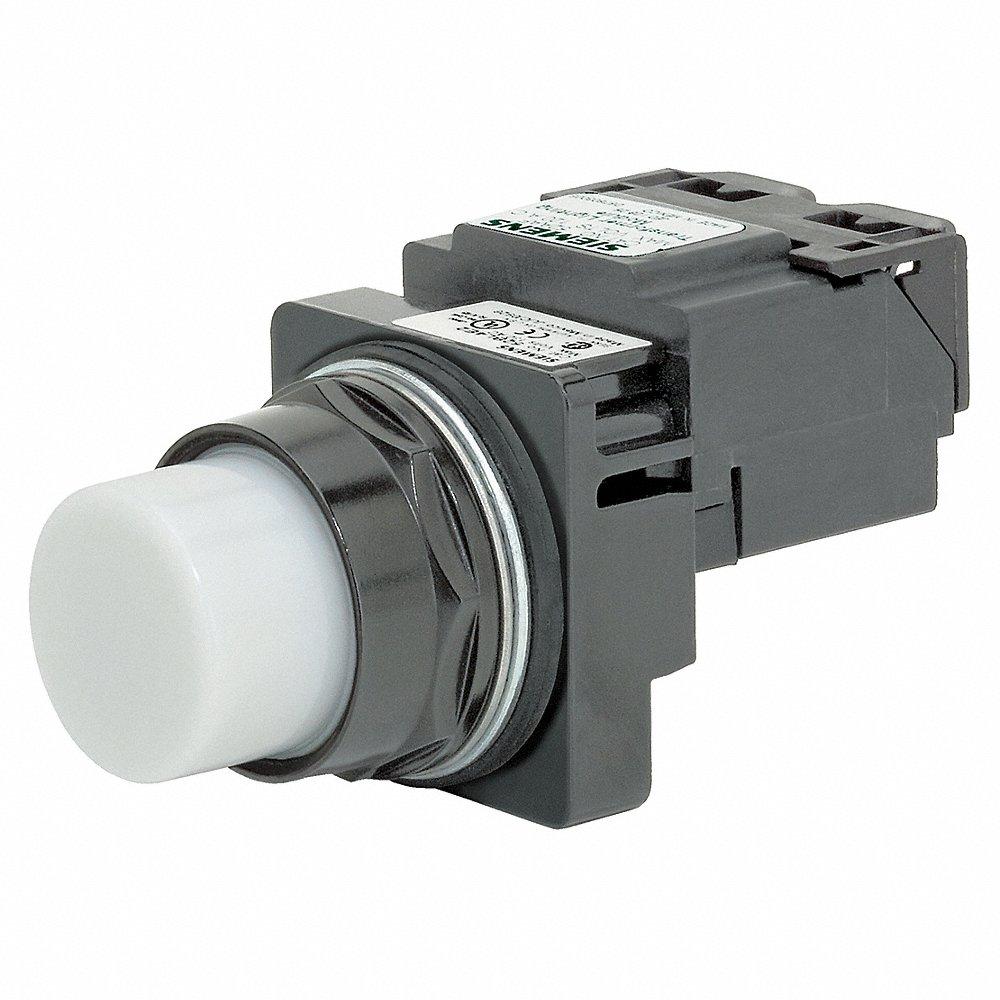

Siemens 52BL4GBXB Pilot Light White LED 30 mm

Product Description

The SIEMENS 52BL4GBXB Pilot Light is a white LED indicator. This OEM pilot light features a transformer lamp module and is designed for panel mounting. It is suitable for various applications requiring clear visual indication. The pilot light meets NEMA 4X standards.

• Includes lamp, lamp module, and operator head
• Features concentric rings lens type
• Constructed with epoxy and epoxy-coated zinc die-cast materials

Product Highlights

The SIEMENS 52BL4GBXB pilot light provides reliable LED indication with a robust construction.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52BL4GBXB
• Country of Origin: Mexico

Technical Specifications

• P/N: 52BL4GBXB
• OEM: Siemens
• OEM #: 52BL4GBXB
• Basic Material: Epoxy
• Body Material: Epoxy Coated Zinc Die Cast
• Color: White
• Country of Origin: Mexico
• IP Rating: 10
• Includes: Lamp, Lamp Module, Operator Head
• Lamp Module Type: Transformer
• Lamp Type: LED
• Lamp Voltage: 6V AC/DC
• Lens Material: Plastic
• Lens Type: Concentric Rings
• NEMA Rating: NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Shape: Round
• Size: 30 mm
• Standards: CSA, UL
• Terminal Connection: Pressure Plate
• Voltage: 120V AC
• Body Color: Black
• Body Finish: Epoxy Coated
• Includes Lamp Module: Lamp Module Included
• Includes Lens: Lens Included
• Includes Push-to-test: No Push To Test Included
• Ip Rating: IP20, IP66
• Lamp Bulb Color: White
• Max Lamp Bulb Voltage: 120V AC
• Max Voltage Rating (supply): 120V
• Overall Depth: 3.49"
• Overall Height: 1.7"
• Overall Width: 1.7"
• Panel Mounting Hole Diameter: 30 mm
• Resistance Properties: Corrosion Resistant
• Series: 52 Series
• Terminal Connection Type: Pressure Plate
