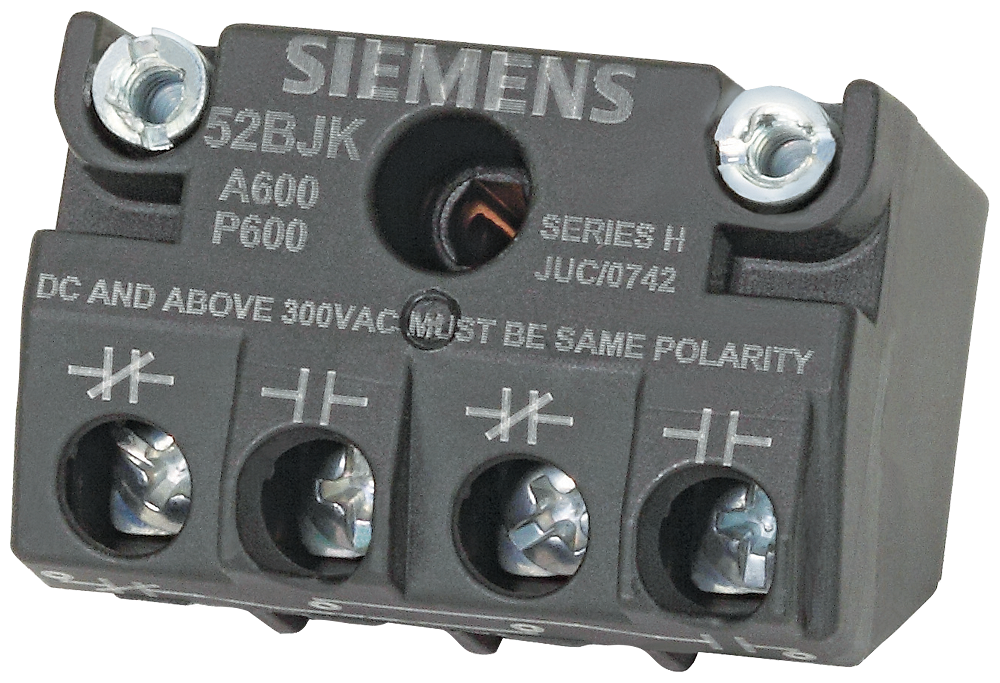

Siemens 52BJK 1NO 1NC Gold Flashed Contact Block

Product Description

The Siemens 52BJK is a contact block designed for use with Class 51 and Class 52 pilot devices. This component features a configuration of one normally open (NO) contact and one normally closed (NC) contact. It meets IEC standard 947-5-1-3, ensuring reliable direct opening functionality. It includes screw terminals for easy installation and is UL listed and CSA certified.

• Contact Configuration: 1 NO, 1 NC
• Rated Voltage: 600 Volt
• Material: Glass-Filled Nylon

Product Highlights

Ideal for applications requiring durable and reliable contact blocks, the Siemens 52BJK is used widely in various industrial settings.

Product Information

Standard Information

• Catalog Number: 52BJK
• Manufacturer: Siemens

Technical Specifications

• Width: 4.2 inches
• Height: 1.15 inches
• Length: 6.4 inches
• Weight: 0.075 lb
• Operating Temperature: -35 to +70 degrees C (-31 to +158 degrees F)
• Contact Rating: 10/5 A at 600 VAC/VDC
• NEMA Rating: NEMA A600/P600
• Mounting Type: Screw, Front
