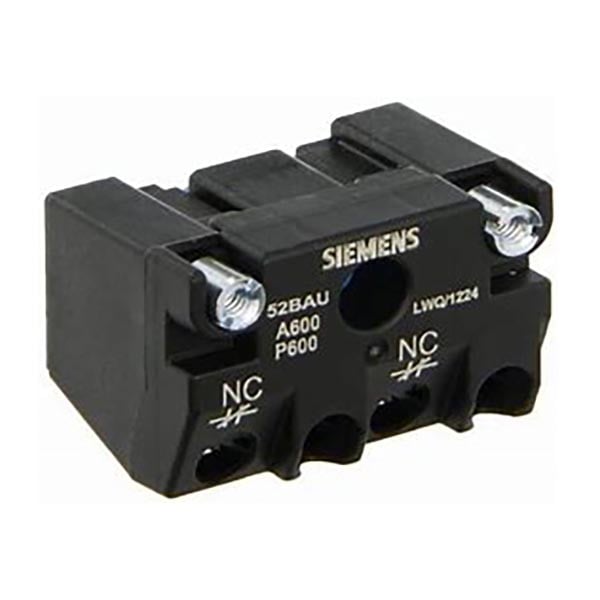

Siemens 52BAU Switch, accy, Contact Block, 1NC

Product Description

The Siemens 52BAU is a contact block designed for use in a variety of applications. Class 52 oiltight pilot controls and accessories are designed to provide long, trouble free service in the most demanding industrial applications. These controls are oil/dust tight and meet Type 3, 4, 4X, 12 and 13 specifications.

• SPST-NC contact form
• Screw terminal termination
• Rated to 600V

Product Highlights

The Siemens 52BAU contact block is a reliable component for industrial control applications, designed for durability and performance in harsh environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52BAU
• Country of Origin: MX

Technical Specifications

• Brand: Siemens
• Contact Form: SPST-NC
• Electrical Rating: 7200 VA(Make), 720 VA(Break), 10 continuous amps, 50/60 Hz
• Manufacturer Part Number: 52BAU
• Series: 52B Series
• Termination: Screw terminal
• UPC Code: 783087093331
• Voltage Rating: 600 V
• Contact Type: 1 NC Extra Late Break
• Manufacturer: Siemens
• Voltage: 600
• Voltage Type: AC
• Frame Type: 52B
• Category: Switches
• Configurable Switch Components: Configurable Switch Contact Blocks
• Circuit: SPST-NC
• Requires: Switch Body
• Termination Style: Screw Terminal
• Part Status: Active
• Action: Momentary
• Alternate Catalog Number: US2:52BAU
• Color: Black
• Contact Configuration: 1NC
• Contact Rating: 10 A AC/5A DC at 600 VAC/VDC
• Contacts: 1
• Country of Origin: MX
• Enclosure Type: IP20/IP40
• EU RoHS Indicator: C
• Height: 1.1000 in
• Length: 7.0000 in
• NEMA Rating: A600/P600
• Operator Type: Momentary
• Size: 30
• Standards: UL ListedCSA Certified
• Terminal Type: Screw
• Type: Heavy Duty Extra Late Break Touch Safe
• UNSPSC: 39122221
• Width: 3.0000 in
• MPN: 52BAU
• Condition: New
