Siemens 52AEEB Led Accessory Lamp 120V (10 mm x 28 mm)

Product Description

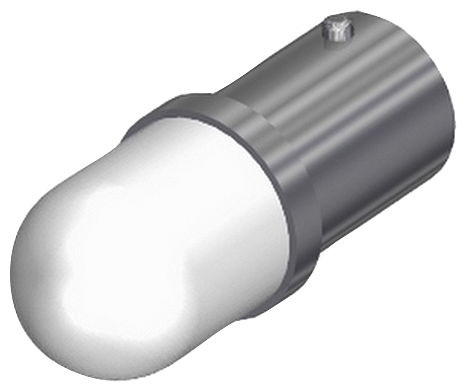

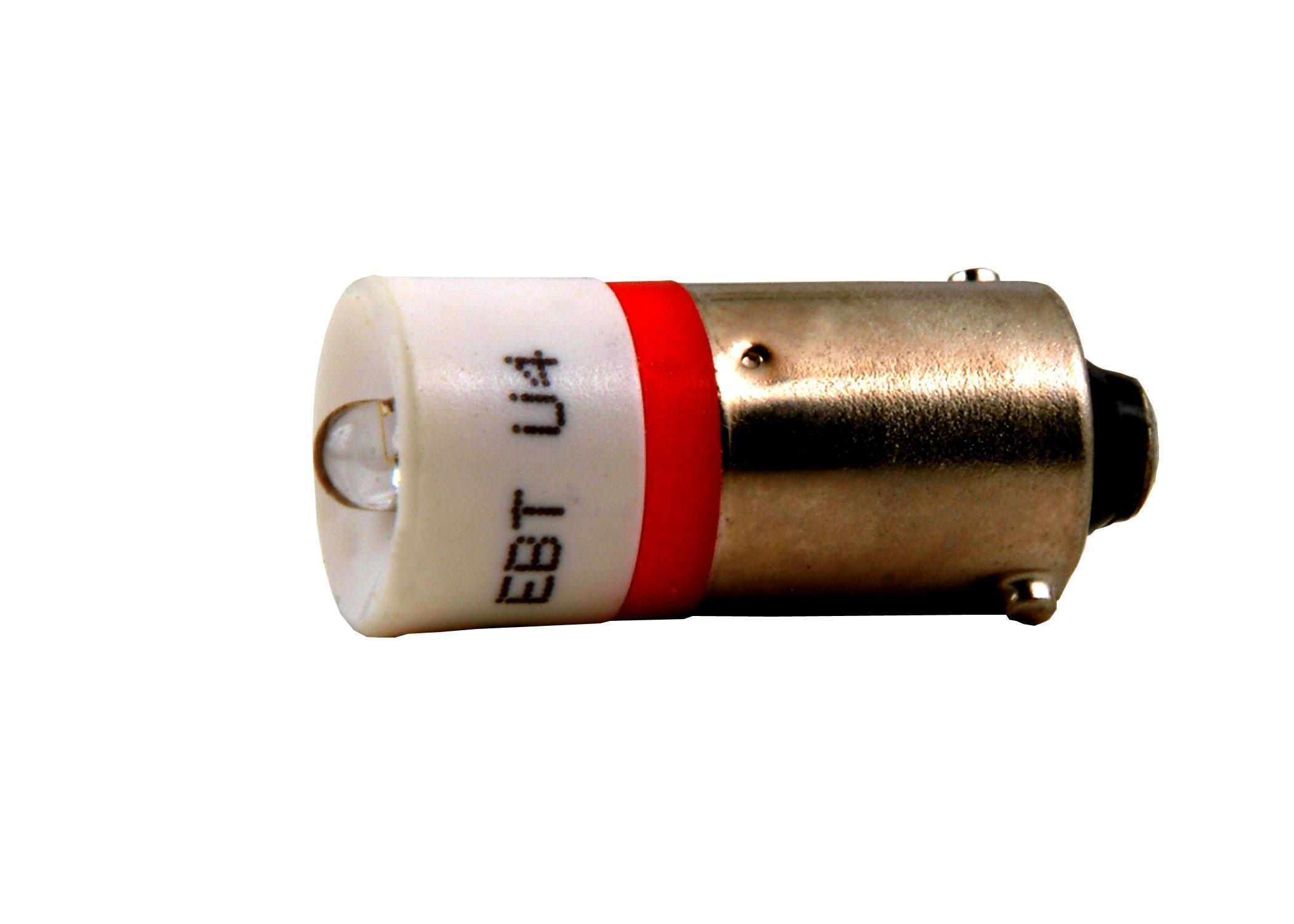

Siemens 52AEEB is a LED accessory lamp rated 120 VAC/VDC with a BA9s miniature bayonet base, designed as a replacement lamp for Command 52 pilot lights. The lamp measures 10 mm diameter by 28 mm length, draws approximately 15 mA and weighs approximately 0.010 lb. It has a T-3 1/4 (T1.75) shape and an average life of about 25,000 hours for pilot light indication in Class 52 and compatible Class 51 devices.

• BA9s miniature bayonet base; 120 VAC/VDC operation
• Dimensions: 10 mm diameter x 28 mm length (0.394 in x 1.102 in); T-3 1/4 (T1.75) shape; weight ~0.010 lb
• Current draw approximately 15 mA (typical for LED pilot lamps); average life approximately 25,000 hours

Product Highlights

Replacement LED lamp for Siemens Command 52 pilot lights; BA9s base; 120 VAC/VDC; 10 mm x 28 mm (0.394 in x 1.102 in); ~25,000 hour life

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52AEEB
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 52AEEB
• Series: Command 52
• Voltage Rating: 120 VAC/VDC
• Current Draw: ≈15 mA (typical LED pilot lamp) - corrected from 15 Amp
• Lamp Type: LED
• Lamp Base: BA9s (miniature bayonet)
• Shape: T-3 1/4 (T1.75)
• Dimensions: 10 mm diameter x 28 mm length (0.394 in dia x 1.102 in length)
• Diameter: 10 mm
• Length: 28 mm
• Weight: 0.010 lb
• Average Life: 25000 hr
• Application: For Class 52 pilot lights (Command52 series); compatible with Class 51 devices
• Country of Origin: Mexico
• GTIN: 00783087236493
• UPC: 783087236493
• Sub Brand: Command52
• Package Quantity: 1
• Certifications: RoHS Compliant; ARRA Compliant; Buy American Act Compliant
• UNSPSC: 39112102
