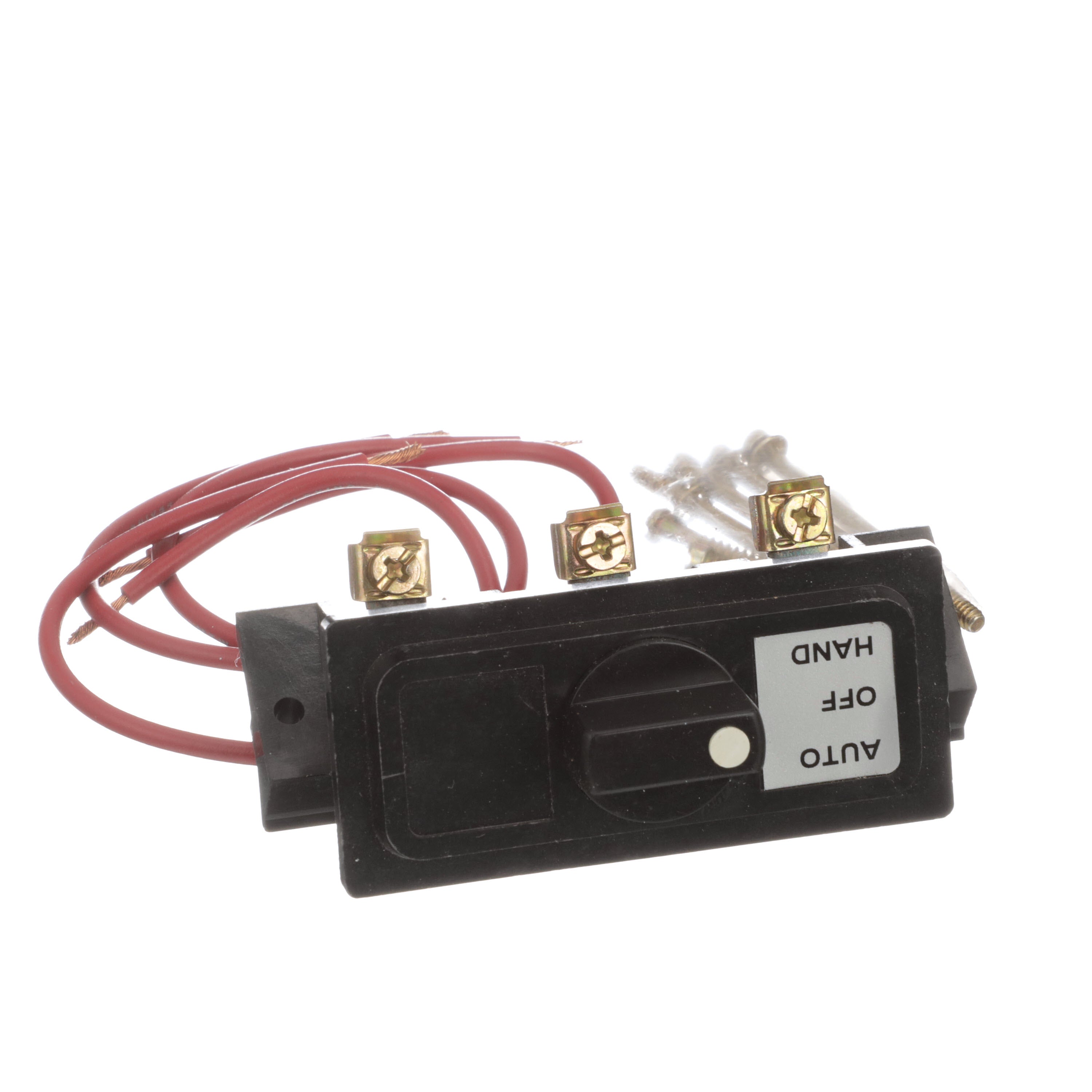

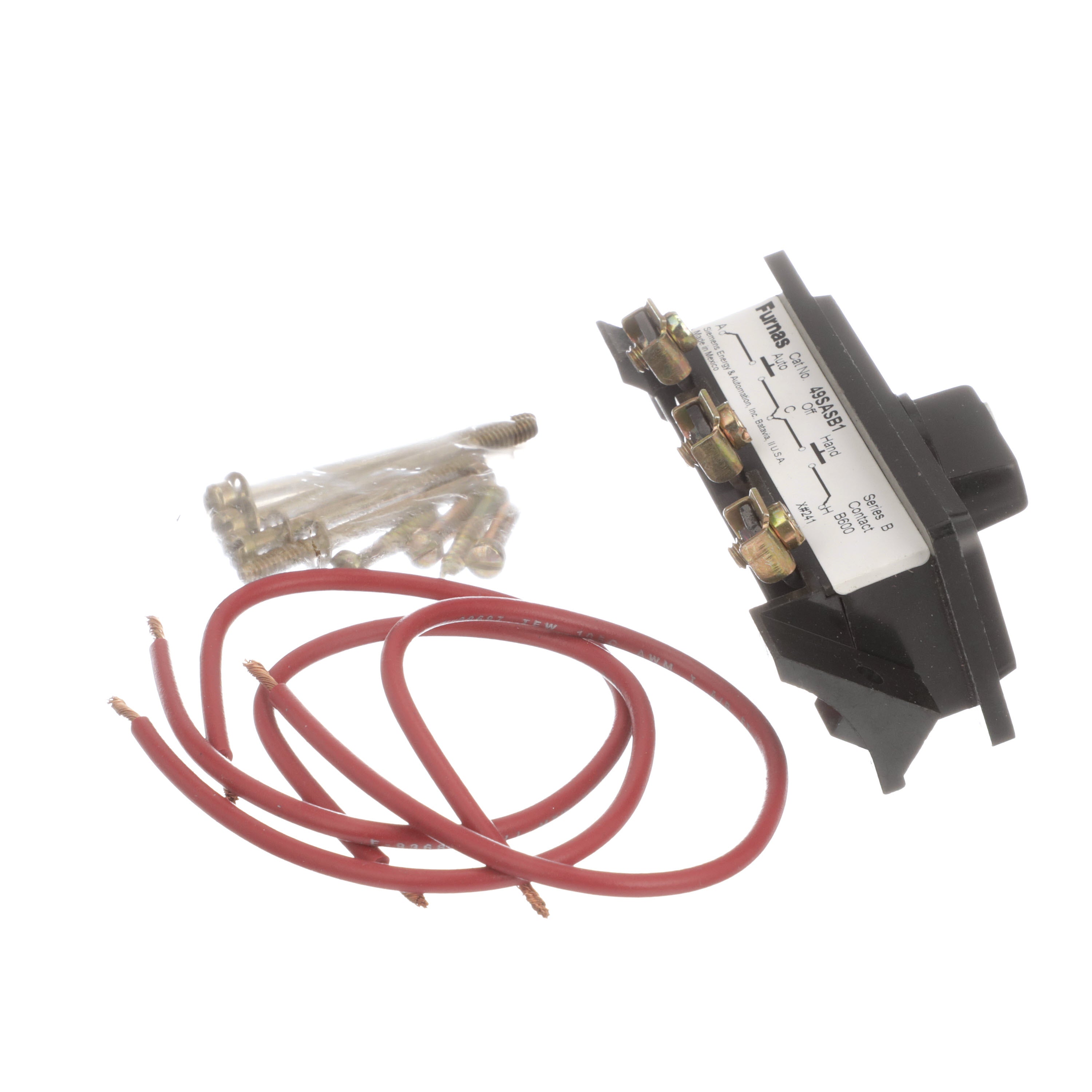

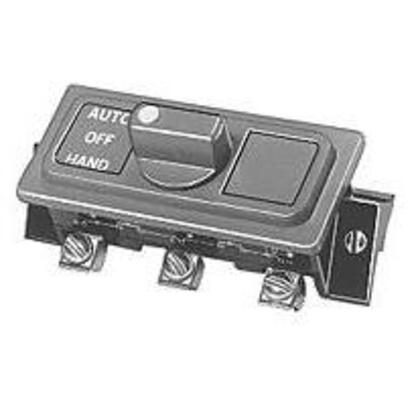

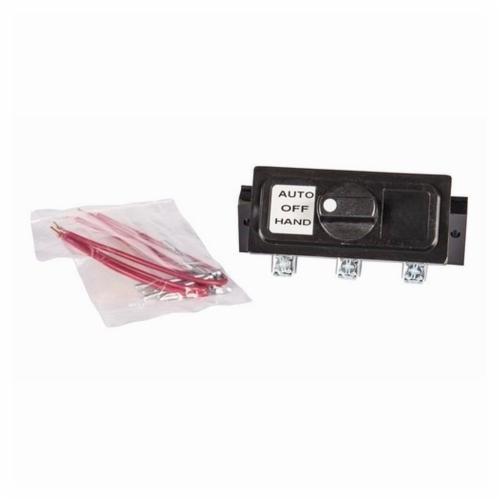

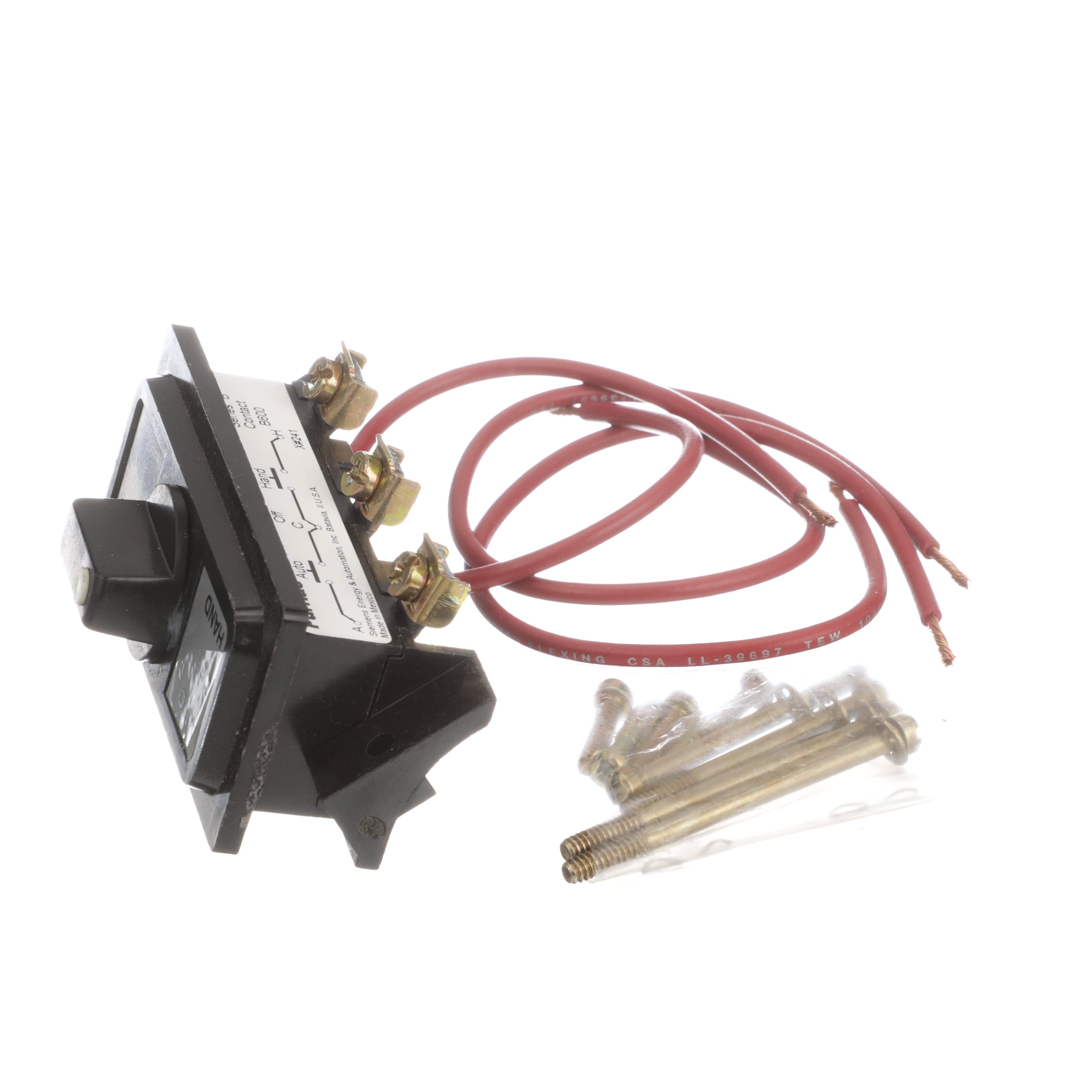

Siemens 49SASB1 Selector Switch "A3 inches Auto 3 x 1.5 x 1.75 in.

Product Description

The SIEMENS 49SASB1 selector switch is a Class 49 NEMA accessory designed for motor control applications. It features a HAND-OFF-AUTO legend and is designed for use with NEMA class 14/40/LC/LEN/CLM enclosures and open-type enclosures. The switch includes a bracket for mounting.

• Designed for motor control applications
• Includes bracket for mounting
• Operating temperature range of -35 to 70 degrees C

Product Highlights

This Siemens selector switch is ideal for motor control and NEMA enclosed starters, offering reliable performance in a compact size.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 49SASB1
• Country of Origin: MEX

Technical Specifications

• Type: Selector Switch
• Brand: Siemens
• Standard: CSA,UL
• Sub Brand: Class 49 NEMA Accessory
• Applications: Motor Controls
• Mounting Type: Bracket (included)
• Operating Temperature: (-35 to 70)degrees C / 31 to 158)degrees F
• Size: 3 x 1.5 x 1.75 in.
• Country Of Origin: MEX
• Legend: HAND-OFF-AUTO
• NEMA Size: 0-3-1/2
• Enclosure Type: NEMA 1
• Application: Motor Control Applications
• Includes: Bracket
• IP/NEMA Rating: NEMA 1, NEMA 3R, NEMA 4X, NEMA 12, NEMA 4
• Catalog Number: 49SASB1
• Country of Origin: MX
• Height: 4.7500 in
• Length: 2.3500 in
• Manufacturer: Siemens
• Mounting: Bracket (included)
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL Listed
• Voltage Rating: NEMA A600/P600
