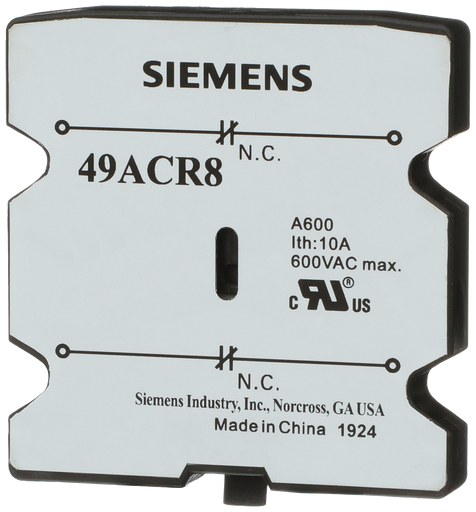

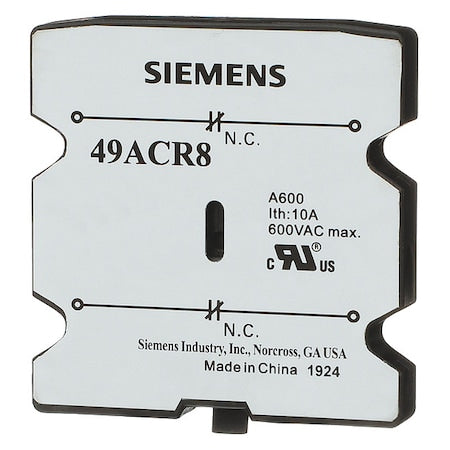

Siemens 49ACR8 Aux Switch DP, 2NC, 30-60

Product Description

The Siemens 49ACR8 is an auxiliary switch DP with 2NC contacts designed for 30-60amp applications. This auxiliary switch is suitable for use with 16-60FLA, 42AF, 42BF, 42CF and 42DF frame sizes of Furnas Class 42 definite purpose contactors. It features side mounting and a maximum of 2 contact blocks.

• Auxiliary switch with 2NC contacts
• Amperage rating of 30 to 60 A
• Suitable for use with Furnas Class 42 definite purpose contactors

Product Highlights

The Siemens 49ACR8 auxiliary switch is designed for 30-60A applications and features 2NC contacts and side mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 49ACR8
• Country of Origin: China

Technical Specifications

• Amps: 30 to 60 A
• Number of NC Aux. Contacts: 2
• Number of NO Aux. Contacts: 0
• Number of Contacts: 2
• Max. Contact Blocks (No.): 2
• Brand: Siemens
• Product UPC: 78308713815
• Height: 2.85 Inch
• Length: 3 Inch
• Width: 1.000 in
• Country of Origin: China
• Product Type: Auxiliary Switch
• Maximum Contact Block: 2
• Suitable For Use With: 16-60FLA, 42AF, 42BF, 42CF and 42DF Frame Sizes of Furnas Class 42 Definite Purpose Contactors
• Voltage Rating: 600 V AC
• Mounting Type: Side
• Amperage Rating: 30 to 60 A
• BABA Compliant: No
• UNSPSC: 39121521
• Country of Origin (subject to change): Mexico
