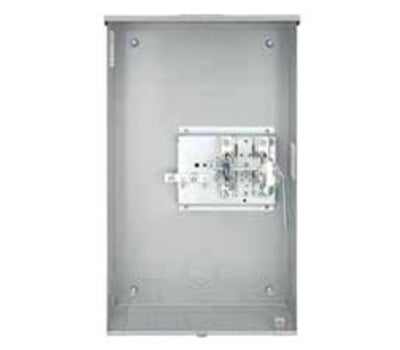

SIEMENS 49604-02NU TALON 320A Meter Socket

Product Description

The SIEMENS 49604-02NU TALON meter socket is suitable for commercial applications with a single-phase, 600V AC electrical system. It has a current rating of 320 amps and features a ringless cover design. This unit is made from steel and is designed for easy surface mounting. It is capable of supporting both overhead and underground feed types, utilizing an offset configuration. The meter socket is equipped with four jaws and includes a convenient lever bypass feature. This unit comes with four terminals and a 3/8 inch stud lug.

• Rated for 320 amps and 600V AC.
• Features a lever bypass and a ringless cover.
• Designed for both overhead and underground feed configurations.

Product Highlights

This meter socket is designed for reliable performance in commercial environments, ensuring the safety and efficiency of electrical systems.

Product Information

Standard Information

• Brand: SIEMENS
• MPN: 49604-02NU

Technical Specifications

• Current Rating: 320 amp
• Number Of Jaws: 4
• Height: 6.1 inches
• Bypass Type: Lever
• Mounting Type: Surface
• Feed Type: Overhead/Underground-Offset
• Features: 3/8 inch Stud Lug Type
• Number Of Phases: 1
• Specifications Met: UL Listed
• Width: 20 inches
• Voltage Rating: 600 V AC
• Length: 34 inches
• Meter Socket Type: Ringless
• Phase: 1
• Application: Commercial Applications
• Type: 1-Position Type HQSW4/5 Offset
• Cover Type: Ringless
• Dimensions: 34 inches H x 20 inches W x 6 inches D
• Net Weight: 28.065 pounds
• Number of Pieces: 1
• Commodities Code: 8537109170
