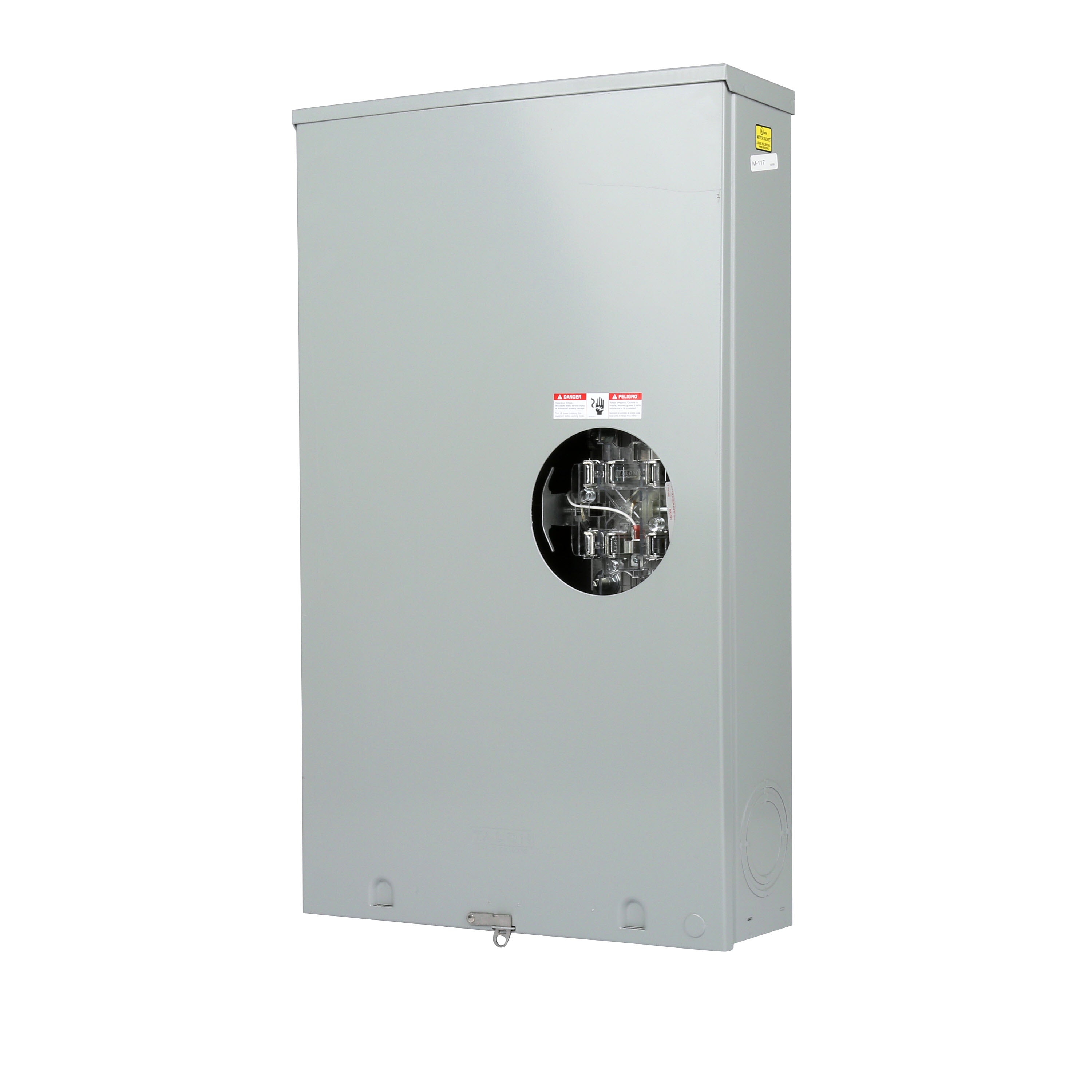

Siemens 48707-02 TALON 9-Cutout 1-Position Type HQSW Continuous Duty Meter Socket With Lever Bypass, Coverplate and 7/8 in Barrel Lock Knockout

Product Description

The Siemens meter socket, model number 48707-02, is designed for continuous duty operations. It has a 9-cutout configuration and supports up to 320 amps with a voltage rating of 600 VAC. This meter socket features an offset design that simplifies the wiring process.

• Constructed from 14 gauge galvannealed steel
• Utilizes plated copper current paths
• Includes a track-resistant safety shield

Product Highlights

This product is suitable for both overhead and underground feed types, providing versatility in installation.

Product Information

Standard Information

• Brand: Siemens
• Part #: Q4271

Technical Specifications

• Amperage Rating: 320 A
• Cover Type: Ringless
• Dimensions: 37 in H x 21 in W x 7 in D
• Enclosure Type: NEMA 3R
• Feed Type: Overhead/Underground
• Frequency Rating: 50/60 Hz
• Hub Size: 4.281 in
• Hub Type: HD Coverplate
• Mounting Type: Surface
• Number of Jaws: 7
• Phase: 3
• Type: 9-Cutout 1-Position Type HQSW Continuous Duty
• Voltage Rating: 600 VAC
