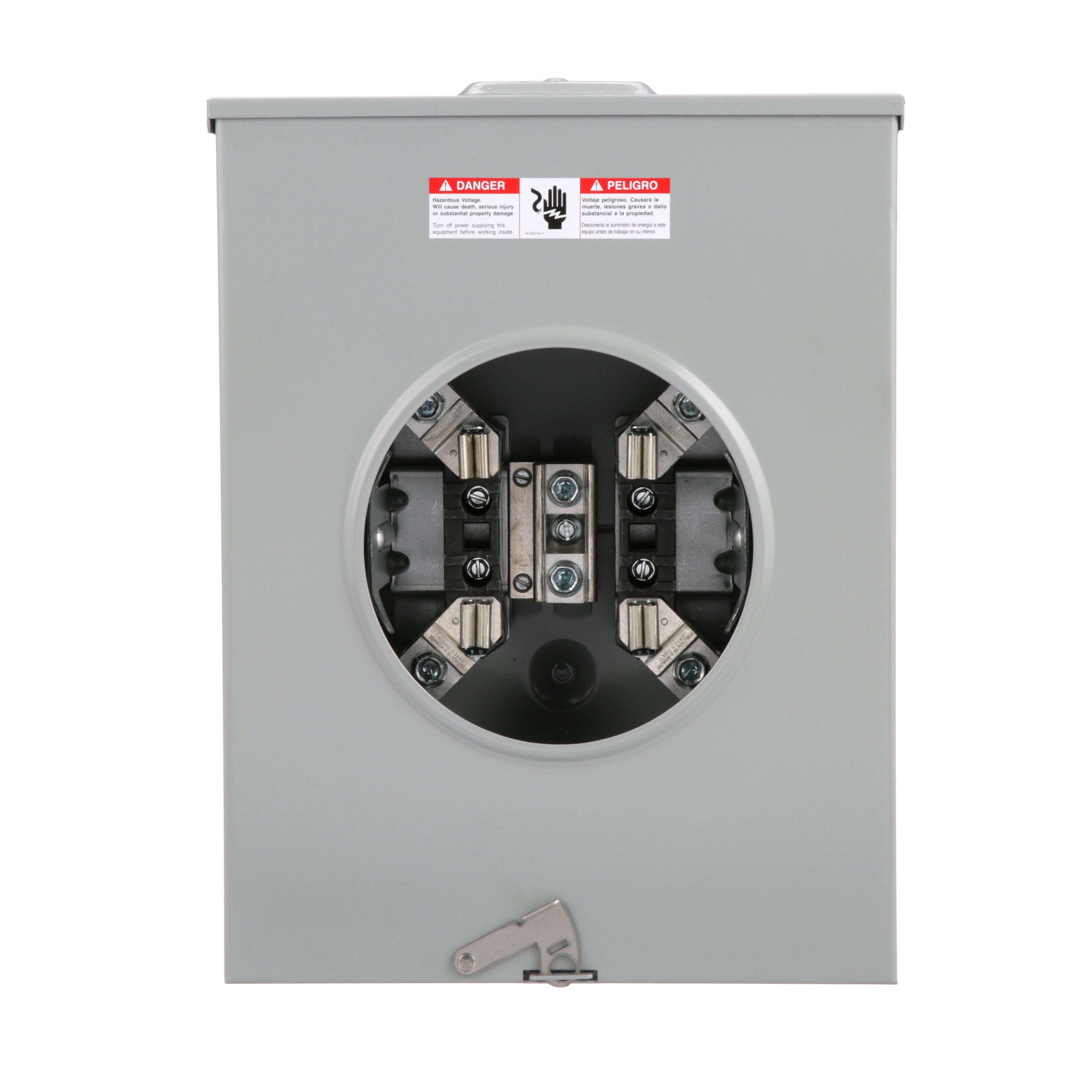

Siemens 40405-025 Single Position Meter Socket With Lever Bypass 600 VAC 200 A NEMA 3R Enclosure

Product Description

The Siemens 40405-025 single position meter socket features a lever bypass, 600 VAC, 200 A, 1 phase, and a NEMA 3R enclosure. Suitable for commercial and industrial applications, this meter socket is designed for overhead/underground applications. It features a ringless cover, a factory-installed hub cover plate, and a stainless-steel latch and hasp.

• Single Position Meter Socket with Lever Bypass
• Rated for 600 VAC and 200 A
• NEMA 3R enclosure for outdoor use

Product Highlights

This Siemens meter socket provides a reliable solution for residential and commercial metering applications. Designed for durability and ease of installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 40405-025
• Country of Origin: MX

Technical Specifications

• Phase: 1
• Hub Type: RX CL
• Cover Type: Ringless
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Wire Size: 6 AWG to 350 kcmil
• Number of Jaws: 5
• Feed Type: Overhead/Underground
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Vendor SKU: 40405-025
• UNSPSC: 39121102
• Standard & Approvals: UL Listed
• Application: Commercial and Industrial Applications
• Manufacturer: Siemens
• Brand: Siemens
• Catalog ID: SIE40405025
• Number of Phases: Single-phase
• Number of Gangs: 1
• Service Type: Overhead/underground
• Ringless Design: Bypass Switch
• Weather Resistance: NEMA 3R outdoor protection
• Designed for: Overhead/Underground applications
• Hub Opening: RX-type Hub Opening with Cover Plate Installed (hubs sold separately)
• Amperage: 200A continuous, 250A maximum rated
• Wire: 3-wire
• Voltage: 600V
• 5th terminal: installed at 9:00 o'clock position
• Ground lug: Includes one ground lug #14 - 2/0 AWG

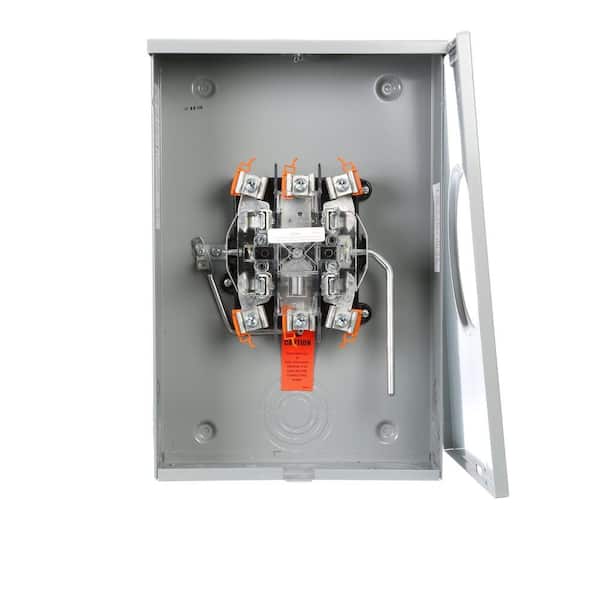

• Lever bypass: 100% rated lever bypass w/clamping action on meter
• Enclosure: Steel
• Mounting: SURFACE MOUNTING
• Special Features: W/ LEVER BYPASS
• Standard: UL
• Type: HQU
