Siemens 3VA9673-0JB32 Low Voltage 3Va Circuit Breaker Accessory 400Kcmil

Product Description

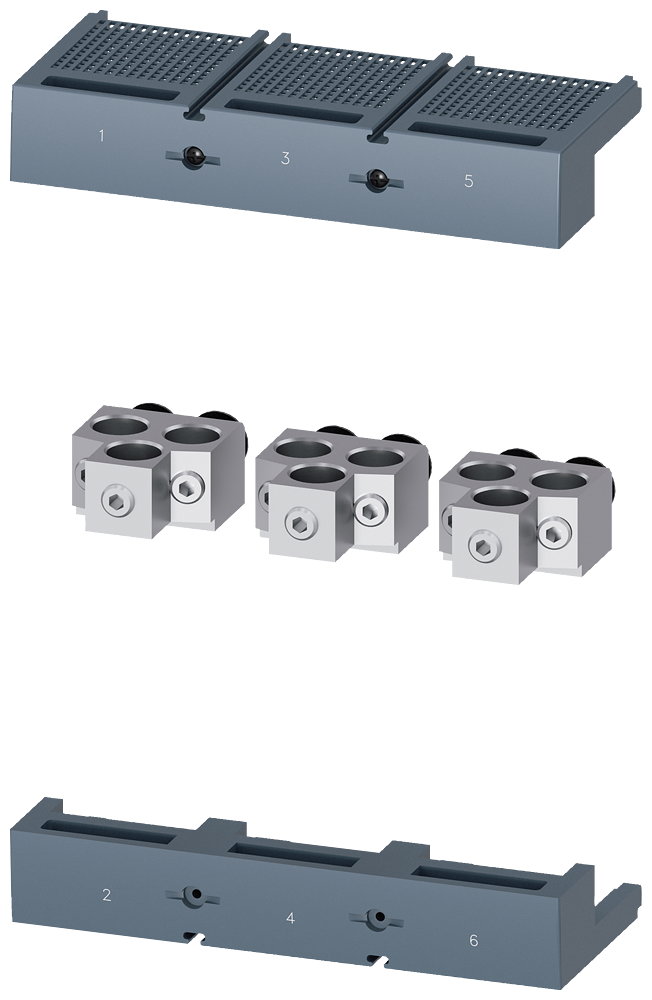

The SIEMENS 3VA9673-0JB32 is a low voltage 3VA circuit breaker accessory. It features a 3-piece aluminum body 3-conductor lug terminal designed for wire size 400KCMIL. It is designed for (800A 3VA5) and (800-1000A 3VA6) frame UL circuit breakers.

• Aluminum body 3-conductor lug terminal
• Wire size: 400KCMIL
• Suitable for 3VA5 800 A, 3VA6 800 to 1000 A UL Frame Circuit Breakers

Product Highlights

This Siemens lug terminal ensures reliable and efficient connectivity for low voltage circuit breakers. It supports (3) 4/0 AWG to 400 kcmil conductors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA9673-0JB32
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 3VA9673-0JB32
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Mexico
• Made in USA: No
• UPC: 195125030787
• GTIN: 00195125030787
• Material: Aluminum
• Suitable For Use With: 3VA5 800 A, 3VA6 800 to 1000 A UL Frame Circuit Breakers
• Type: 3-Piece
• Conductor Range: (3) 4/0 AWG to 400 kcmil
• Length: 8.26 in
• UNSPSC: 39121601
• Standard & Approvals: CE Certified|EAC Certified|ECCN:EAR99|Lloyd's Register|RCM Approved|REACH Article 33|UL Listed|WEEE 2012/19/EU
• Series: 3VA
• Approval: UL, IEC
• Wire Gauge: 4/0 to 400KCmil
• For Use With: 3VA55, 3VA65, 3VA66 Circuit Breakers
• Part Number: 3VA9673-0JB32
• Family: Sentron
• MPN: 3VA9673-0JB32
