Siemens 3VA9474-0JJ23 Breaker 3VA5,6 40

Product Description

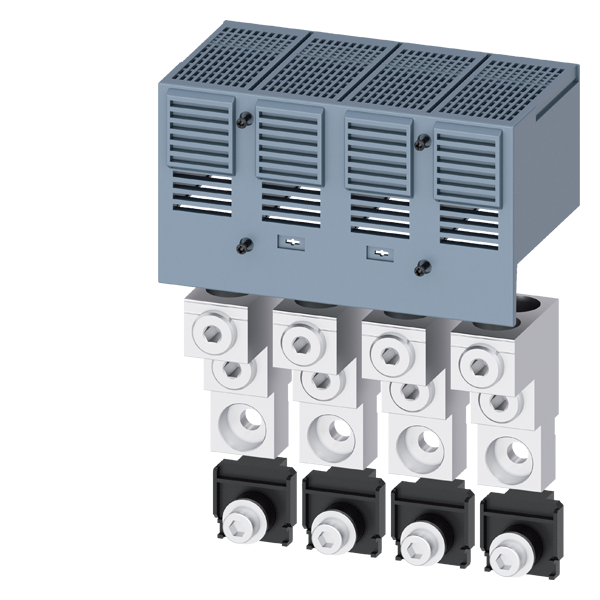

The Siemens 3VA9474-0JJ23 is a large wire connector for 3VA63 at 400A and 3VA64 at 600A breakers. It features a 4-pole, two-wire connection with an aluminum connection for CU AL cables. This connector includes four single terminals and one extended terminal cover, ensuring secure and reliable electrical connections.

• 4-Pole 2-Cable Wire Connector
• Conductor Size: 2/0 AWG to 600 kcmil
• Compatible with 3VA63 Molded Case Circuit Breaker at 400 A and 3VA64 at 600 A

Product Highlights

Designed for robust performance and optimal conductivity in electrical systems, ensuring safety and reliability.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA9474-0JJ23
• Country of Origin: China

Technical Specifications

• Number of Poles: 4 Pole
• TC Connection: TWO WIRES
• Type: 4-Pole 2-Cable
• Brand: SIEMENS
• Sub Brand: Molded Case Circuit Breakers
• Manufacturer Part Number: 3VA9474-0JJ23
• Material: Aluminum/Copper
• Includes: (4) Single Terminal, Extended Terminal Cover
• Suitable For Use With: 3VA63 at 400 A, 3VA64 at 600 A Molded Case Circuit Breaker
• Product UPC: 80476632585
