Siemens 3VA9473-0JJ23 Breaker 3VA5,6 40

Product Description

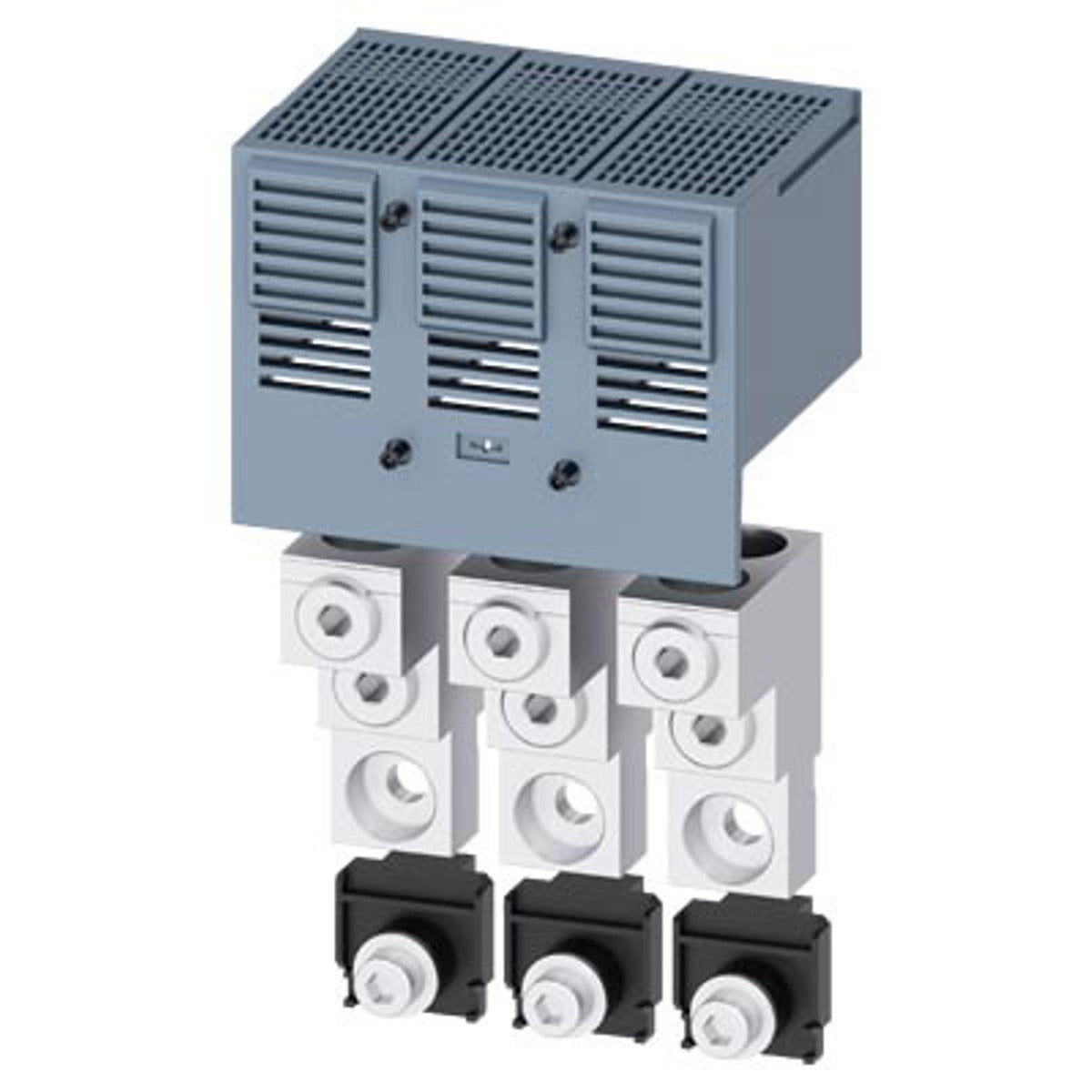

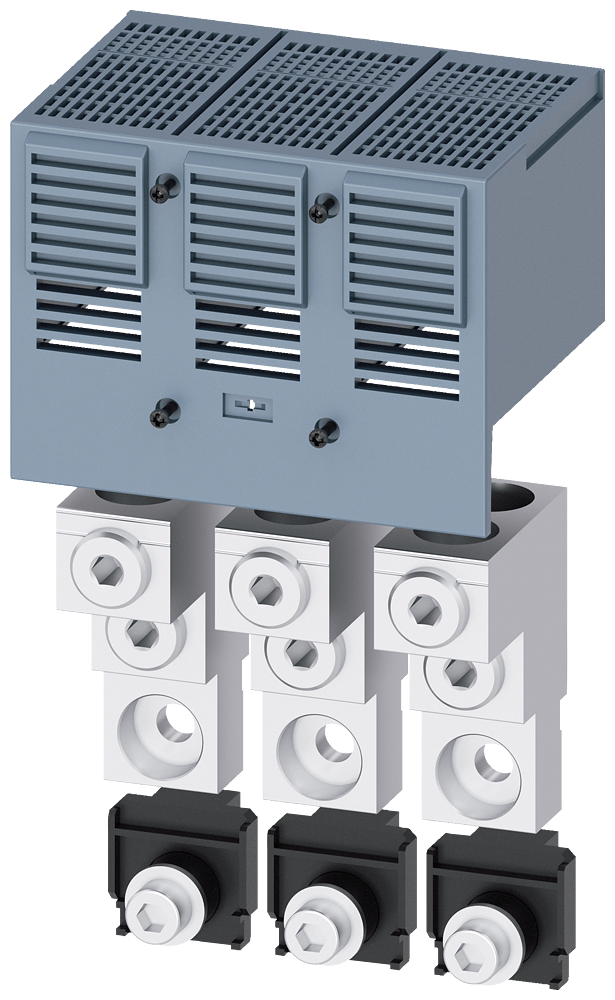

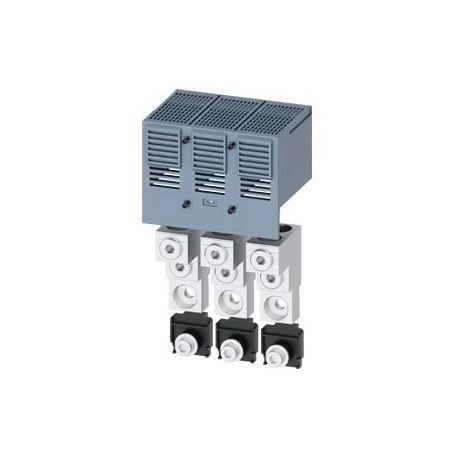

The Siemens 3VA9473-0JJ23 is a wire connector unit designed for circuit breakers. This 3-pole, 2-cable connector is suitable for use with 3VA63 at 400 A and 3VA64 at 600 A molded case circuit breakers. It accommodates a conductor range of 2/0 AWG to 600 kcmil.

• Designed for use with 3VA63 at 400 A and 3VA64 at 600 A molded case circuit breakers
• Supports conductor range of 2/0 AWG to 600 kcmil
• Includes (3) single terminals and extended terminal cover

Product Highlights

Wire connector unit for circuit breakers, supporting 2/0 AWG to 600 kcmil conductors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA9473-0JJ23
• Country of Origin: USA

Technical Specifications

• GTiN: 00804766325847
• Brand: Siemens
• Width: 4.060 in
• Height: 4.17 Inch
• Length: 5.71 Inch
• Sub Brand: 3VA
• Product UPC: 80476632584
• 12-Digit UPC: 804766325847
• Number of Poles: 3
• Catalog Number: 3VA9473-0JJ23
• Manufacturer: Siemens
• Country of Origin: United States
• Made in USA: Yes
• Standard: UL
• UPC: 804766325847
• Country Of Origin: USA
• Suitable For Use With: 3VA63 at 400 A, 3VA64 at 600 A Molded Case Circuit Breaker
• Conductor Range: 2/0 AWG to 600 kcmil
• Material: Aluminum/Copper
• UNSPSC: 39121601
• Standard & Approvals: UL Listed|CE Certified|CSA Certified|EAC Approved
• Includes: (3) Single Terminal, Extended Terminal Cover
