Siemens 3VA9243-0JJ22 Large Wire Connector 250 A (3 Pole)

Product Description

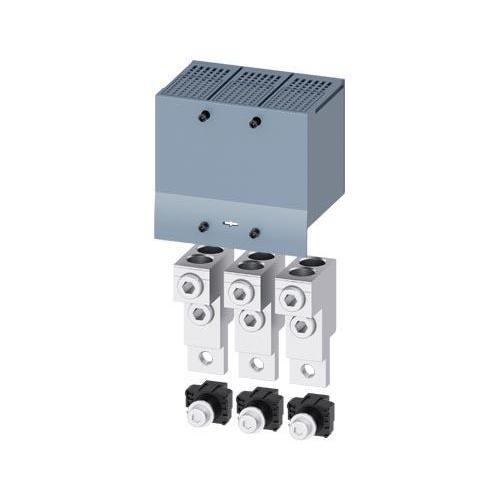

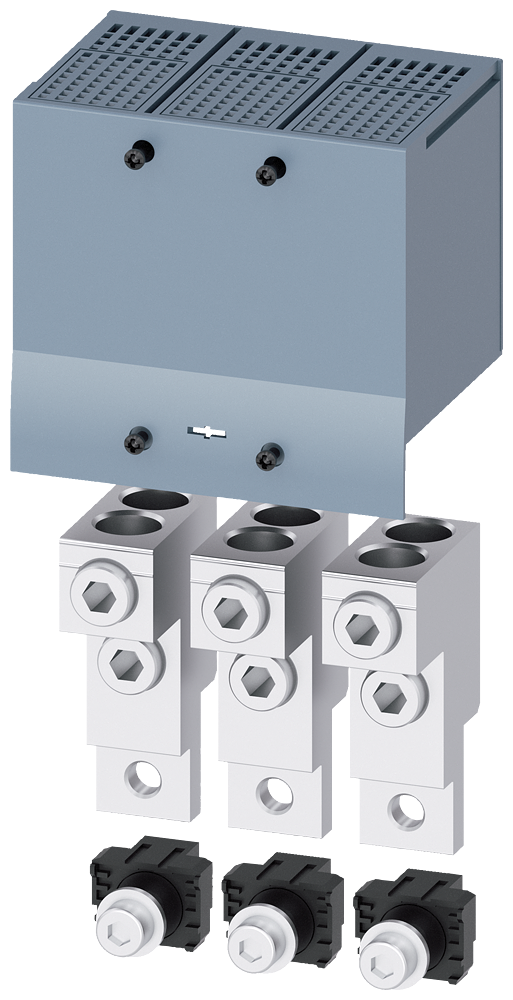

Siemens 3VA9243-0JJ22 is a large wire connector accessory for the 3VA series, designed for use with 3VA61 (125 A) and 3VA62 (250 A) molded case circuit breakers. It provides a three-pole, two-wire (TC) aluminum connection compatible with copper and aluminum conductors, includes three single terminals, one extended terminal and a cover, and supports conductors up to 300 kcmil. Dimensions are approximately 4.33 x 4.09 x 3.43 inches and weight 1.17 lb.

• Three-pole, two-wire (TC) connector compatible with 3VA61 (125 A) and 3VA62 (250 A) breakers
• Aluminum connection for copper/aluminum conductors; supports 4 AWG to 300 kcmil
• Includes three single terminals, one extended terminal and a cover; UL listed

Product Highlights

Large 3-pole connector for Siemens 3VA breakers; supports up to 300 kcmil conductors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA9243-0JJ22
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3VA9243-0JJ22
• Type: Wire connector / Breaker accessory
• Series: 3VA (3VA61 / 3VA62)
• Number of Poles: 3 Pole
• Connection Type: Two-wire (TC) connection
• Compatible With: 3VA61 at 125 A; 3VA62 at 250 A molded case circuit breakers
• Current Rating: 250 A
• Conductor Range: 4 AWG to 300 kcmil
• Material: Aluminum connection (compatible with copper/aluminum cable)
• Includes: Three single terminals, one extended terminal, cover
• Dimensions (L x W x H): 4.33 in x 4.09 in x 3.43 in
• Weight: 1.17 lb
• Product UPC: 80476632658
• 12-Digit UPC: 804766326585
• GTIN: 00804766326585
• Certifications: UL
• Country of Origin: USA
