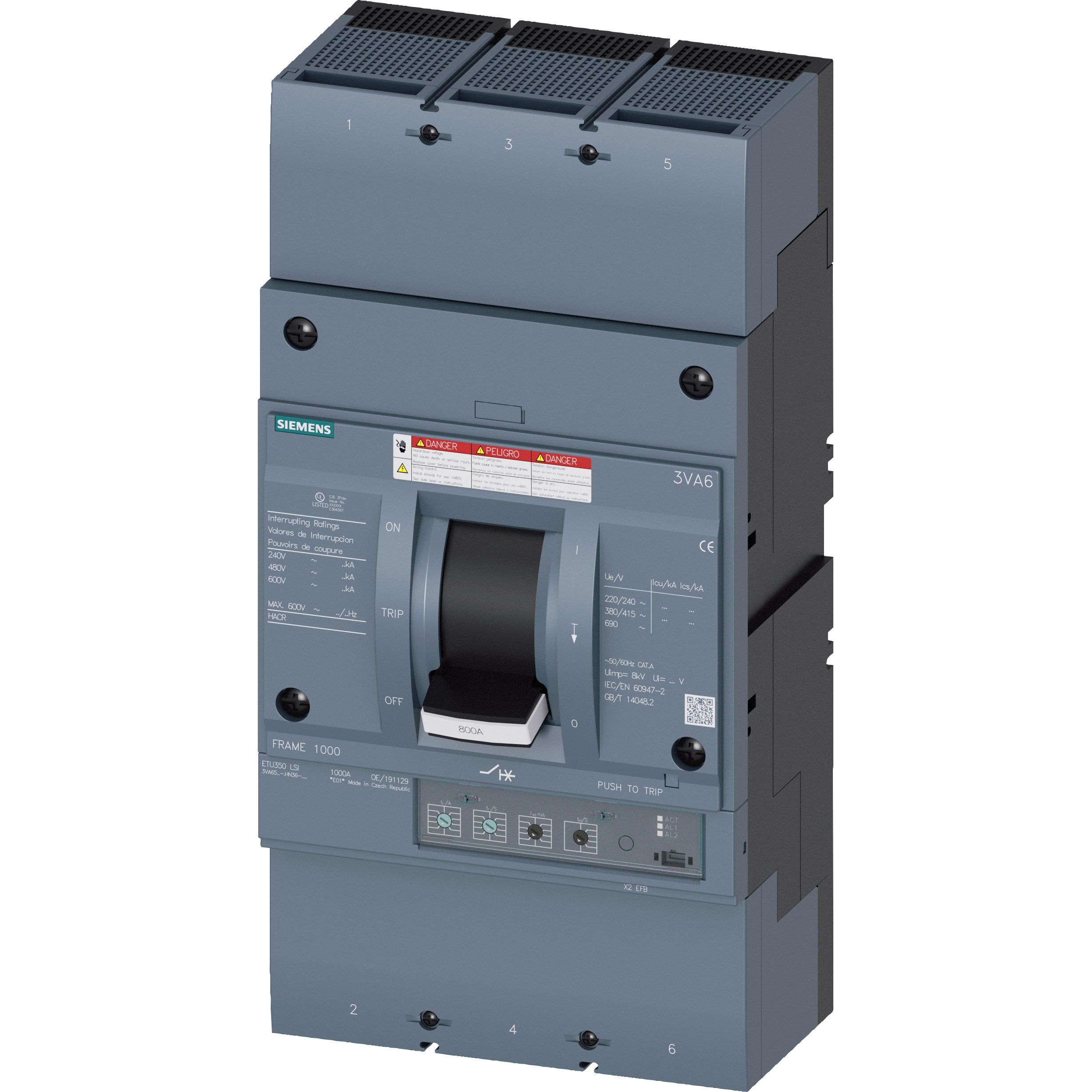

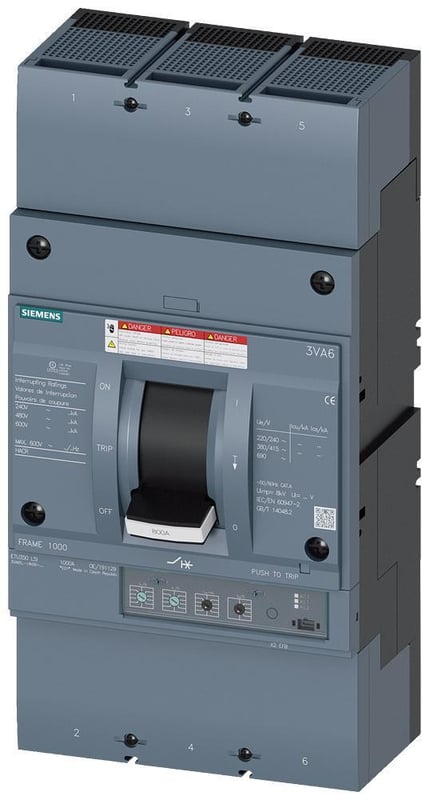

Siemens 3VA6580-5HN36-0AA0 Breaker 3VA65 3P 800 A (ETU350-LSI)

Product Description

Siemens 3VA6580-5HN36-0AA0 is a low-voltage molded case circuit breaker with an ETU350 electronic trip unit (LSI) in a 3VA65 frame. It provides three-pole overcurrent and short-circuit protection with an 800 A rating and medium low (Class M) breaking capacity. Typical applications include industrial and commercial low-voltage power distribution and motor protection at 480/600 V systems.

• 3-pole UL molded case breaker, 3VA65 frame, 800 A rating with ETU350 electronic trip unit (LSI)
• Breaking capacity: Class M — 35 kA at 480 V; 18 kA at 600 V; frequency rating 50/60 Hz
• Line and load lug terminals installed; enclosure IP40; dimensions 8.3 x 12.5 x 5.8 inches; operating temperature -25 to 70 °C

Product Highlights

3-pole 800 A molded case breaker with ETU350 LSI trip, Class M breaking capacity (35 kA @ 480 V), lug terminals, IP40 enclosure

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA6580-5HN36-0AA0
• Country of Origin: Czechia

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3VA6580-5HN36-0AA0
• Series: SENTRON
• Frame: 3VA65
• Trip Unit: ETU350 (LSI)
• Poles: 3
• Current Rating: 800 A
• Voltage Rating: 480/600 V
• Frequency Rating: 50/60 Hz
• Breaking Capacity / Short-circuit Rating: Medium low (Class M); 35 kA at 480 V; 18 kA at 600 V
• Enclosure Rating: IP40
• Operating Temperature: -25 to 70 °C
• Dimensions (W x H x D): 8.3 x 12.5 x 5.8 inches
• Terminal Connection: Line and load lugs installed (lug terminals)
• Overload Protection: Adjustable Ir (specification per ETU350 settings)
• Country of Origin: Czechia
• GTIN / UPC: 00195125190993 / 195125190993
• Type: UL molded case circuit breaker
