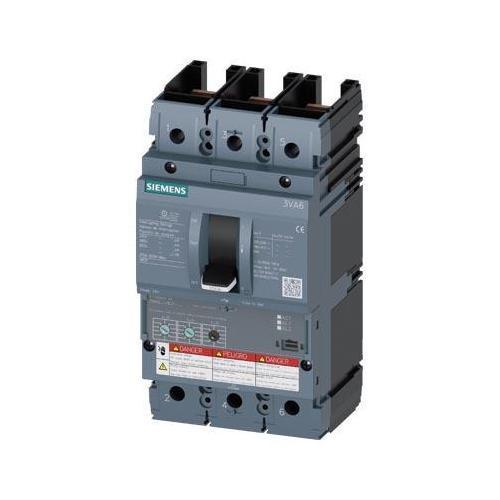

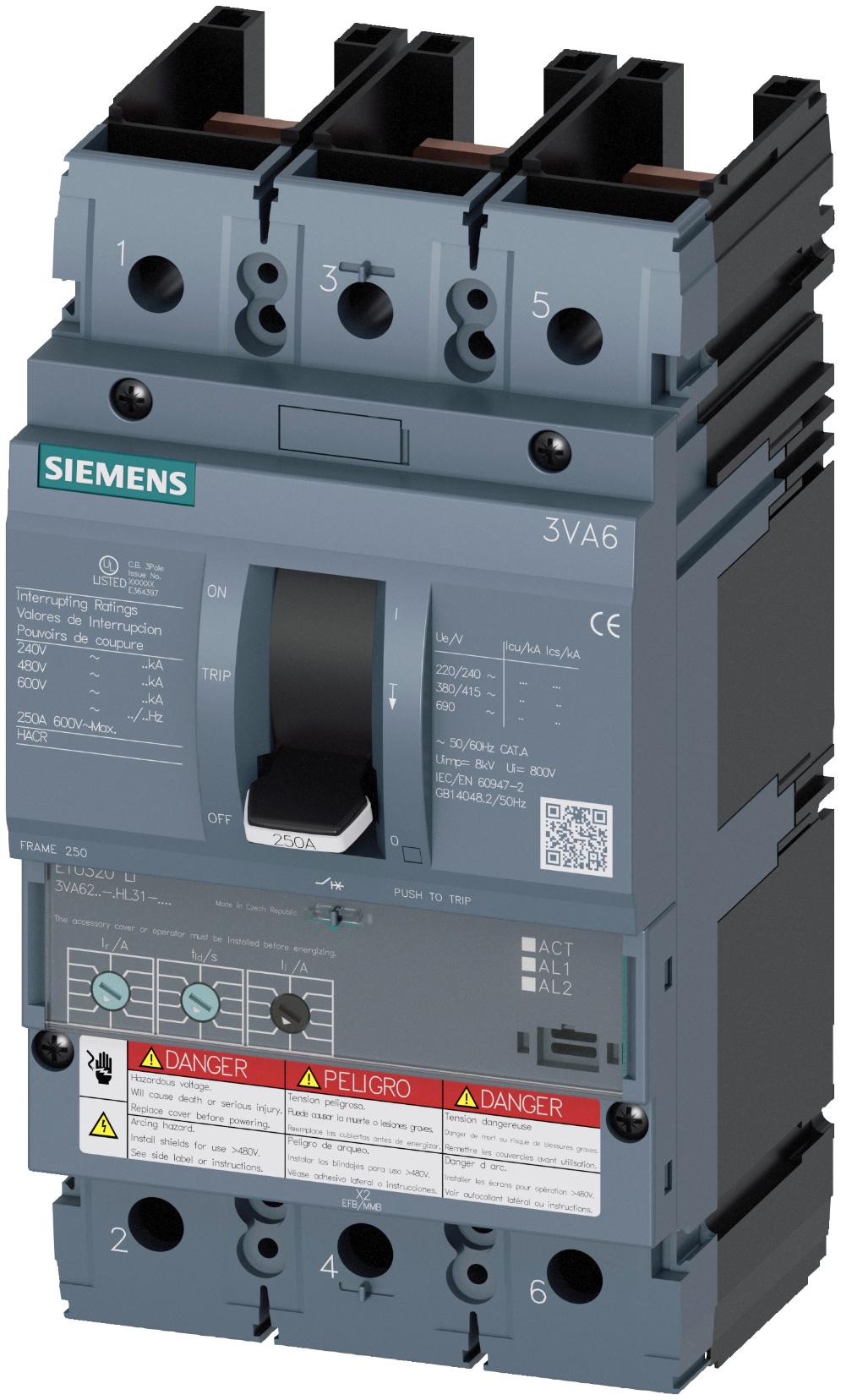

Siemens 3VA6225-5HL31-0AA0 Molded case circuit breaker 250 A (3-pole)

Product Description

Siemens 3VA6225-5HL31-0AA0 is a low-voltage molded case circuit breaker with an ETU320 LI electronic trip unit. It is a 3VA62 frame device rated 250 A, 3-pole, with interrupting ratings of 35 kA at 480 V and 18 kA at 600 V. The breaker uses a punched copper bar connection (shipped without lugs), has compact dimensions, and is suitable for fixed mounting in industrial AC protection applications.

• Rated current: 250 A, 3-pole configuration; 3VA62 frame
• Interrupting capacity: 35 kA at 480 V; 18 kA at 600 V with ETU320 LI electronic trip
• Connection: punched copper bar without lugs; enclosure IP40; fixed mounting

Product Highlights

250 A 3-pole molded case breaker with ETU320 LI electronic trip, 35 kA interrupting rating at 480 V, punched copper bar connection, IP40 enclosure

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA6225-5HL31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3VA6225-5HL31-0AA0
• Series: 3VA / 3VA6
• Frame: 250A (3VA62 frame)
• Rated Current: 250 A
• Poles: 3 Pole
• Rated Voltage: 480 V AC
• Frequency: 50/60 Hz
• Interrupting Capacity: 35 kA at 480 V; 18 kA at 600 V
• Trip Unit: ETU320 LI (electronic trip unit)
• Breaking Capacity Class: Medium low (Class M)
• Connection Type: Punched copper bar (without lugs)
• Enclosure Rating: IP40
• Mounting Type: Fixed
• Operating Temperature: -25 to 70 C
• Dimensions (W x D x H): 4.13 in x 4.21 in x 7.8 in
• Weight: 5.070 lb
• Standards / Certifications: UL
• Country of Origin: Czech Republic
• GTIN / UPC: 00804766310225
