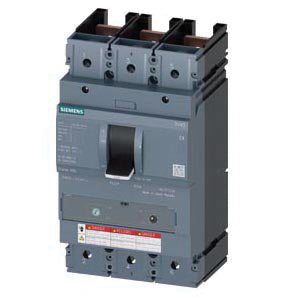

Siemens 3VA5340-5EC31-0AA0 Low Voltage Molded Case Circuit Breaker 600 VAC 500 VDC

Product Description

The Siemens low voltage molded case circuit breaker, model 3VA5340-5EC31-0AA0, is built for reliable electrical distribution. It operates at 600 VAC and 500 VDC with a current rating of 400 A. This product delivers strong performance with interruption ratings of 18 kA at 600 V, 35 kA at 480 V, and 85 kA at 240 V. Ideal for various electrical applications, it features three poles and thermal/magnetic trip mechanisms.

• Reliable protection for electrical circuits.
• Medium breaking capacity suitable for various applications.
• Compact design with easy installation.

Product Highlights

Designed for commercial and industrial use, the Siemens circuit breaker is efficient in providing overload and short-circuit protection.

Product Information

Standard Information

• Brand: Siemens
• Part Number: Q4496

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 600 VAC, 500 VDC
• Interrupt Rating: 18 kA at 600 V, 35 kA at 480 V, 85 kA at 240 V
• Number of Poles: 3
• Dimensions: 9.8 in H x 5.4 in W x 5.4 in D
• Enclosure Type: IP40
• Temperature Rating: -40 deg C
• Trip Type: Thermal/Magnetic
• Frequency Rating: 50/60 Hz
• Frame: 3VA53
