Siemens 3VA5225-0BB32-0AA0 MCSW 3VA52 3P 250A 65kA EA

Product Description

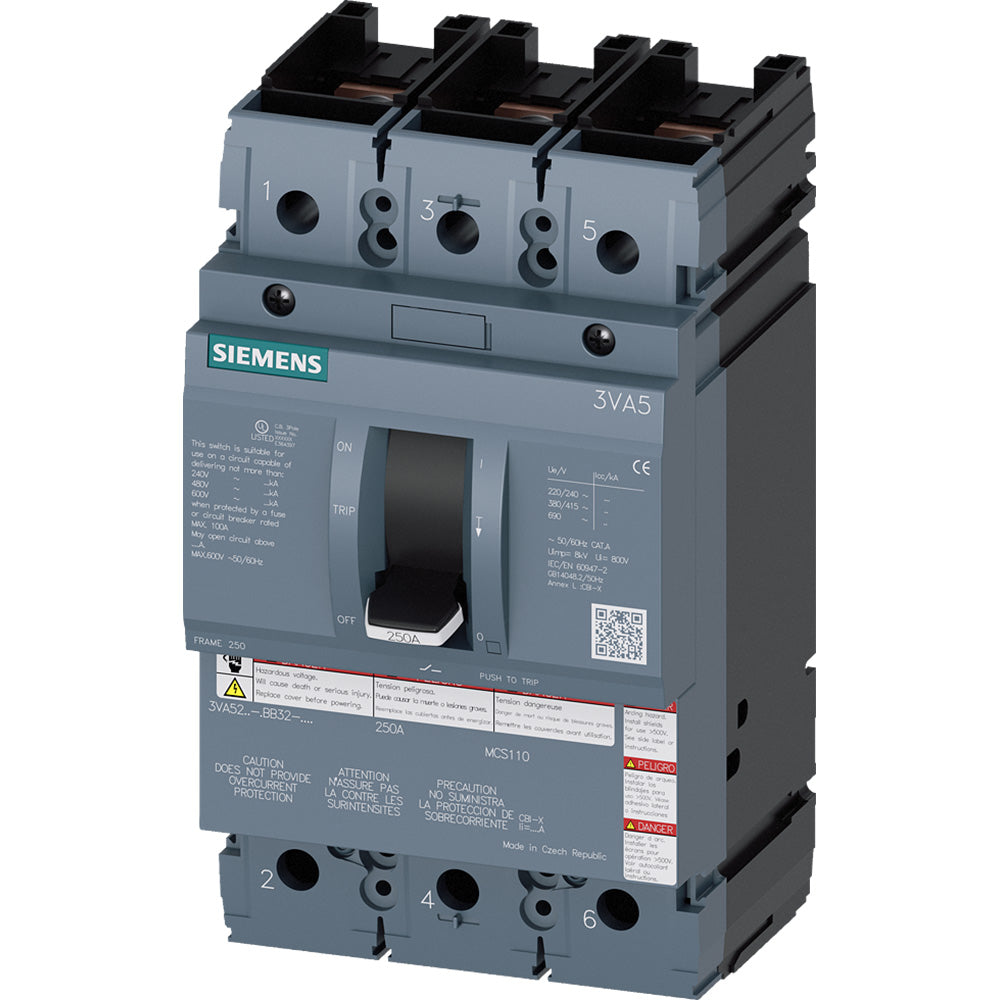

Siemens 3VA5225-0BB32-0AA0 is a molded case switch/circuit breaker in the SENTRON family rated for 250 A with a 65 kA interrupting capacity. The three-pole device provides thermal-magnetic protection and is suitable for up to 690 V AC/DC systems, with a lever actuator and DIN-rail mounting option for industrial distribution and motor-control applications.

• Three-pole molded case switch/circuit breaker with 250 A current rating
• 65 kA interrupting capacity and thermal-magnetic trip for overload and short-circuit protection
• Lever actuator, DIN-rail mounting, rated up to 690 V AC/DC; approvals include CCC, CE, CSA, UL489

Product Highlights

SENTRON series 3-pole, 250 A molded case breaker; 65 kA interrupting capacity; thermal-magnetic trip; DIN-rail mounting; certified to CCC, CE, CSA, UL489; RoHS compliant.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5225-0BB32-0AA0

Technical Specifications

• Manufacturer: SIEMENS
• Manufacturer Part Number: 3VA5225-0BB32-0AA0
• Series: SENTRON
• Number of Poles: 3
• Current Rating: 250 A
• Voltage Rating: 690 V AC/DC
• Interrupting Capacity: 65 kA
• Trip Type: Thermal-magnetic (Type 2 characteristic)
• Actuator Type: Lever
• Mounting Type: DIN Rail
• Approvals: CCC, CE, CSA, UL489
• RoHS Compliance: Yes
• Operating Temperature: -25°C to +70°C
