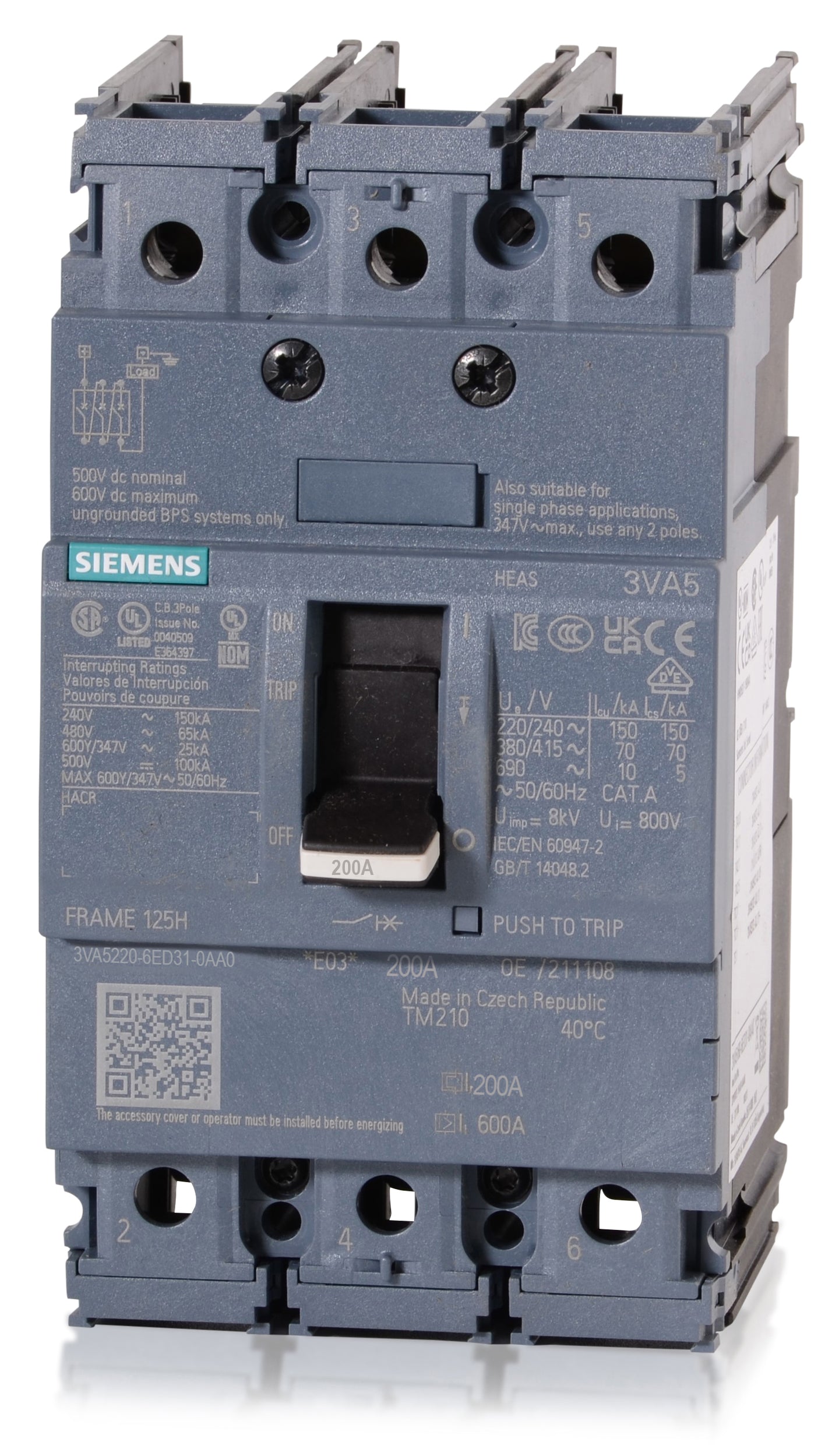

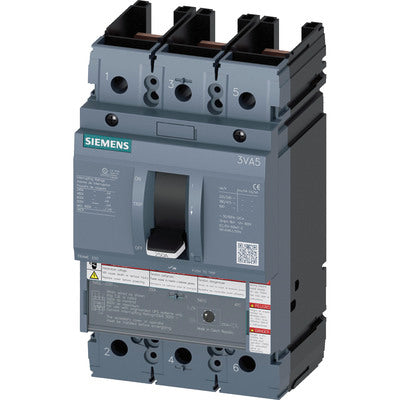

Siemens 3VA5220-6ED31-0AA0 Molded Case Circuit Breaker 200A

Product Description

The Siemens 3VA5220-6ED31-0AA0 is a 200A three-pole molded case circuit breaker designed for heavy-duty industrial and marine environments. It features fixed thermal and magnetic trip elements and a current-limiting design with a 65kAIC rating at 480VAC. It mounts into Siemens P1, P2, and P3 panelboards or SB switchboards using standard lug connections.

• 200A three-pole molded case circuit breaker
• Fixed thermal and magnetic trip elements
• Current-limiting design

Product Highlights

This circuit breaker is suitable for AC/DC applications and can replace discontinued HFD63B200 breakers in existing enclosures.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5220-6ED31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Series: 3VA5
• Part Number: 3VA5220-6ED31-0AA0
• Amperage: 200A
• Voltage: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC
• Poles: 3
• Phase: 3
• AIC Rating: 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 85kA @ 250VDC, 85kA @ 500VDC, 85kA @ 750VDC
• Mounting Style: Panel Mount
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Handle Lock
• Accessories: None (No Lugs Included)
• Standards: IEC 60947-2, UL 489, HACR
• Approval: CE, CSA, EAC, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Reverse Feed
• Interrupt Rating: 64 kA
• Network frequency: 0-400 Hz
• Rated current: 200A
• Trip current rating: 200 AT
• Frame current rating: 250 AF
• Rated voltage (AC): 600Vac
• Rated impulse voltage (Uimp): 8 kV
• Short circuit breaking rating: Class "H"
• Trip unit type: Thermal-Magnetic (fixed)
• Protection functions: Thermal protection (Overload), Magnetic protection (Short-circuit)
• Protection settings: Thermal protection (Overload) -- tripping threshold fixed at 200A, Magnetic protection (Short-circuit) -- short-circuit pickup current fixed at 2000A
• Mounting mode: Surface
• Electrical durability (with load): 8000 operations
• Mechanical durability (at no load): 15000 operations
• Order code / Manufacturer SKU: 3VA5220-6ED31-0AA0
• Manufacturer product status: Commercialized
• Equivalent to: 3VA52206ED310AA0
• Compliant with standard(s): IEC 60947-2, CSA22.2, UL489
• Location of origin: Czech Republic
• Application: For AC/DC applications
