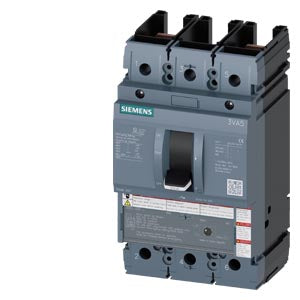

Siemens 3VA5220-5ED61-0AA0 Molded Case Circuit Breaker, 690 VAC/500 VDC, 250 A, 35 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Product Description

The Siemens 3VA5220-5ED61-0AA0 is a low voltage molded case circuit breaker with a thermal and magnetic trip unit. This circuit breaker has a rating of two hundred amps and is capable of handling up to six hundred volts AC and five hundred volts DC. Designed for power distribution, it offers a medium breaking capacity and is suitable for various electrical applications.

• Rated for two hundred amps
• Two-pole configuration
• Interrupt rating of thirty-five kA

Product Highlights

This circuit breaker integrates advanced technology to provide reliable protection in power distribution systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3VA5220-5ED61-0AA0

Technical Specifications

• Amperage Rating: 250 A
• Voltage Rating: 690 VAC / 500 VDC
• Interrupt Rating: 35 kA
• Frequency Rating: 50/60 Hz
• Enclosure Type: IP40
• Number of Poles: 2
• Temperature Rating: -25 to 70 deg C
• Mounting Type: Fixed
• Series: 3VA5
• Dimensions: 7.28 inches H x 4.13 inches W x 4.21 inches D
