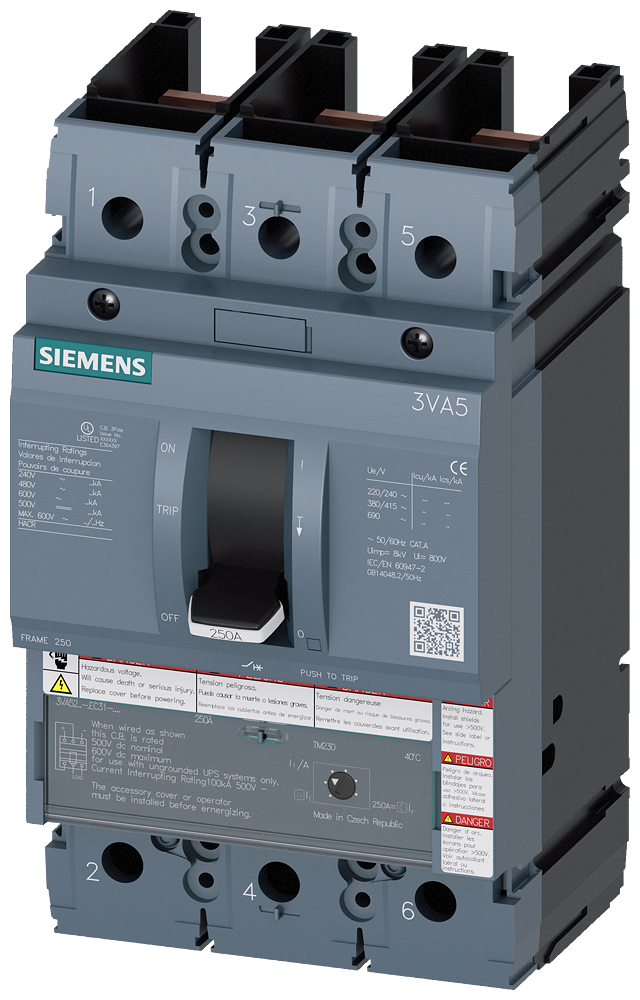

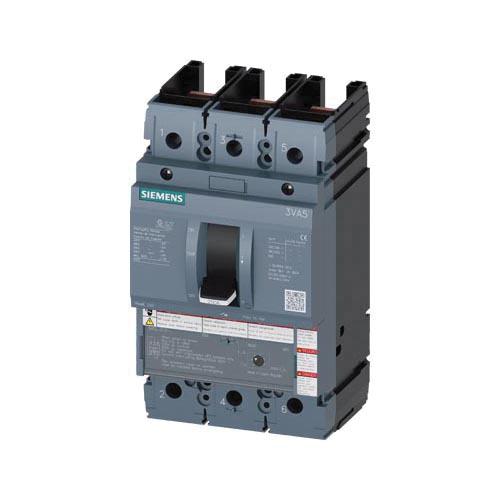

Siemens 3VA52175EC310AA0 Low Voltage Molded Case Circuit Breaker 600 VAC/750 VDC 175 A 3 Poles

Product Description

The Siemens 3VA52175EC310AA0 Low Voltage Molded Case Circuit Breaker is designed for efficient electrical distribution management. It operates at 600 VAC/750 VDC and features a current rating of 175 Amperes. The device provides protection with an interruption rating of 18 kA at 600 volts. It includes a thermal magnetic trip type known as TM230.

• Three-pole design for versatile applications.
• Compact design minimizes installation space.
• Integrated metering and communication capabilities via Modbus and other protocols.

Product Highlights

This circuit breaker has a temperature rating of negative twenty-five to seventy degrees Celsius and meets IP40 enclosure standards.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3VA52175EC310AA0

Technical Specifications

• Amperage Rating: 175 A
• Voltage Rating: 600 VAC/750 VDC
• Interrupt Rating: 18 kA at 600 V, 35 kA at 480 V, 85 kA at 240 V
• Number of Poles: 3
• Temperature Rating: -25 to 70 deg C
• Trip Type: TM230 Thermal Magnetic
• Dimensions: 4.1 inches wide x 3.3 inches deep x 7.3 inches high
• Enclosure Type: IP40
• Country of Origin: Czech Republic
