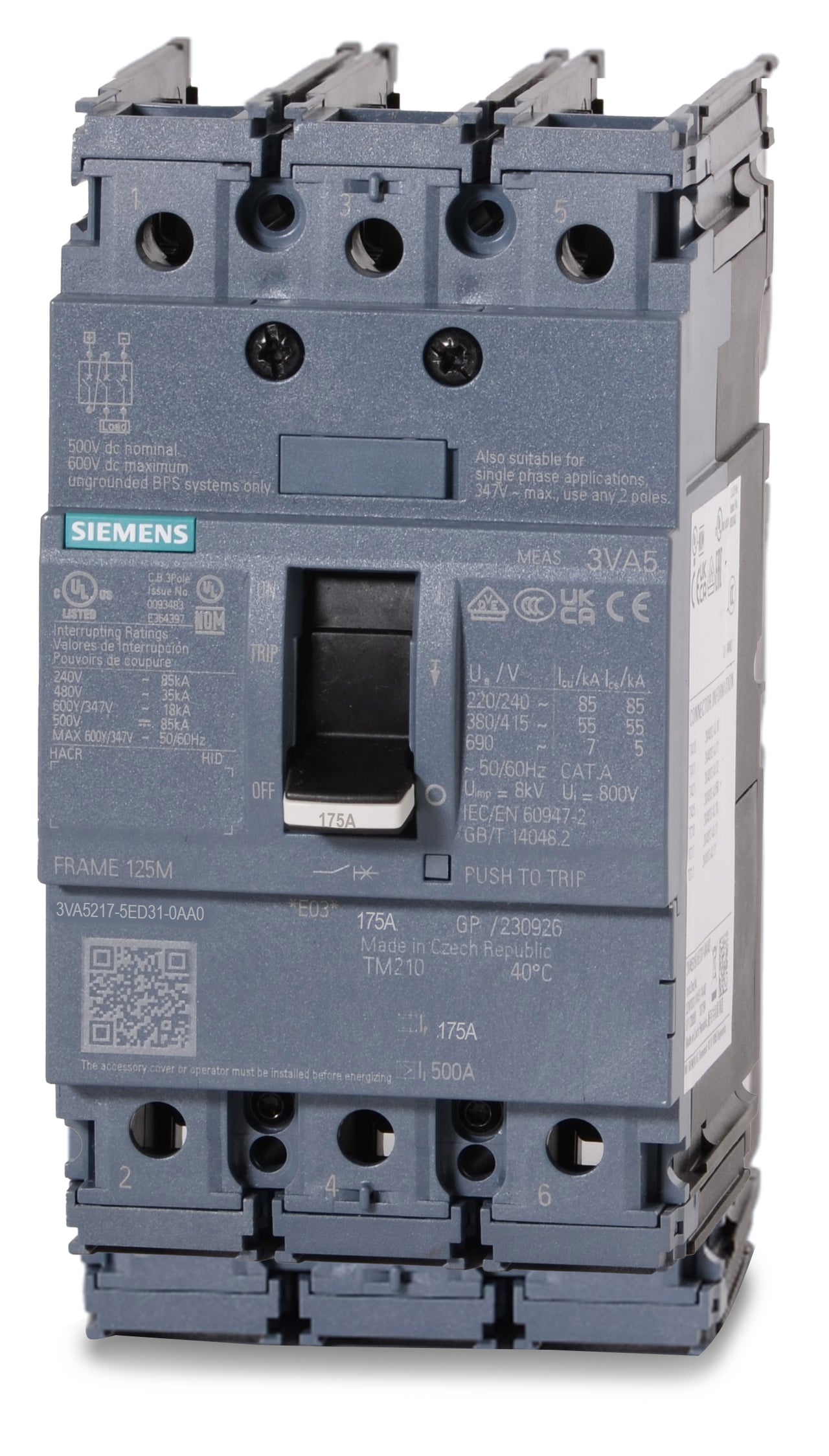

Siemens 3VA5217-5ED31-0AA0 175A 3 Pole Molded Case Circuit Breaker

Product Description

The Siemens 3VA5217-5ED31-0AA0 is a 3-pole, 175A MCCB designed for dependable circuit defense, delivering standard long-time and instantaneous (LI) protection. It installs into modern Siemens 3VA panelboards and can replace discontinued FXD63B175 breakers with a retrofit kit. Featuring a Class M rating of 35kAIC at 480V, it includes a TM210 trip unit with fixed thermal and magnetic settings. It is HACR rated and current limiting.

• 3-pole
• 175A
• MCCB

Product Highlights

The Siemens 3VA5217-5ED31-0AA0 is a 175A 3-pole molded case circuit breaker with long-time and instantaneous protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5217-5ED31-0AA0
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Series: 3VA5
• Amperage: 175A
• Voltage: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC
• Poles: 3
• Phase: 3
• AIC Rating: 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 85kA @ 250VDC, 85kA @ 500VDC, 50kA @ 750VDC
• Mounting Style: Panel Mount
• Terminal Type: Lugs
• For Use With: Siemens 3VA Panelboards, Switchboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Available Options: Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release
• Accessories: Nut Keeper Kit, Lugs Not Included
• Standards: HACR, IEC 60947-2, UL 489
• Approval: ABS, CE, CSA, EAC, RCM, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Reverse Feed
• Dimensions: 7.28 in H x 4.13 in W x 4.21 in D
• Part Number #: 3VA5217-5ED31-0AA0
• SKU #: 2334599
• UNSPSC: 39121601
• UPC: 00804766308420
• Current Rating: 175 A
• Max Operating Temperature: 70 °C
• Min Operating Temperature: -25 °C
• Number of Poles: 3
• Voltage Rating (AC): 690 V
• Voltage Rating (DC): 750 V
• Height: 83.82 mm
• Length: 185.42 mm
• Environmental Classification: RoHS
