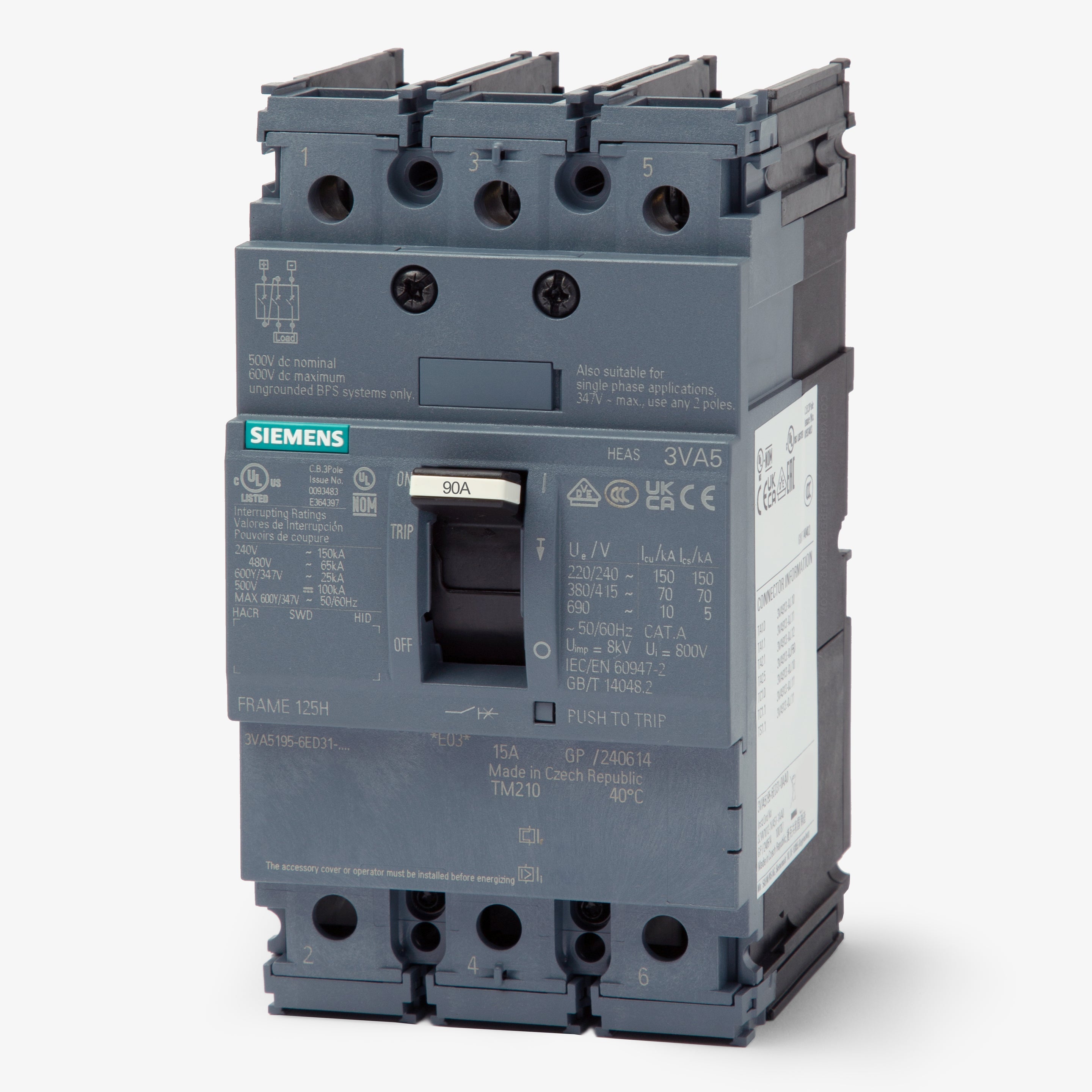

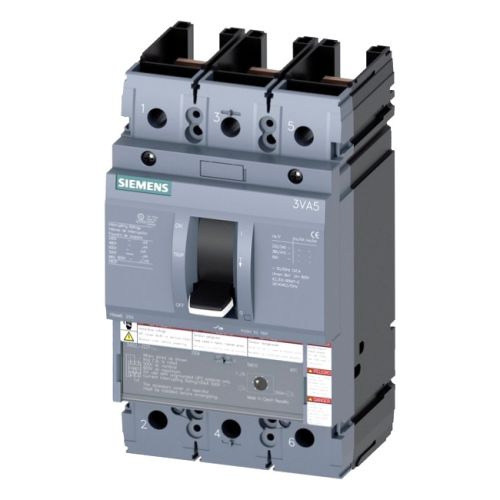

Siemens 3VA5190-5ED31-0AA0 90A 3 Pole Molded Case Circuit Breaker REPLACEMENT ED43B090

Product Description

The SIEMENS 3VA5190-5ED31-0AA0 is a 3-pole, 90A molded case circuit breaker engineered for industrial applications. It delivers reliable LI protection and installs into Siemens 3VA panelboards. This breaker replaces legacy ED43B090 and ED63B090 breakers. It features a Class M breaking capacity, providing a 35kA interrupt rating at 480VAC and includes a TM210 thermal-magnetic trip unit with fixed settings.

• Engineered for industrial applications
• 3-pole, 90A molded case circuit breaker
• Delivers reliable LI protection

Product Highlights

The SIEMENS 3VA5190-5ED31-0AA0 circuit breaker is suitable for residential, commercial, and industrial applications. It features long time and instantaneous trip functions.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5190-5ED31-0AA0

Technical Specifications

• Brand: Siemens
• Series: 3VA5
• Part Number: 3VA5190-5ED31-0AA0
• Amperage: 90A
• Voltage: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 500VDC
• Poles: 3
• Phase: 3
• AIC Rating: 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 500VDC
• Mounting Style: Panel Mount

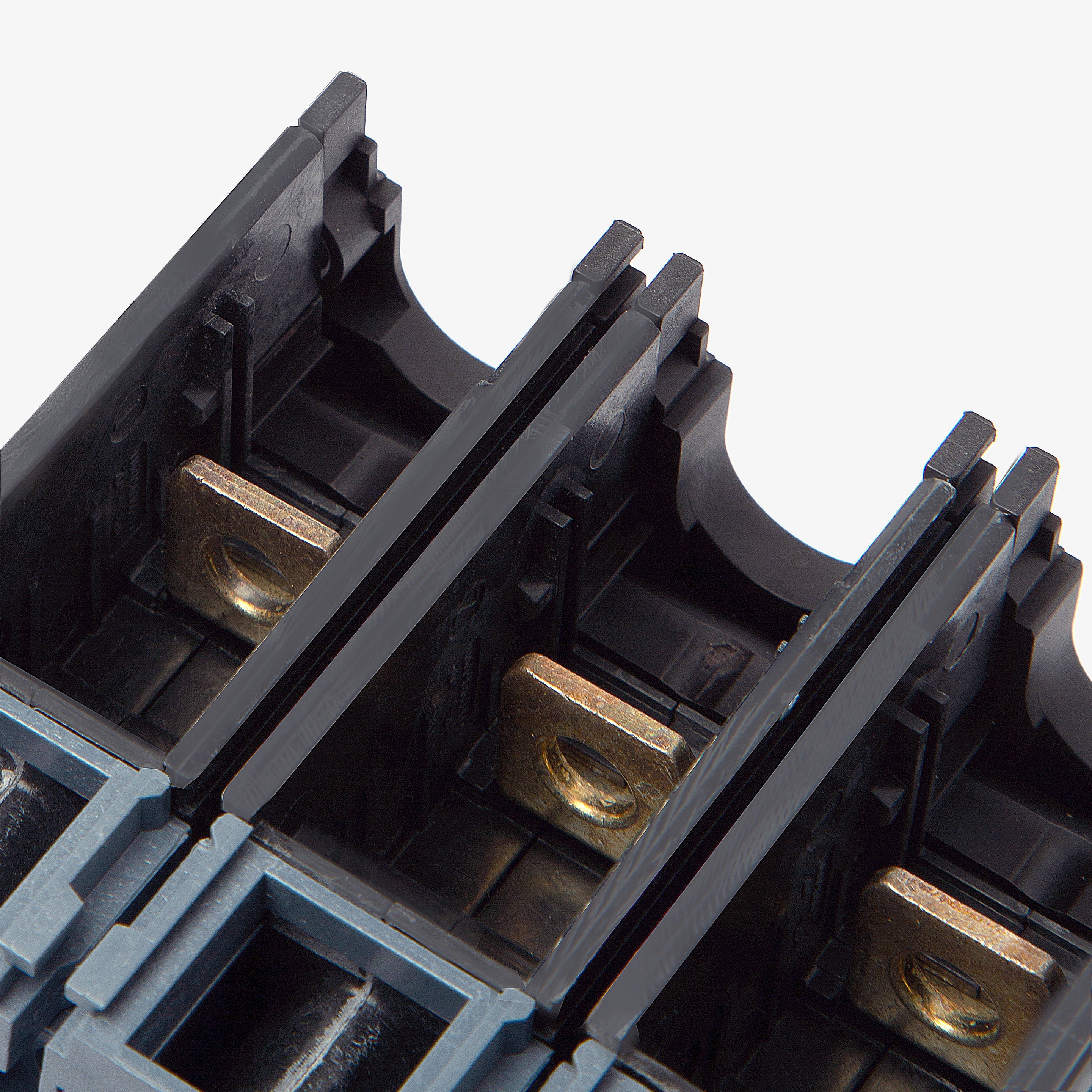

• Terminal Type: Lugs
• For Use With: Siemens 3VA Panelboards, Switchboards, Enclosures
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, DIN Rail Adapter, Lug Kits, Busbar System
• Accessories: None (Without Connection)
• Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
• Approval: CE, CSA, EAC, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed
• Manufacturer: Siemens
• Voltage Type: AC
• Frame Type: 3VA
