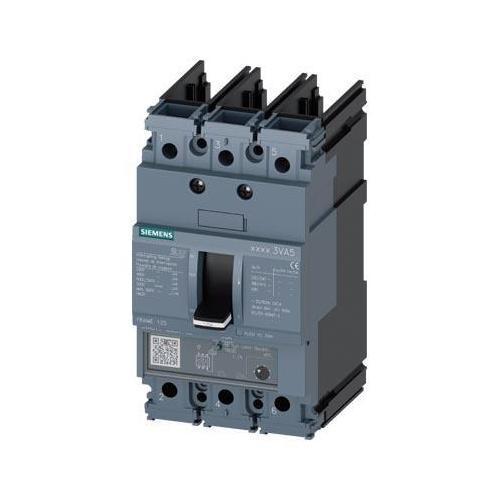

Siemens 3VA5180-6EC31-0AA0 Breaker, Molded Case, 80A, 3P

Product Description

The SIEMENS 3VA5180-6EC31-0AA0 is a molded case circuit breaker from the 3VA5 series, designed for low-voltage and medium-voltage power distribution. Meeting IEC 60947-2 and UL489 standards, this 3-pole breaker is suitable for global use, protecting cables, electrical loads, and industrial plants. It features a thermal/magnetic trip unit and a 65kA interrupt rating at 480V.

• Suitable for AC/DC applications.
• Compact design with modular and easy to fit internal accessories.
• Meets IEC 60947-2 and UL489 standards for global use.

Product Highlights

This Siemens breaker offers reliable circuit protection with a compact design and modular accessories, suitable for various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5180-6EC31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5180-6EC31-0AA0
• Current Rating: 80 A
• Series: SENTRON
• Number of Poles: 3
• Type: Thermal/Magnetic
• Voltage: 690 VAC/500 VDC
• Frequency: 50/60 Hz
• Interrupt Rating: 64 kA
• Trip Type: Thermal/Magnetic Trip
• Enclosure: IP40
• Mounting: Fixed Mounting
• Temperature: -25 to 70 deg C
• Main function: Moulded Case Circuit Breaker (MCCB)
• Sub-range name: 3VA UL 489 breakers series
• Network frequency: 0-400 Hz
• Functions: Moulded / Molded Case Circuit Breaker (MCCB)
• Rated current: 80A
• Trip current rating: 80 AT
• Frame current rating: 125 AF
• Rated voltage (AC): 600Y/347Vac
• Rated impulse voltage (Uimp): 8 kV
• Short circuit breaking rating: Class "H"
• 100kA (240Vac; UL489): 100kA (240Vac; UL489)
• 65kA (480Y/277Vac; UL489): 65kA (480Y/277Vac; UL489)
• 65kA (480Vac; UL489): 65kA (480Vac; UL489)
• 25kA (600Y/347Vac; UL489): 25kA (600Y/347Vac; UL489)
• 100kA (250Vdc; UL): 100kA (250Vdc; UL)
• 100kA (500Vdc; UL): 100kA (500Vdc; UL)
• TM230 FTAM: TM230 FTAM
• Protection functions: Thermal protection (Overload)
• Magnetic protection (Short-circuit): Magnetic protection (Short-circuit)
• Protection settings: Thermal protection (Overload) -- tripping threshold fixed at 80A
• Magnetic protection (Short-circuit) -- short-circuit pickup current adjustable 400A...800A: Magnetic protection (Short-circuit) -- short-circuit pickup current adjustable 400A...800A
• Mounting mode: Surface or DIN rail
• Electrical durability (with load): 8000 operations
• Mechanical durability (at no load): 15000 operations
• Order code / Manufacturer SKU: 3VA5180-6EC31-0AA0
• Compliant with standard(s): IEC 60947-2
• CSA22.2: CSA22.2
• UL489: UL489
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Part Status: Active
• Mounting Type: DIN Rail
• Voltage Rating - AC: 690 V
• Actuator Type: Lever
• Illumination: None
• Approval Agency: CCC, CE, CSA, EAC, UL489, VDE
