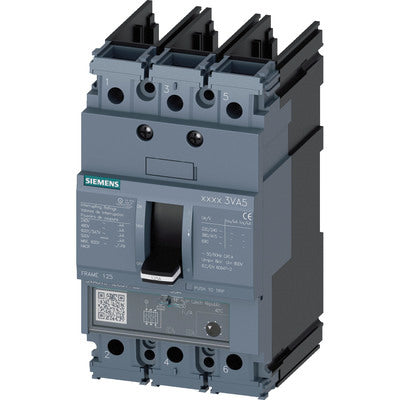

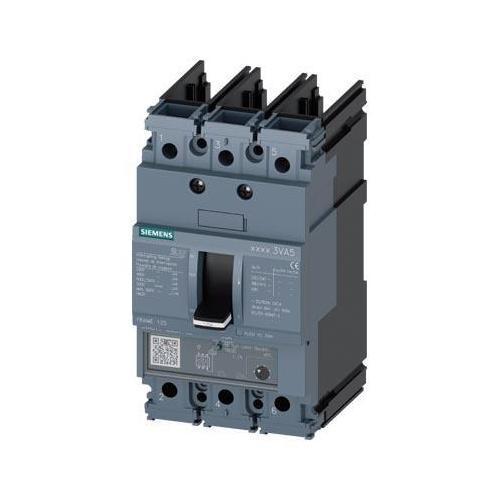

Siemens 3VA5170-6EC31-0AA0 Molded Case Circuit Breaker 125 A

Product Description

The SIEMENS 3VA5170-6EC31-0AA0 Molded Case Circuit Breaker is designed for circuit protection with a compact design. This 3VA5 series breaker operates at 690 VAC/500 VDC, with a 125 A rating and a 64 kA interrupt capacity. It features a thermal/magnetic trip and an IP40 enclosure for fixed mounting in demanding environments.

• For AC/DC applications
• Compact design
• Modular and easy to fit internal accessories with diverse functions

Product Highlights

Reliable circuit protection with thermal/magnetic trip and a compact, modular design suitable for diverse applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5170-6EC31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Part Number #: 3VA5170-6EC31-0AA0
• SKU #: 2334439
• UNSPSC: 39121601
• Series: 3VA5
• Voltage: 690 VAC/500 VDC
• Amperage: 125 A
• Frequency: 50/60 Hz
• Interrupt: 64 kA
• Trip: Thermal/Magnetic Trip
• Pole: 3 Pole
• Enclosure: IP40
• Mounting: Fixed
• Temperature: -25 to 70 deg C
• Trip Type: Thermal/Magnetic
• Application: For AC/DC applications
• Mounting Type: Fixed
• Enclosure Type: IP40
• Voltage Rating: 690 VAC/500 VDC
• Frequency Rating: 50/60
• Temperature Rating: -25 to 70
• Amperage Rating: 125
• Main function: Moulded Case Circuit Breaker (MCCB)
• Product series / family name: SENTRON
• Sub-range name: 3VA UL 489 breakers series
• Network frequency: 0-400 Hz
• Functions: Moulded / Molded Case Circuit Breaker (MCCB)
• Poles: 3-poles (3P3d)
• Frame current rating: 125 AF
• Rated impulse voltage (Uimp): 8 kV
• Trip unit type: Thermal-Magnetic (fixed)
• Compliant with standard(s): IEC 60947-2
• CSA22.2: UL489
