Siemens 3VA5160-6ED31-0AA0 Circuit Breaker 60A REPLACEMENT HHED63B060

Product Description

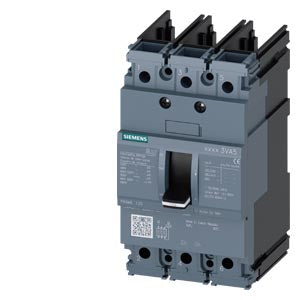

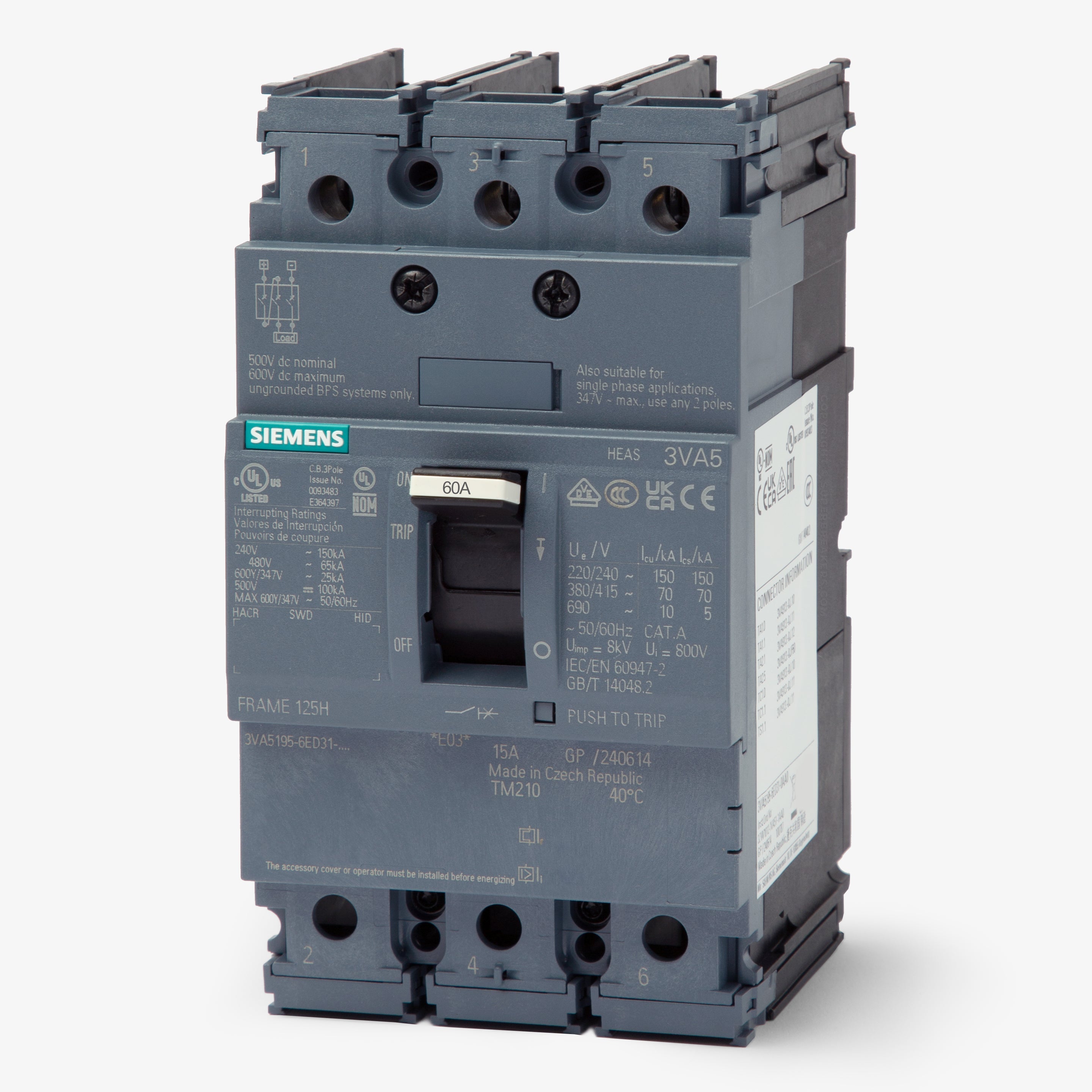

The Siemens 3VA5160-6ED31-0AA0 is a 60A molded case circuit breaker, providing a reliable solution for three-phase distribution. It features a TM210 trip unit for long-time and instantaneous (LI) circuit protection. Designed for Siemens P1, P2, and P3 panelboards, it's a direct replacement for the HHED63B060 breaker. With a 65 kAIC interrupt rating at 480V, this current-limiting breaker is also reverse-feed capable.

• Reliable solution for three-phase distribution
• TM210 trip unit for long-time and instantaneous (LI) circuit protection
• Direct cross-reference replacement for the older HHED63B060 breaker

Product Highlights

The Siemens 3VA5160-6ED31-0AA0 circuit breaker provides reliable circuit protection and is suitable for use in various Siemens panelboards and switchboards.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5160-6ED31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Article Number (Market Facing Number): 3VA5160-6ED31-0AA0
• Product family: 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
• Brand: Siemens
• Series: 3VA5
• Amperage: 60A
• Voltage: 240VAC, 480VAC, 600Y/347VAC, 500VDC
• Poles: 3
• Phase: 3
• AIC Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC
• Mounting Style: Panel Mount
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Available Options: Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Handle Lock, Padlock Attachment, DIN Rail Adapter, Busbar System
• Accessories: None (No Lugs Included)
• Standards: IEC 60947-2, UL 489, HACR Rated
• Approval: ABS, CE, CSA, EAC, IEC, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed
