Siemens 3VA5150-6ED31-0AA0 3VA51 molded case circuit breaker 50 A (3-pole) replacement 3VA51506ED310AA0

Product Description

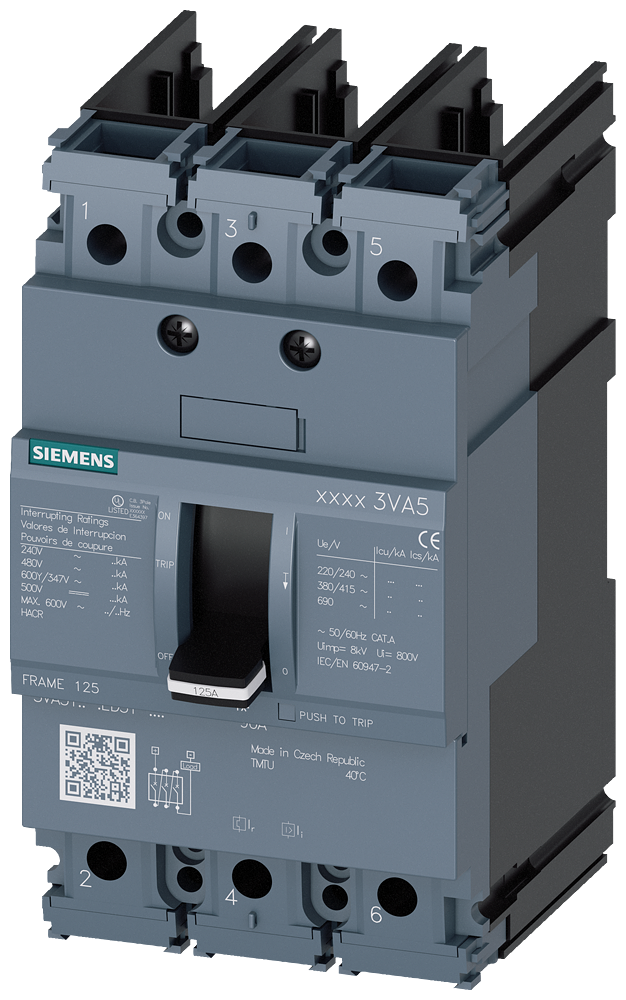

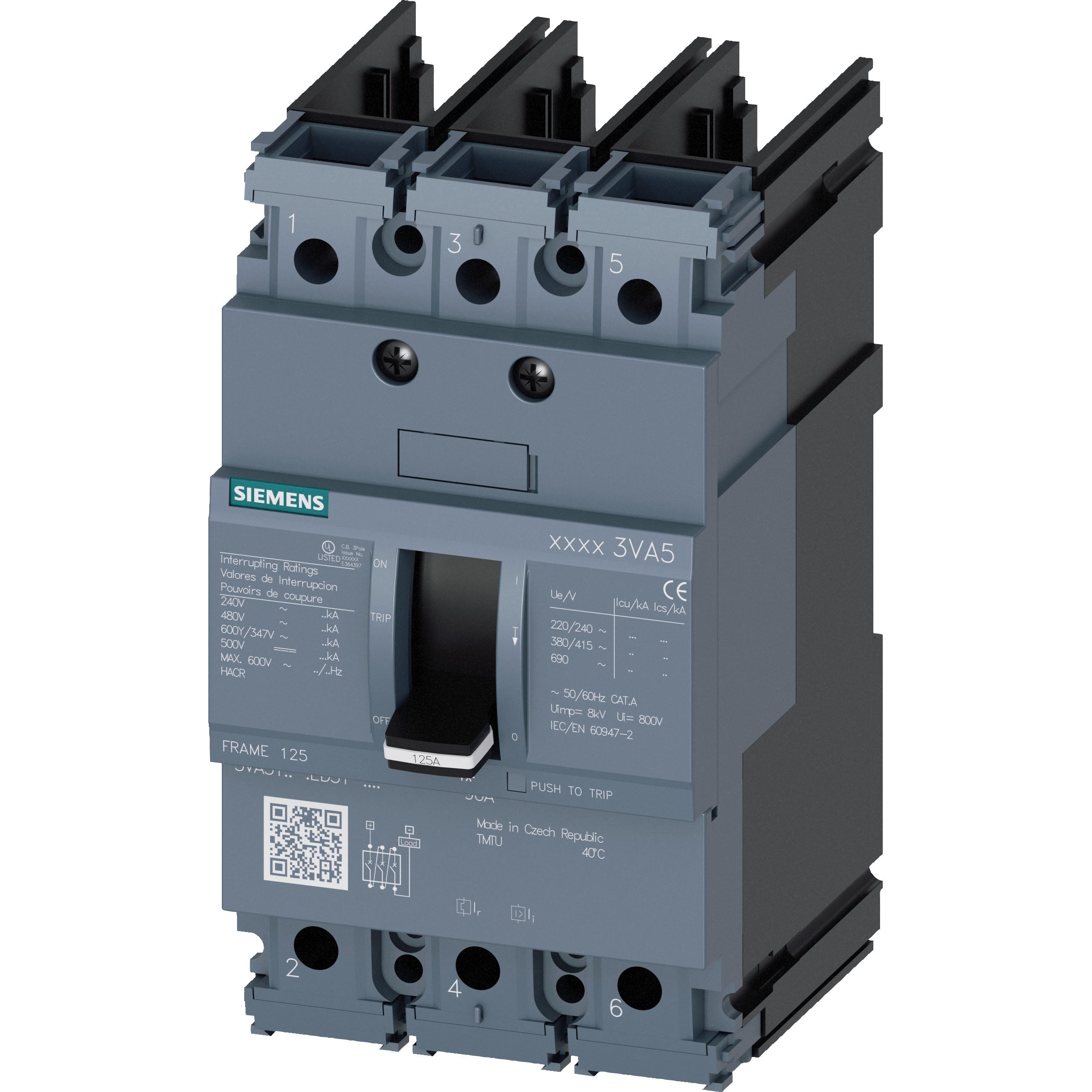

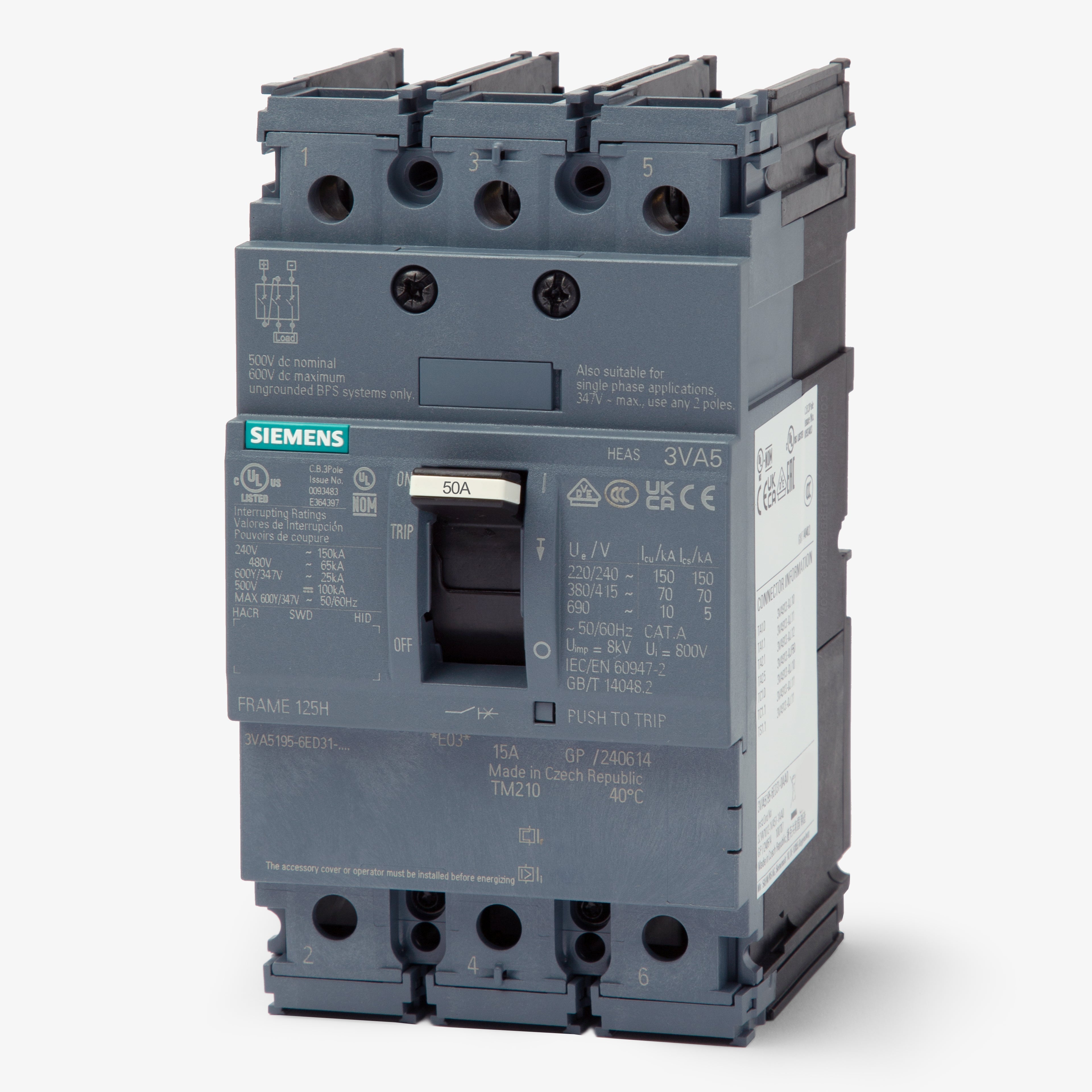

Siemens 3VA5150-6ED31-0AA0 is a 3-pole, 50 A molded case circuit breaker in the 3VA51 frame equipped with a TM210 thermal-magnetic trip unit (fixed thermal, fixed magnetic). It provides high interrupting capacity with ratings of 65 kA at 480 V and 25 kA at 600Y/347 V, and can be mounted on surface or DIN rail for commercial and industrial power distribution and panelboard integration.

• 3-pole molded case breaker, 50 A rating with 3VA51 frame and TM210 fixed thermal-magnetic trip
• Interrupting capacity: 65 kA at 480 V; 25 kA at 600Y/347 V; insulation Class H
• Dimensions: 3.68 in x 5.51 in x 3.00 in; mounting: surface or DIN rail; punched copper bar terminal without lugs

Product Highlights

50 A, 3-pole 3VA51 molded case circuit breaker with TM210 fixed thermal-magnetic trip and high interrupting ratings

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5150-6ED31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3VA5150-6ED31-0AA0
• Equivalent Part Number: 3VA51506ED310AA0
• Series: 3VA5
• Product Family: SENTRON
• Frame: 3VA51
• Type: 3VA5 molded case circuit breaker
• Current Rating: 50 A
• Number of Poles: 3
• Rated Voltage: 480 V
• Interrupting Rating: 65 kA at 480 V; 25 kA at 600Y/347 V
• Trip Unit Type: TM210 thermal-magnetic (fixed thermal, fixed magnetic)
• Trip Function: Fixed thermal and fixed magnetic
• Frame Current Rating: 125 AF
• Rated Impulse Voltage: 8 kV
• Insulation Class: Class H
• Mounting Type: Surface or DIN rail
• Mounting Style: Panel mount compatibility with Siemens P1, P2, P3 panelboards and switchboards
• Terminal Type: Punched copper bar without lugs
• Dimensions (W x H x D): 3.68 in x 5.51 in x 3.00 in
• Weight: 2.120 lb
• Electrical Durability (with load): 8000 operations
• Mechanical Durability (no load): 15000 operations
• Operating Temperature: -25°C to 70°C
• Standards/Certifications: UL 489; IEC 60947-2; CSA; CE; VDE
• Approvals: ABS, CE, CSA, cULus, DNV, EAC, Lloyd's, UL, VDE
• Country of Origin: Czech Republic
