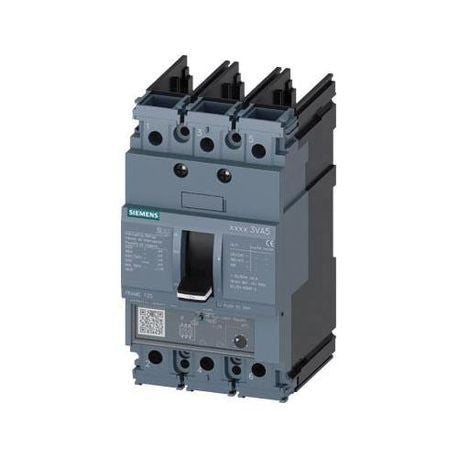

Siemens 3VA51404EC310AA0 Molded Case Circuit Breaker, 690 VAC/500 VDC, 40 A, 25 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Product Description

Siemens presents the 3VA51404EC310AA0 Molded Case Circuit Breaker designed for low and medium voltage power distribution. This circuit breaker is suitable for various applications, including industrial settings and commercial buildings. It handles voltages up to six hundred ninety volts AC and five hundred volts DC while providing a current rating of forty amps.

• High interrupt rating of twenty-five kA
• Three poles for versatile applications
• Thermal/magnetic trip for reliable performance

Product Highlights

This circuit breaker is compliant with global standards. It has a compact design that requires minimal space for installation. Its extensive selection of internal accessories is universal across the Siemens product line.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 3VA51404EC310AA0

Technical Specifications

• Enclosure Type: IP40
• Dimensions: 3 inches W x 3 inches D x 5.5 inches H
• Type: Low Voltage
• Trip Range: 200 to 400 A
• Frame: 3VA51 125 A
• Frequency Rating: 50/60 Hz
• Amperage Rating: 125 A
• GTIN: 00804766300592
• Interrupt Rating: 14 kA at 600 Y/347 V, 25 kA at 480 V, 65 kA at 240 V
• Number Of Poles: 3
• Trip Type: TM230 Thermal Magnetic
• Temperature Rating: -25 to 70 degrees C
• Voltage Rating: 600 VAC/500 VDC
• Minimum Order Quantity: 1
• UNSPSC: 39121616
• Application: Hospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment, Facilities, Production Lines, Production and Process Automation Industrial Applications
• Standard & Approvals: cULus Listed, CE Certified, CSA Certified, CCC Certified, EAC Compliant, ECCN EAR99, IEC 81346-2 Q, REACH Compliant, RoHS Compliant, RCM Certified, UL Listed, VDE Certified, WEEE 2012/19/EU
