Siemens 3VA5130-4ED32-0AA0 Brkr 3VA51 30 A (3P) 25 kA FTFM Nut

Product Description

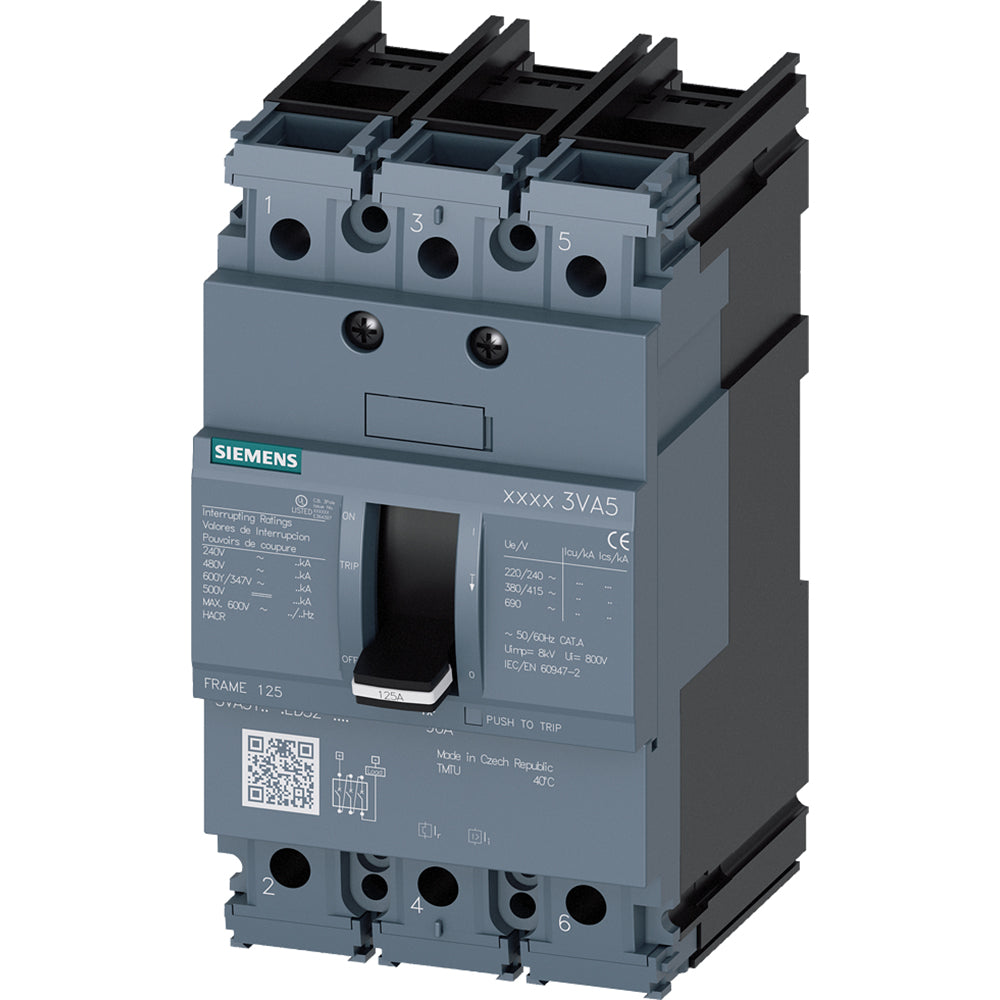

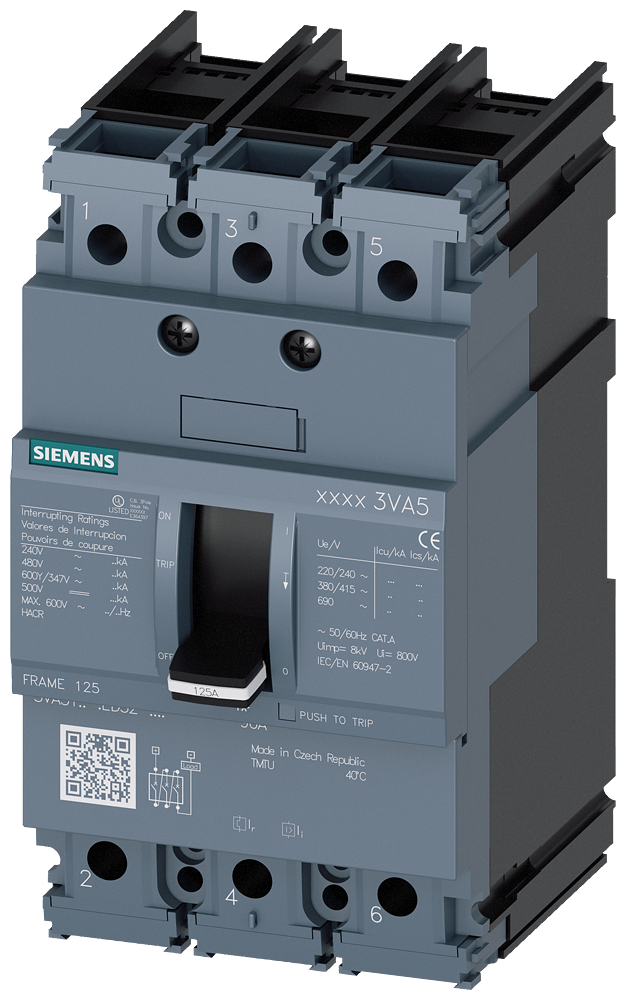

Siemens 3VA5130-4ED32-0AA0 is a low-voltage molded case circuit breaker featuring a TM210 thermal-magnetic trip unit with fixed Ir and Ii. The 3VA51 frame device is a 3-pole, 30 A breaker rated for up to 25 kA breaking capacity at 480 V (14 kAIC at 600Y/347) and supports DIN-rail mounting and front terminal/nut keeper lug connections. It is part of the SENTRON series and is UL489 approved.

• TM210 thermal-magnetic trip unit with fixed Ir and fixed Ii
• 3-pole, 30 A current rating with 25 kA breaking capacity at 480 V
• Front terminal lug connection with nut keeper; DIN-rail mounting

Product Highlights

3-pole 30 A molded case breaker with TM210 thermal-magnetic trip, 25 kA breaking capacity (480 V), DIN-rail mount, front terminal lug with nut keeper.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5130-4ED32-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 3VA5130-4ED32-0AA0
• Product Name: BRKR 3VA51 3P 30A 25KA FTFM NUT
• Series: SENTRON
• Frame: 3VA51
• Trip Unit: TM210 thermal-magnetic (fixed Ir, fixed Ii)
• Number of Poles: 3
• Current Rating: 30 A
• Breaking Capacity: 25 kA at 480 V; 14 kAIC at 600Y/347 (Class S)
• Voltage Rating AC: 690 V
• Mounting Type: DIN Rail
• Connection Type: Lug terminal / nut keeper (front terminal)
• Dimensions (W x H x D): 3 x 5.5 x 3.7 inches
• Actuator Type: Lever
• Approvals: UL489, CCC
• Product Category: Circuit Breakers
• Country of Origin: CZ
• Product Status: Active
