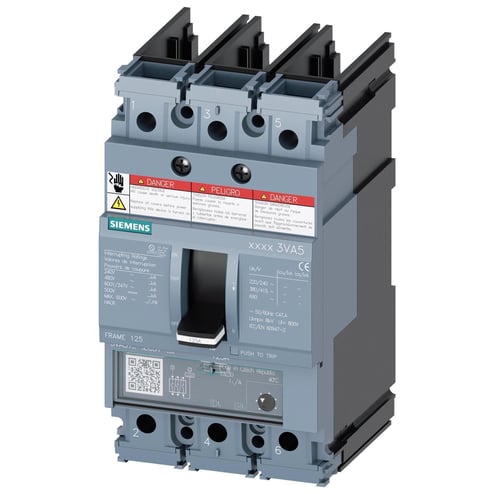

Siemens 3VA5125-4EC31-0AA0 mccb ul bg125 circuit breaker magnetic thermal 3p

Product Description

The SIEMENS 3VA5125-4EC31-0AA0 MCCB UL BG125 Circuit Breaker is a magnetic thermal 3-pole circuit breaker. Part of the 3VA5 series, it has a 125 A amperage rating and a 25 kA interrupt rating. This molded case circuit breaker is designed with a IP40 enclosure and fixed mounting.

• Compact design
• Modular and easy to fit internal accessories with diverse functions
• The new 3VA5 molded case circuit breakers reliably perform all the tasks required for circuit protection

Product Highlights

The SIEMENS 3VA5125-4EC31-0AA0 circuit breaker offers reliable circuit protection with its thermal-magnetic trip functionality and easy-to-fit internal accessories.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5125-4EC31-0AA0
• Country of Origin: Czechia

Technical Specifications

• Trip Type: Thermal Magnetic
• Interrupt Rating: 25 kA
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Voltage Rating: 690 V AC/500 V DC
• Enclosure Type: IP40
• Mounting Type: Fixed
• Series: 3VA5
• Amperage Rating: 125 A
• Temperature Rating: -25 to 70 deg C
