Siemens 3VA5110-6ED31-0AA0 Molded Case Circuit Breaker 100A (3-Pole) 3VA51106ED310AA0

Product Description

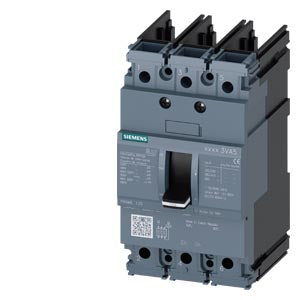

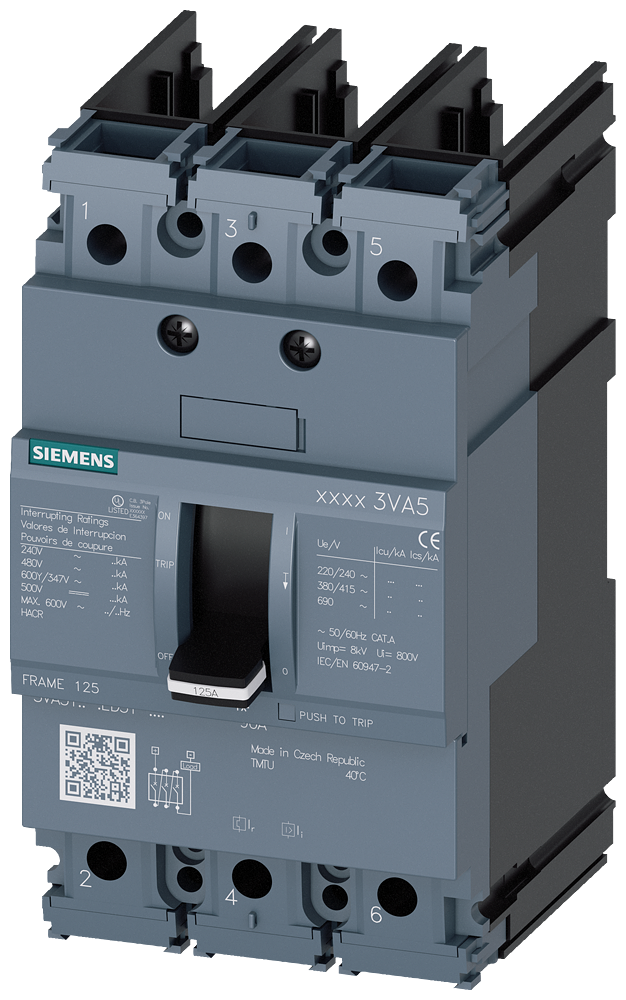

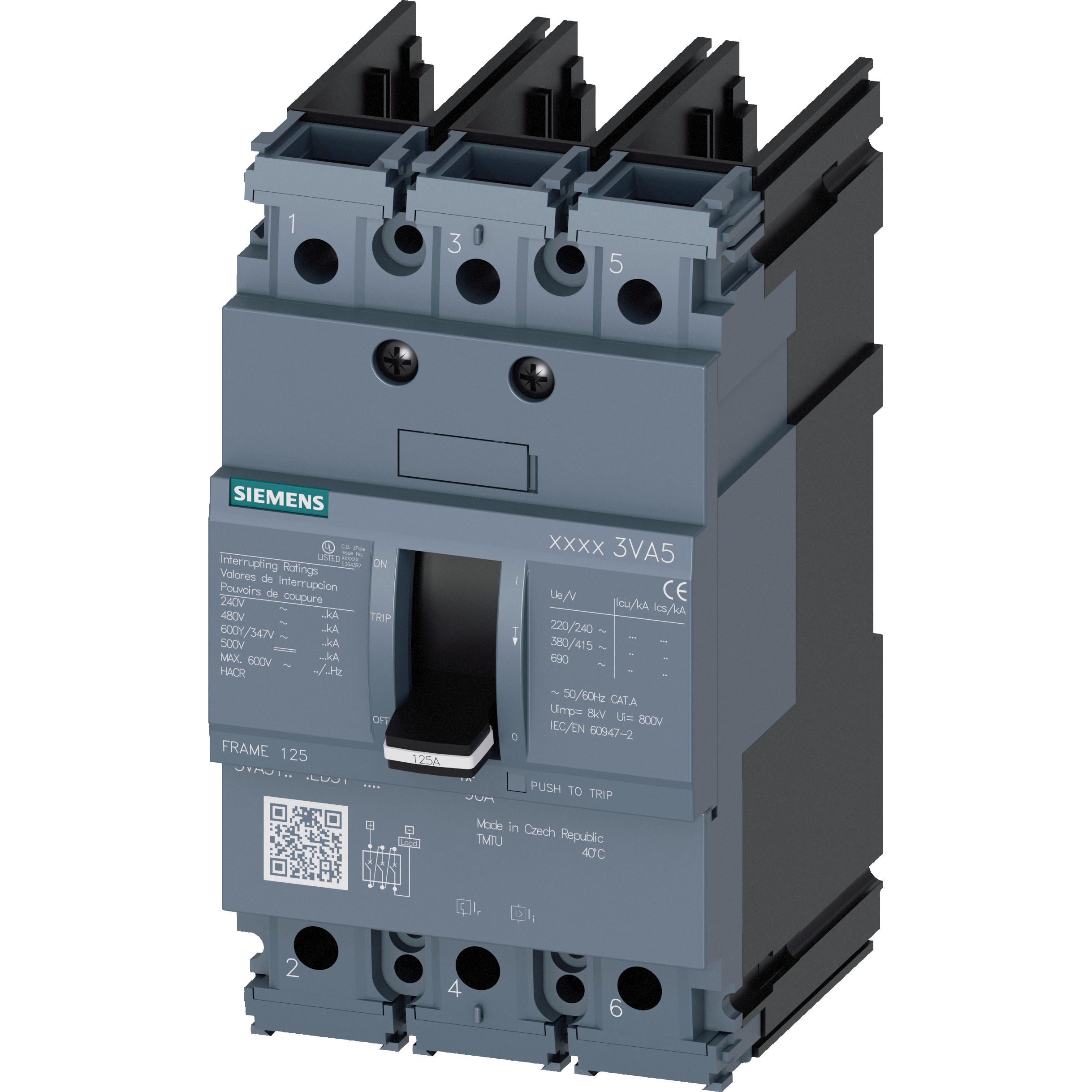

Siemens 3VA5110-6ED31-0AA0 is a low-voltage 3VA molded case circuit breaker with a TM210 thermal-magnetic trip unit. It is a 3-pole device rated 100 A with a 65 kA interrupting rating at 480 V (25 kA at 600Y/347 V) and is supplied without lugs. The breaker fits a 3VA51 frame, meets UL requirements, and is sized about 3 x 5.5 x 3.7 inches for use in low-voltage distribution and industrial line protection.

• 3-pole molded case design, 100 A rated current, 3VA51 frame
• TM210 fixed thermal and fixed magnetic trip unit for overload and short-circuit protection
• 65 kA interrupting rating at 480 V (25 kA at 600Y/347 V); supplied without lugs (punched copper bar connection); dimensions 3 x 5.5 x 3.7 in

Product Highlights

100 A, 3-pole MCCB with TM210 fixed thermal-magnetic trip and 65 kA interrupting rating at 480 V

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5110-6ED31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3VA5110-6ED31-0AA0
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: 3VA / Sentron
• Frame: 3VA51
• Frame Current Rating (AF): 125 AF
• Poles: 3 Pole
• Rated Current: 100 A
• Trip Unit: TM210 (fixed thermal, fixed magnetic)
• Protection: Thermal protection (overload); Magnetic protection (short-circuit)
• Interrupting Rating: 65 kA at 480 V; 25 kA at 600Y/347 V
• Rated Voltage (AC): 480 Volt
• Connection: Punched copper bar without lugs (supplied without lugs)
• Dimensions (W x H x D): 3 x 5.5 x 3.7 inches
• Weight: 2.12 lb
• Electrical Durability (with load): 8000 operations
• Mechanical Durability (no load): 15000 operations
• Operating Temperature: -40 to 80 C
• Standards / Certifications: UL; IEC 60947-2; UL489; CSA22.2
• Country of Origin: Czech Republic
• GTIN: 00804766300967
• UPC: 804766300967
• EAN: 4042948841273
