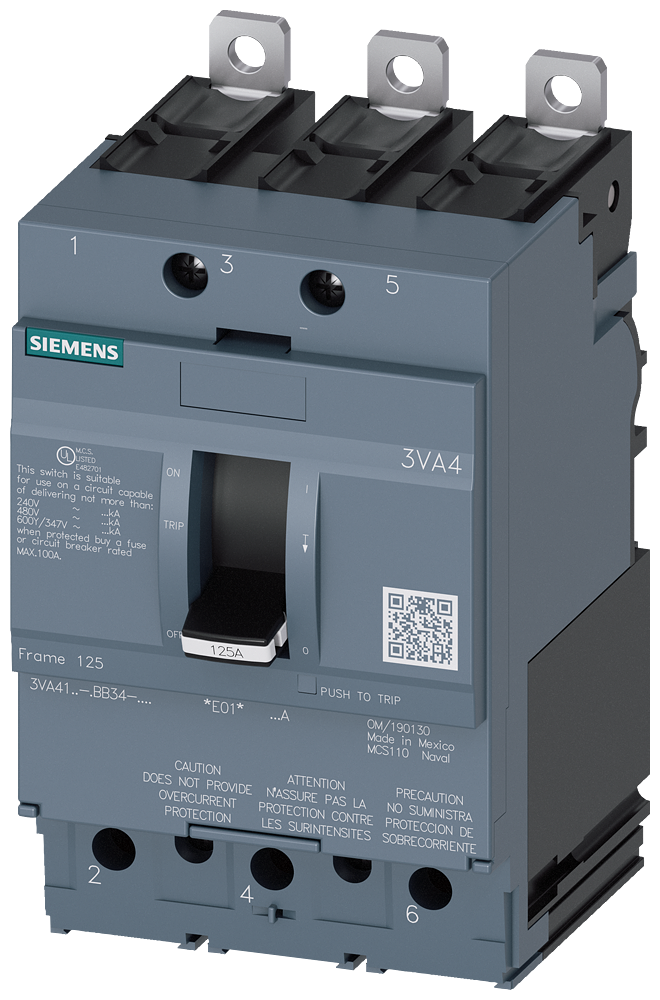

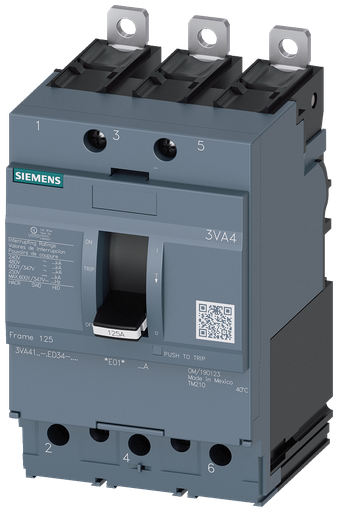

Siemens 3VA4195-5ED34-0AA0 BRKR 3VA41 3 Power Circuit Breaker

Product Description

The Siemens 3VA4195-5ED34-0AA0 is a low voltage molded case circuit breaker designed for power distribution needs. This 15 Amp, 3-pole breaker effectively safeguards electrical circuits against overloads and short circuits with its thermal-magnetic trip unit.

• Type Class: M Standard Low Voltage
• Interrupt Rating: 35 kA at 480V
• Compact dimensions of 5.5 inches height by 3 inches width

Product Highlights

This breaker is suitable for various applications within electrical distribution systems, emphasizing reliability and safety. It features a medium breaking capacity, making it efficient for commercial and industrial environments.

Product Information

Standard Information

• Brand: Siemens
• Sub Brand: Molded Case Circuit Breakers

Technical Specifications

• MPN: 3VA4195-5ED34-0AA0
• Amperage Rating: 15 A
• Number of Poles: 3
• Voltage Rating: 480 Volt
• Dimensions: 5.5 in H x 3 in W x 3.7 in D
• Weight: 1.830 lb
• Country of Origin: Mexico
• Interrupt Rating: 18 kA, 35 kA, 85 kA
• Wire Size Compatibility: 8 to 3/0 AWG
• Trip Type: TM210
• Enclosure Type: IP40
• Temperature Rating: -25 to 70 degrees Celsius
