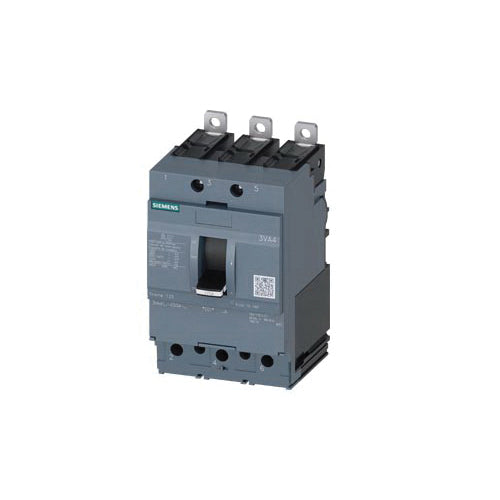

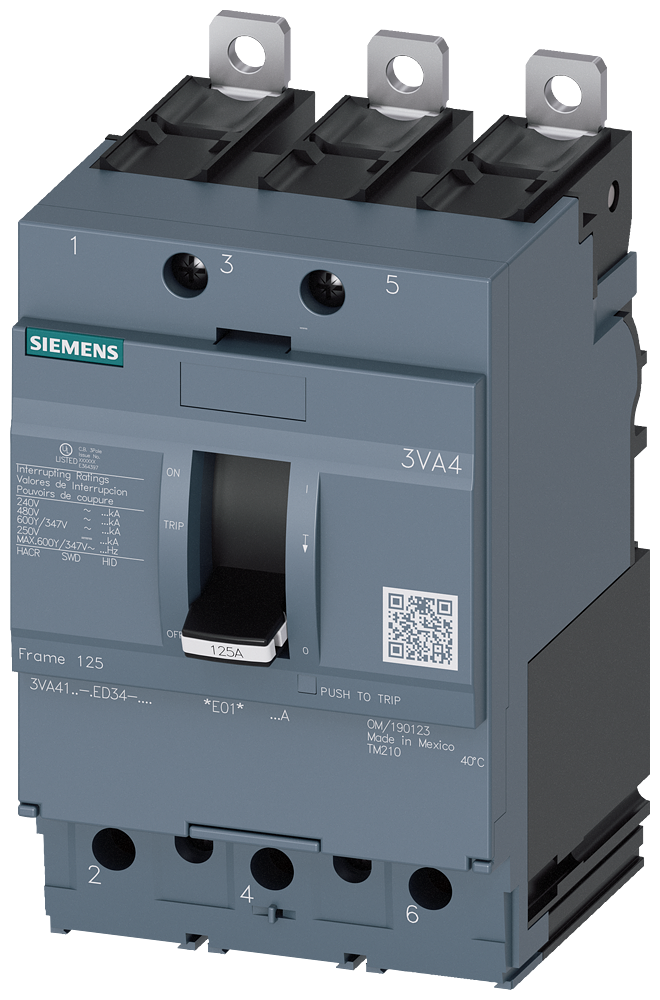

Siemens 3VA4190-4ED34-0AA0 Bolt On, 3 Phase, Thermal Magnetic, Load Side Lug Terminals, 600V, 90A

Product Description

The Siemens 3VA4190-4ED34-0AA0 is a bolt-on thermal magnetic circuit breaker designed for low voltage applications. Built with a 90 amp capacity, it features three poles and is suitable for use with aluminum wire on the load end with lug connections. This model is rated to operate at 600 volts, making it a reliable choice for various electrical distributions.

• Thermal magnetic trip unit for reliable performance.
• Compact design with dimensions measuring three inches wide, five and a half inches high, and three point seven inches deep.
• Standard Class S breaker with specific lugs installed only on the load side.

Product Highlights

Utilizing the TM210 trip unit, this breaker provides fixed settings for overcurrent protection. Ideal in power distribution setups where reliability is critical.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: 3VA4190-4ED34-0AA0

Technical Specifications

• Amperage Rating: 90 A
• Frame: 125/150 A
• Number of Poles: 3
• Interrupt Rating: 14 kA, 25 kA, 65 kA
• Temperature Rating: -25 to 70 deg C
• Dimensions: 5.5 in H x 3 in W x 3.7 in D
• Wire Size: 8 to 3/0 AWG
• Enclosure Type: IP40
