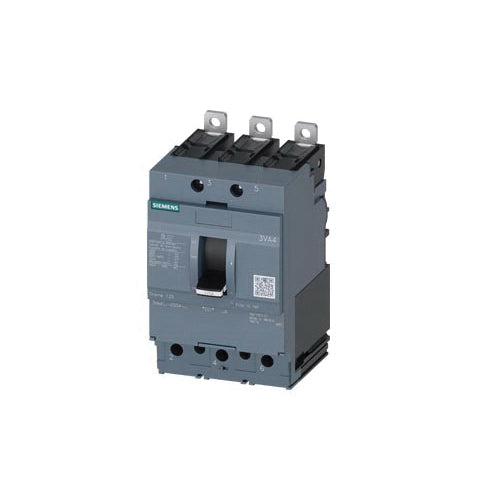

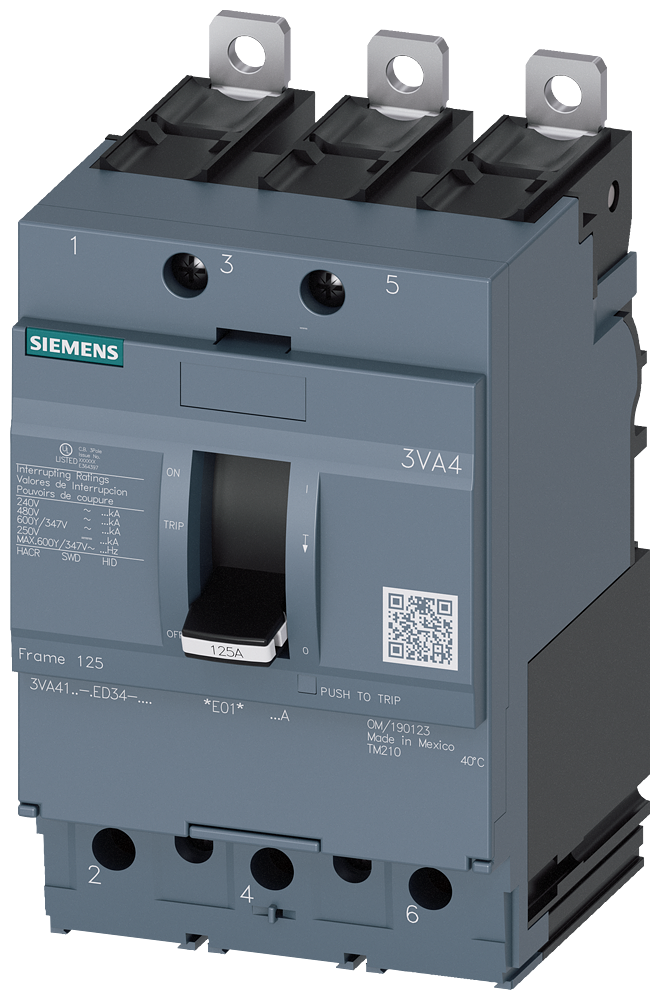

Siemens 3VA4180-4ED34-0AA0 BRKR 3VA41 3 Standard Low Voltage Molded Case Circuit Breaker

Product Description

The Siemens 3VA4180-4ED34-0AA0 is a low voltage molded case circuit breaker designed for power distribution applications. It features a thermal-magnetic trip unit and is part of the 3VA41 family. This product is rated for 80 amps and includes three poles, ensuring reliable performance in various settings.

• Rated current: 80 A
• Enclosure type: IP40
• Dimensions: 5.5 inches high, 3 inches wide, 3.7 inches deep

Product Highlights

The Siemens 3VA4180-4ED34-0AA0 circuit breaker is suitable for residential and commercial applications. Its compact design allows for efficient use of space while maintaining high performance.

Product Information

Standard Information

• Brand: Siemens
• Product ID: 1810164

Technical Specifications

• Amperage Rating: 80 A
• Connection Type: Aluminum Wire/Load End/Lug
• Interrupt Rating: 14 kA, 25 kA, 65 kA
• Number of Poles: 3
• Temperature Rating: -25 to 70 deg C
• Trip Type: TM210 Thermal Magnetic
• Wire Size: 8 to 3/0 AWG
• Weight: 1.83 lb
