Product Description

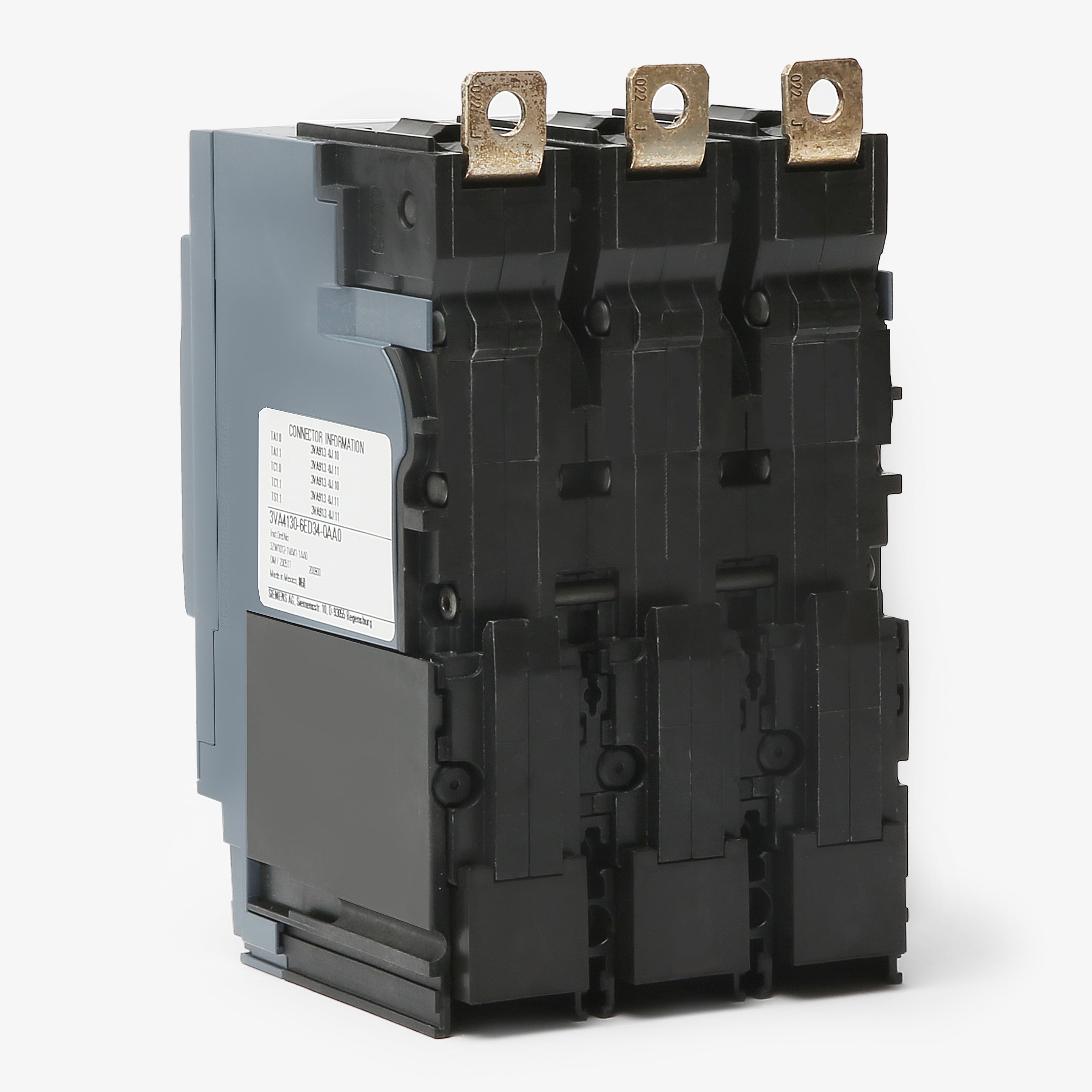

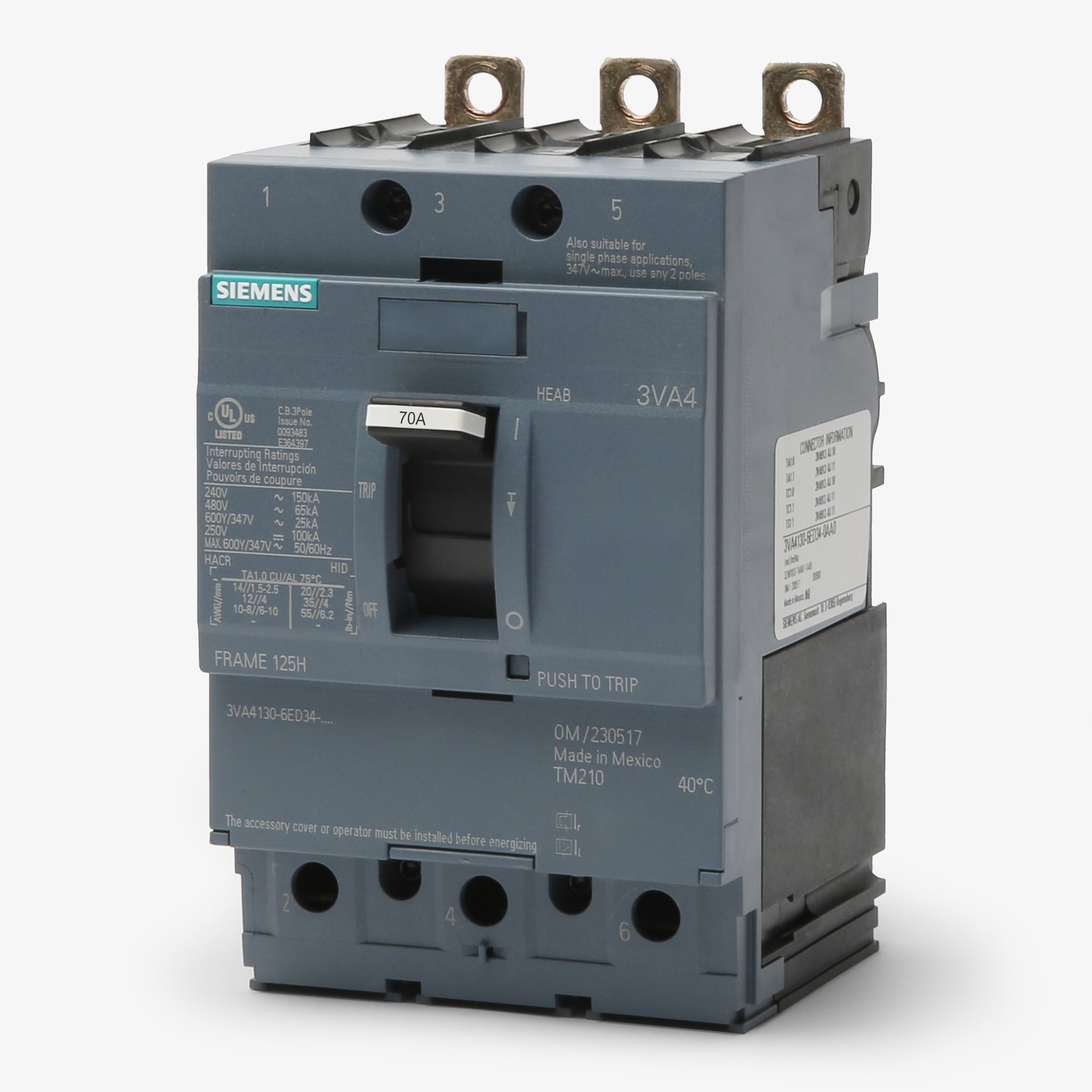

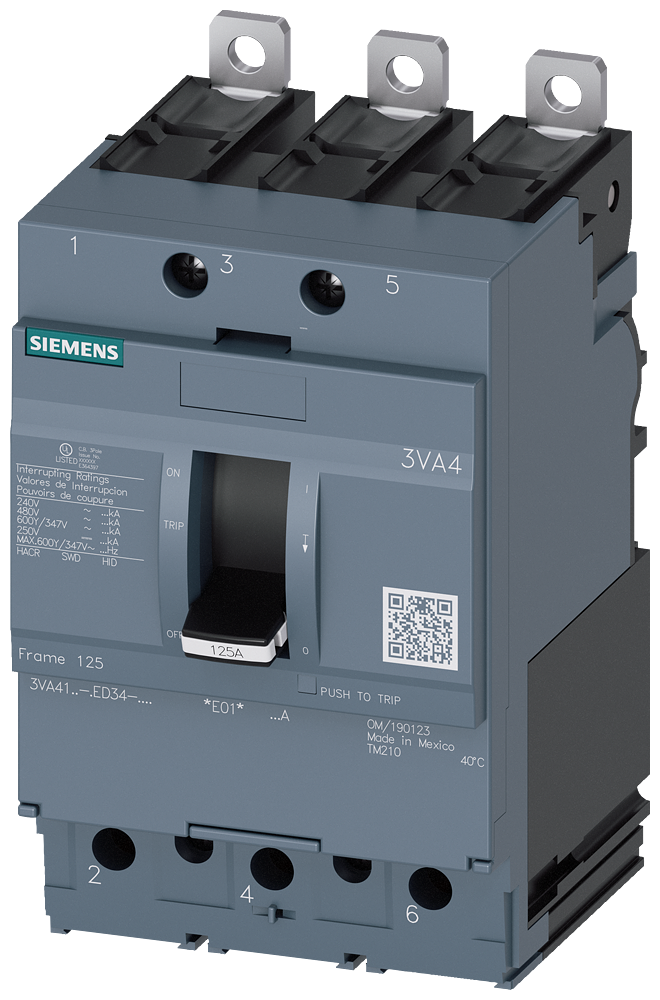

Siemens 3VA4170-6ED34-0AA0 is a low-voltage 3VA41 molded case circuit breaker with a TM210 thermal-magnetic trip unit. It is rated 70 A and three-pole, offering interrupting ratings of 25 kA at 600Y/347 V and 65 kA at 480 V. The breaker has load-side lugs only, compact dimensions (3 x 5.5 x 3.7 inches), and is intended for overcurrent and short-circuit protection in distribution and industrial panels.
- TM210 thermal-magnetic trip unit with fixed Ir and fixed Ii; long-time and instantaneous elements (LI)
- Rated current 70 A, 3-pole configuration with high interrupting ratings (25 kA @ 600Y/347 V; 65 kA @ 480 V)
- Load-side lugs only, bolt-on mounting compatibility, compact dimensions 3 x 5.5 x 3.7 inches
Product Highlights
70 A three-pole molded case breaker with TM210 thermal-magnetic trip and high interrupting capacity for industrial distribution panels
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: 3VA4170-6ED34-0AA0
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Siemens
-
Manufacturer Part Number: 3VA4170-6ED34-0AA0
-
Product Type: Low-voltage molded case circuit breaker
-
Series / Frame: 3VA41
-
Trip Unit: TM210 (thermal-magnetic) with fixed Ir and fixed Ii
-
Trip Function: Long-time and instantaneous (LI); fixed thermal and fixed magnetic
-
Rated Current: 70 A
-
Poles: 3
-
Interrupting Rating: 25 kA at 600Y/347 V; 65 kA at 480 V; 100 kA at 240 V; 100 kA at 250 VDC
-
Voltage Rating: 600Y/347 VAC; 480 VAC; 480Y/277 VAC; 240 VAC; 250 VDC
-
Frequency Rating: 50/60 Hz
-
Mounting Type: Bolt-on
-

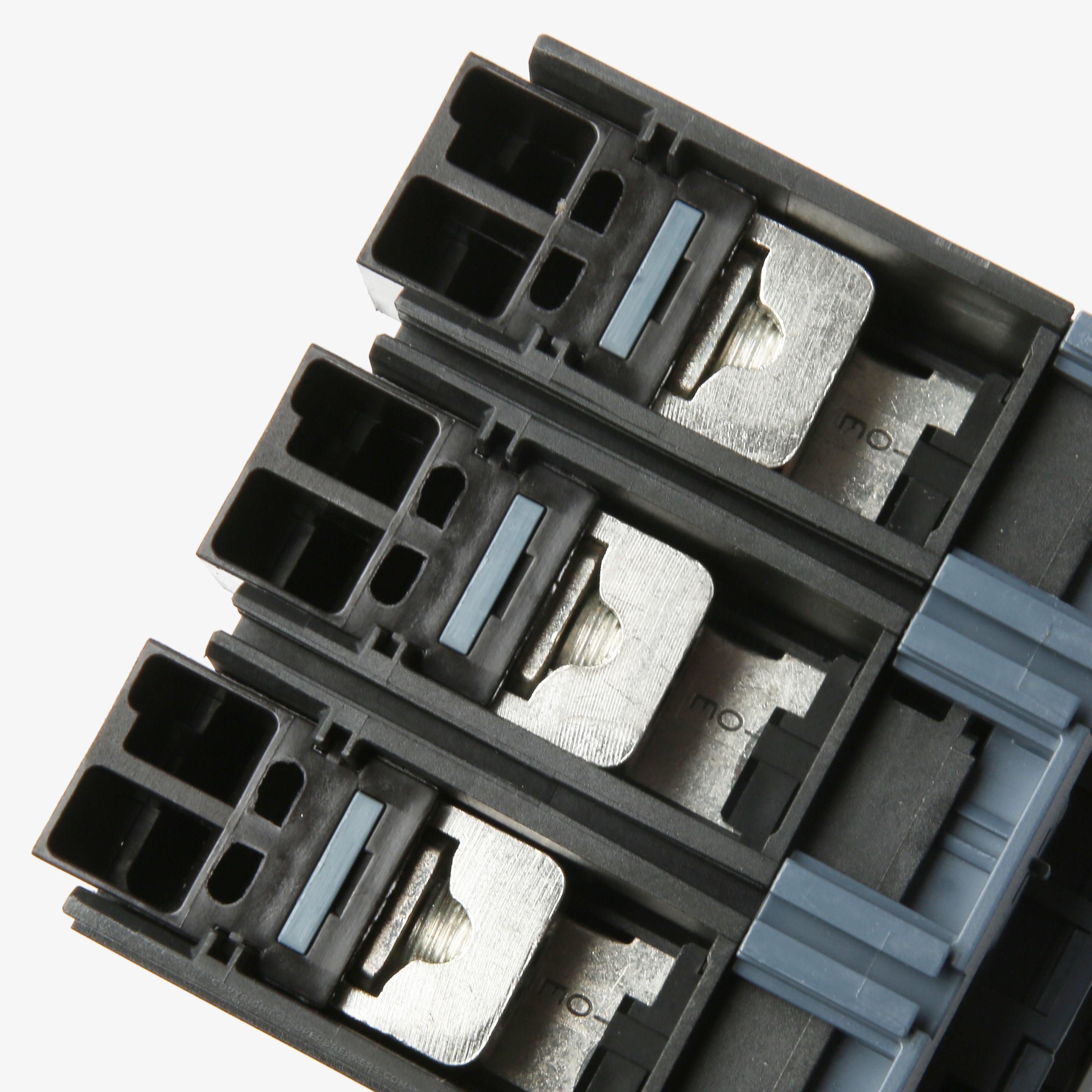

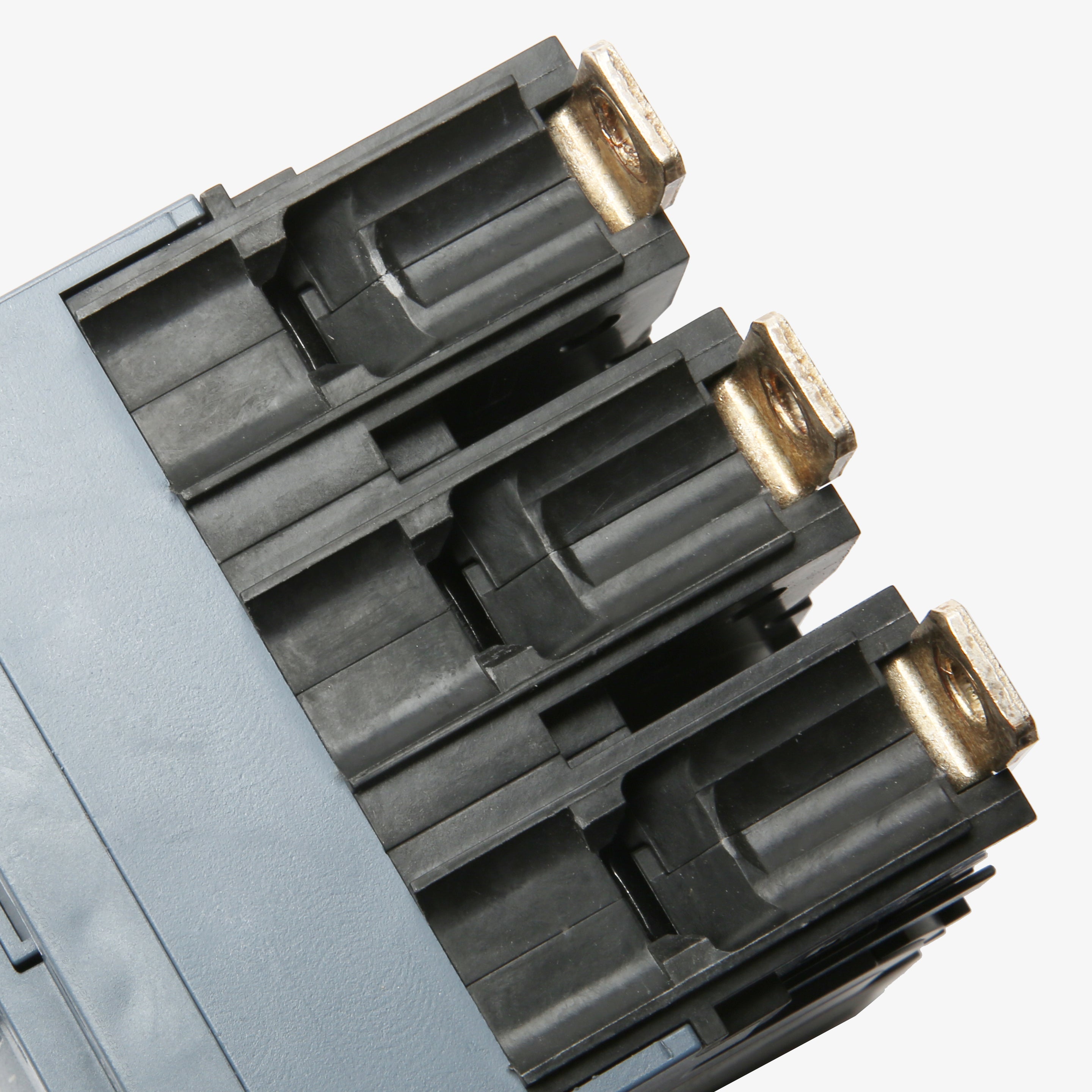

Terminal Type: Lugs (installed on load side only)
-
Wire Size: 14 AWG - 3/0 AWG (general); aluminum wire/load side (1) 8 to 3/0 AWG
-
Enclosure Rating: IP40
-
Operating Temperature: -25 to 70 °C
-
Dimensions (W x H x D): 3 x 5.5 x 3.7 inches
-
Weight: 1.83 lb
-
Country of Origin: Mexico
-
Standards / Certifications: CSA C22.2 No. 5; HACR Rated; IEC 60947-2; UL 489; CE; CSA; UL
-
Accessories / Options: Shunt trip; Auxiliary switch; Undervoltage release; Alarm switch
-
Replacement For: HED43B070; HHED63B070
-
GTIN: 00804766944086
