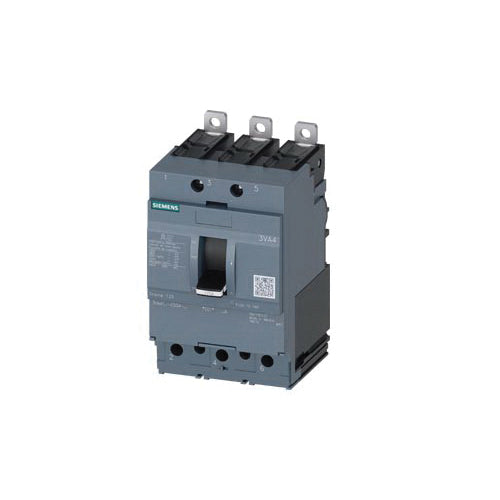

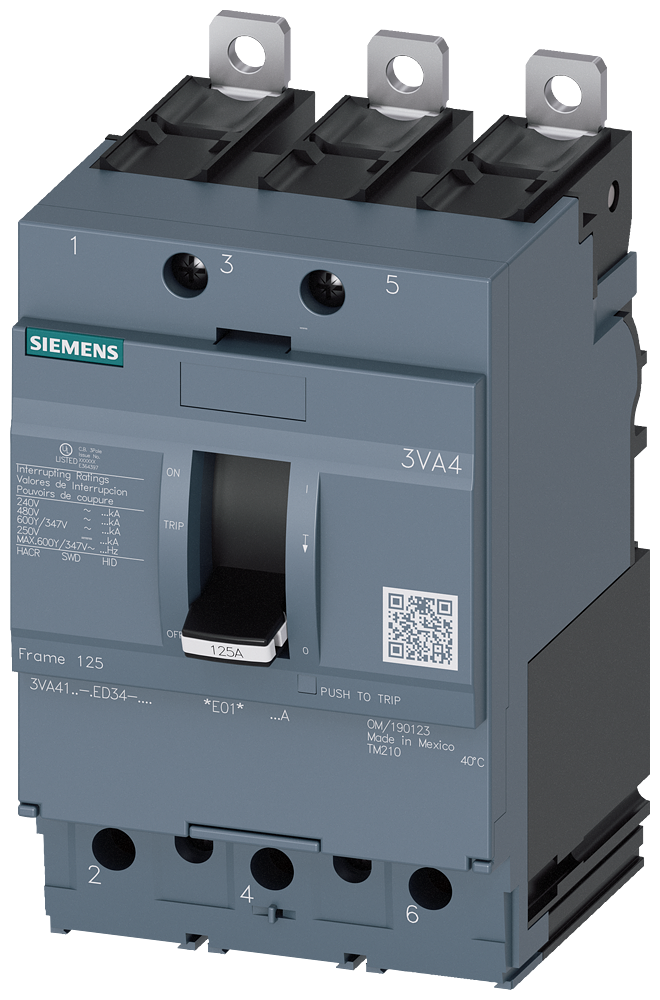

Siemens 3VA4170-4ED34-0AA0 Molded Case Circuit Breaker 70A 3 Pole Lugs Installed in Load

Product Description

Siemens 3VA4170-4ED34-0AA0 Molded Case Circuit Breaker provides reliable circuit protection and is designed for low voltage applications. It features a thermal-magnetic trip unit and is rated for seventy amps with three poles. This circuit breaker is suitable for installation with lugs on the load side only.

• 3 Pole configuration for flexible installation options.
• Rated at 70A for efficient power distribution.
• Compact dimensions make it easy to fit in tight spaces.

Product Highlights

This circuit breaker is designed for use in residential and commercial electrical systems. It meets strict safety and performance standards.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Amperage Rating: 70 A
• Connection Type: Aluminum Wire/Load End/Lug
• Dimensions: 5.5 in H x 3 in W x 3.7 in D
• Enclosure Type: IP40
• Frame: 125/150 A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 14 kA, 25 kA, 65 kA
• Number of Poles: 3
• Series: 3VA41
• Temperature Rating: -25 to 70 deg C
• Trip Range: 70 to 700 A
• Trip Type: TM210 Thermal Magnetic
• Type: Class S Standard Low Voltage
• Wire Size: 8 to 3/0 AWG
