Siemens 3VA4160-6ED24-0AA0 BRKR 3VA41 2

Product Description

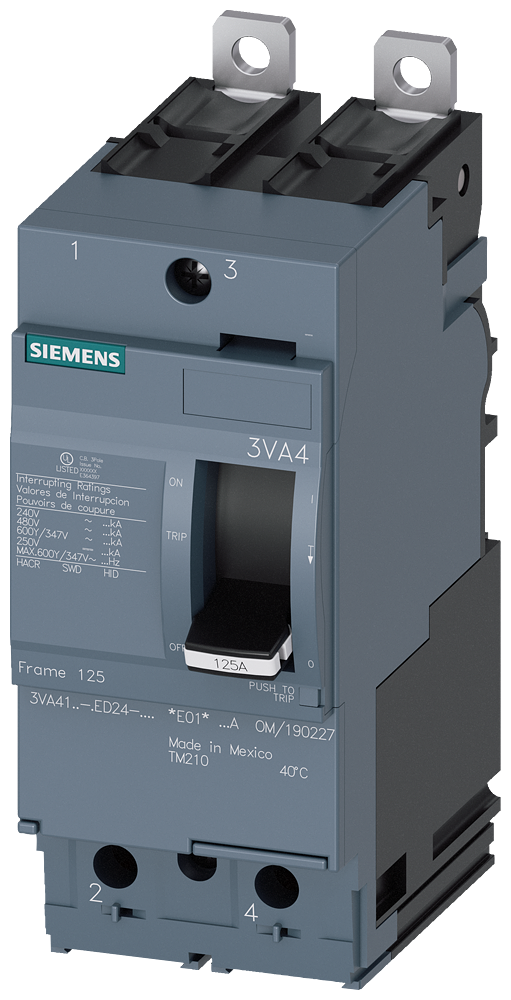

The Siemens 3VA4160-6ED24-0AA0 is a low voltage molded case circuit breaker. It features a thermal-magnetic trip unit and is designed with a two-pole configuration for reliable circuit protection. The breaker operates at a current rating of sixty amps with a high breaking capacity suitable for various applications.

• Thermal-magnetic trip for effective operation.
• High breaking capacity at various voltage levels.
• Compact design measuring two inches wide, five point five inches high, and three point seven inches deep.

Product Highlights

This circuit breaker is ideal for power distribution systems requiring dependable safety and performance.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3VA4160-6ED24-0AA0

Technical Specifications

• Dimensions: Width - five point three one zero inches, Height - two point two eight inches, Length - six point six one inches
• Weight: One point three one zero pounds
• Number of Poles: Two Pole
• Country of Origin: Mexico
• Breaking Capacity: 25kAIC at 600Y/347, 65kAIC at 480V
• Trip Unit: TM210 with fixed settings
• Special Features: Lugs installed in load side only
