Siemens 3VA4140-6ED34-0AA0 BRKR 3VA41 3

Product Description

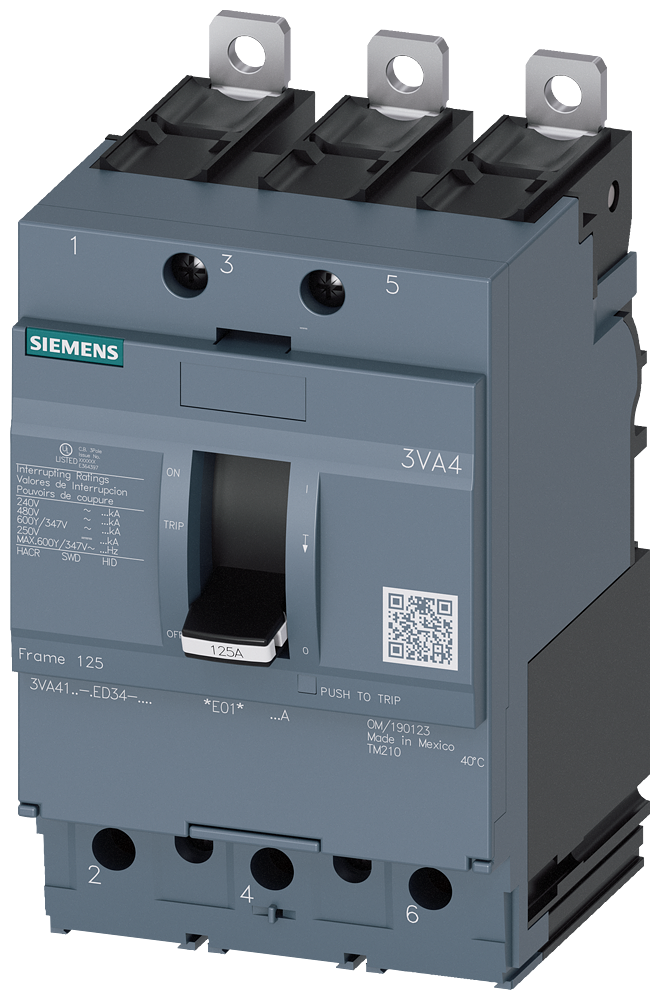

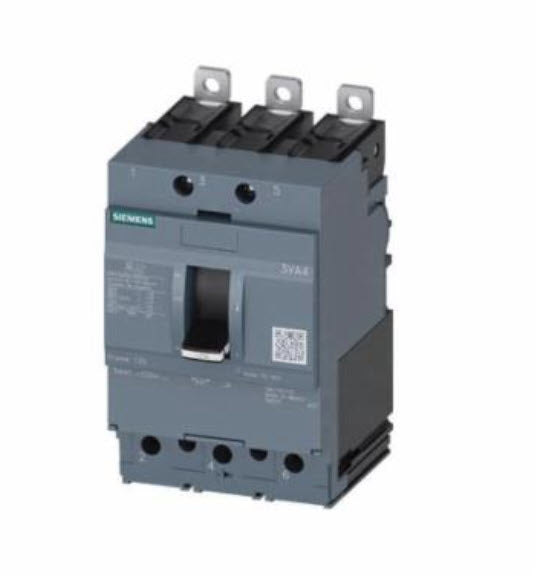

The Siemens 3VA4140-6ED34-0AA0 is a low voltage molded case circuit breaker designed for effective electrical distribution. This circuit breaker features a thermal-magnetic trip unit, suitable for a variety of applications. It operates with a voltage rating of six hundred Y/three hundred forty-seven VAC and an amperage rating of forty A. The breaker has a high interrupt rating which ensures reliability in fault conditions.

• Voltage rating: 600 Y/347 VAC
• 40 A amperage rating with 3 poles
• Interrupt ratings: 25 kA at 600 Y/347 V, 65 kA at 480 V

Product Highlights

This molded case circuit breaker is engineered to provide robust performance and safety in electrical systems. It features a TM210 thermal magnetic trip mechanism that enhances operational safety by ensuring that the circuit is interrupted under fault conditions.

Product Information

Standard Information

• Brand: Siemens
• Type: Low Voltage

Technical Specifications

• Voltage Rating: 600 Y/347 VAC
• Amperage Rating: 40 A
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 25 kA at 600 Y/347 V, 65 kA at 480 V
• Frame: 3VA41 125 A
• Trip Type: TM210 Thermal Magnetic
• Dimensions: 5.310 inches (width) x 3.46 inches (height) x 6.3 inches (length)
• Country of Origin: Mexico
