Siemens 3VA4130-5ED24-0AA0 BRKR 3VA41 2

Product Description

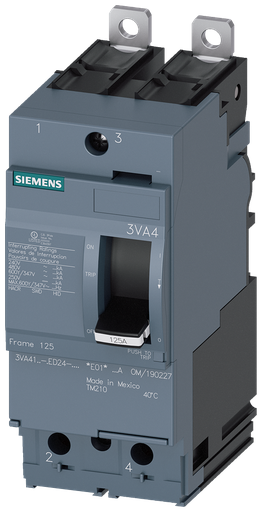

The Siemens 3VA4130-5ED24-0AA0 is a low voltage molded case circuit breaker designed for reliable electrical distribution. This 30 amp, two-pole breaker offers both thermal and magnetic trip capabilities. It is suitable for various applications, particularly where high interrupt capacity is required.

• Rated for 30A and 35kA at 480V.
• Compact dimensions: Width is five point three inches, height is two point two eight inches, and length is six point six one inches.
• Bolt-on connection for secure installation.

Product Highlights

Perfect for protecting electrical circuits from overloads and short circuits, this breaker ensures safety and compliance with UL standards.

Product Information

Standard Information

• Brand: Siemens Canada
• Country of Origin: Mexico

Technical Specifications

• Current Rating: 30 Amp
• Voltage Rating: 480 Volt
• Interrupt Rating: 35 kA at 480V
• Number of Poles: 2 Pole
• Dimensions: 5.310 inches (Width), 2.28 inches (Height), 6.61 inches (Length)
• Weight: 1.310 lb
• Standard Compliance: CSA File Number LR18416, File Number E92074, UL Listed
• Tc Connection: Bolt-on
