Siemens 3VA4125-5ED34-0AA0 BRKR 3VA41 3

Product Description

The Siemens circuit breaker 3VA4125-5ED34-0AA0 is a low voltage molded case circuit breaker designed for safety in electrical distribution. This unit features a thermal-magnetic trip unit suitable for a range of applications. It is rated for twenty-five amperes and has a three-pole configuration.

• Thermal-magnetic trip unit
• Rated current of twenty-five amperes
• Three-pole configuration for versatile installations

Product Highlights

This circuit breaker is ideal for use in industrial and commercial environments, offering medium breaking capacity for effective circuit interruption. It complies with UL standards and is designed for reliable performance.

Product Information

Standard Information

• Manufacturer: Siemens
• Product ID: 3VA4125-5ED34-0AA0

Technical Specifications

• Number of Poles: 3 Pole
• Rated Amperage: 25 Amps
• Breaking Capacity: 35 kA at 480V
• Trip Unit: TM210

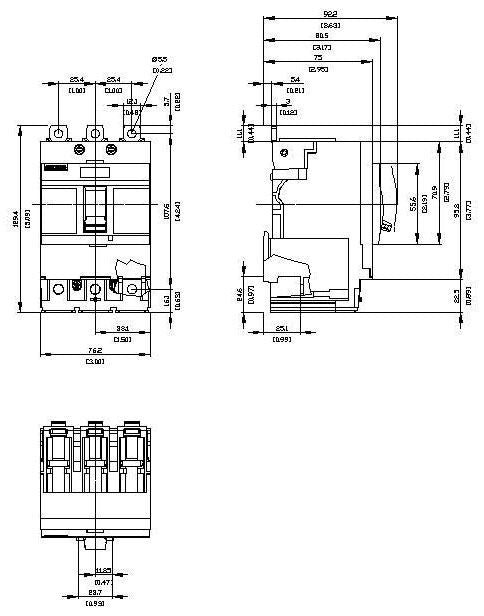

• Dimensions: Width - five point three one zero inches, Height - three point four six inches, Depth - six point three inches
• Weight: one point eight three zero lbs
• Country of Origin: Mexico
