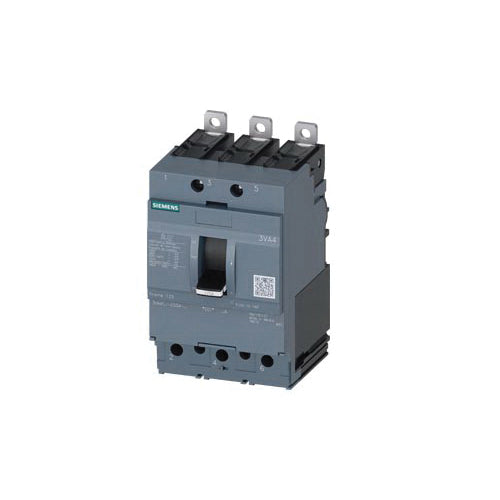

Siemens 3VA4125-4ED34-0AA0 Circuit Breaker, 3VA4 UL Frame, 3-Pole 25A

Product Description

Siemens offers the 3VA4125-4ED34-0AA0 Circuit Breaker, designed for low voltage applications. This molded case circuit breaker features a thermal-magnetic trip unit, providing reliable protection for electrical systems. The 3VA4 UL Frame ensures compatibility with various installations. It is rated for 25 Amperes and includes three poles. This circuit breaker is ideal for use in power distribution setups.

• Thermal-magnetic trip unit for dependable operation
• Rated for 25A with a breaking capacity of 14kAIC at 600Y/347V
• Compact dimensions for easy installation

Product Highlights

This circuit breaker includes installed lugs on the load side, facilitating simplified connections.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 25 A
• Connection Type: Aluminum Wire/Load End/Lug
• Dimensions: 5.5 in H x 3 in W x 3.7 in D
• Enclosure Type: IP40
• Frame: 125/150 A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 14 kA, 25 kA, 65 kA
• Number of Poles: 3
• Series: 3VA41
• Temperature Rating: -25 to 70 deg C
• Trip Range: 25 to 300 A
• Trip Type: TM210 Thermal Magnetic
• Type: Class S Standard Low Voltage
• Wire Size: 8 to 3/0 AWG
