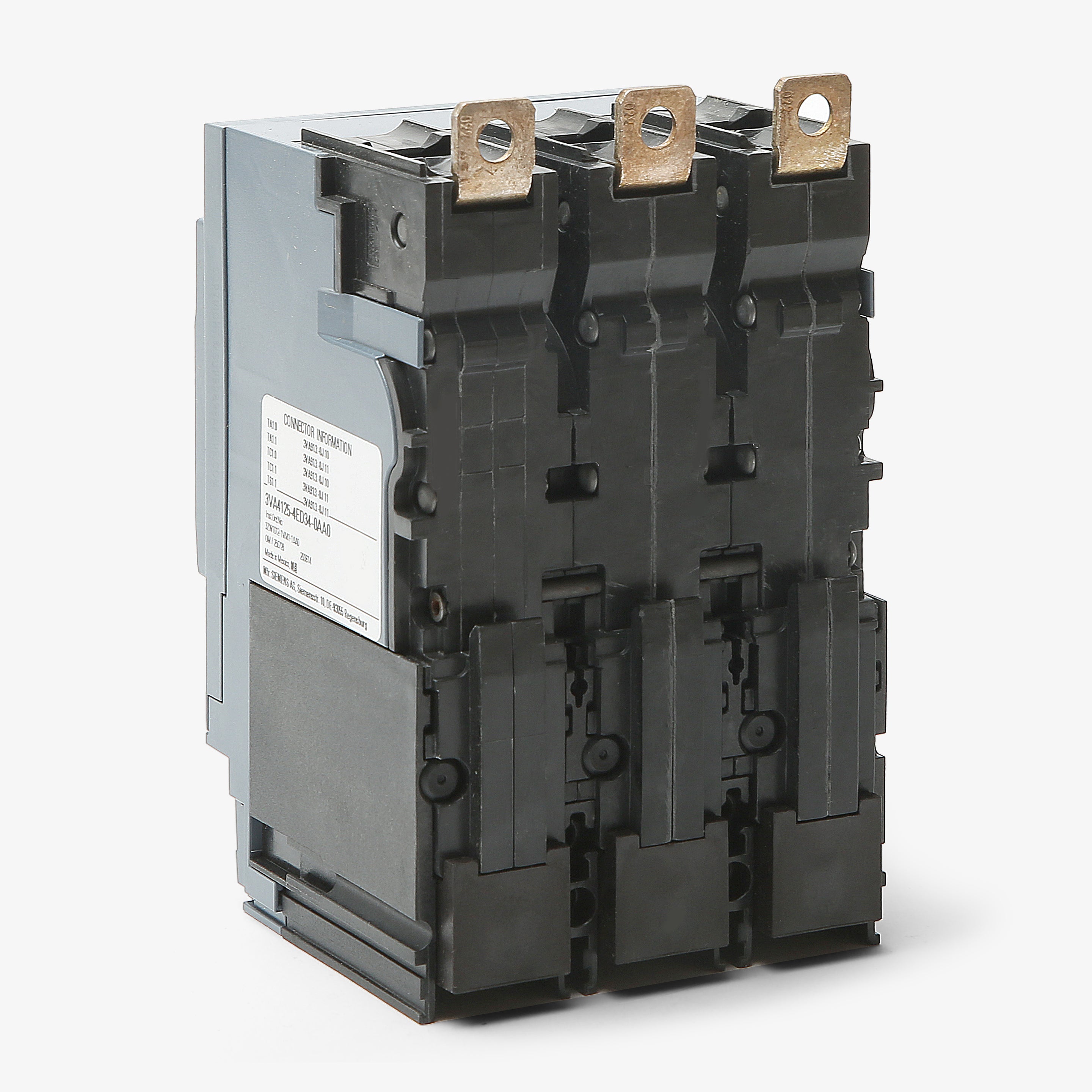

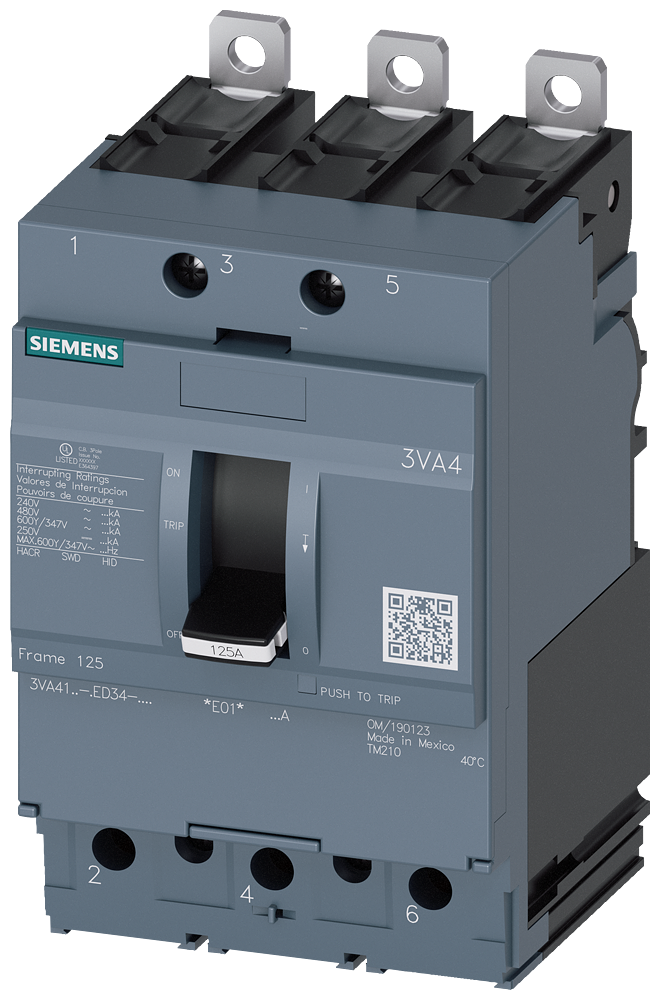

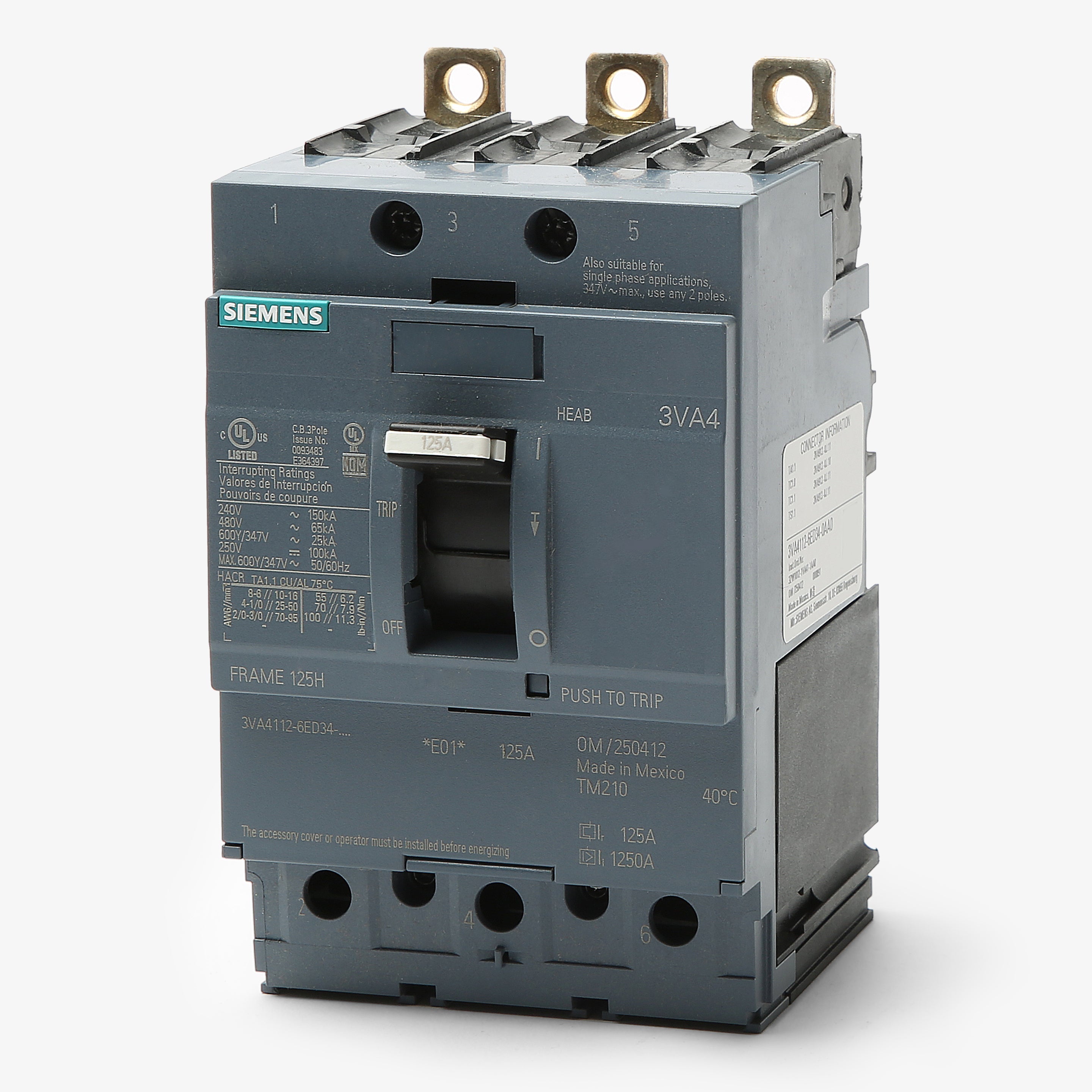

Siemens 3VA4112-6ED34-0AA0 molded case circuit breaker 125A 3-pole

Product Description

The Siemens 3VA4112-6ED34-0AA0 is a low voltage 3VA UL molded case circuit breaker equipped with a thermal-magnetic trip unit. This 3VA41 frame breaker features a high (Class H) breaking capacity, rated at 125A for 3-pole applications. It provides an interrupting capacity of 25KAIC at 600Y/347V and 65KAIC at 480V. The TM210 trip unit includes fixed Ir and fixed Ii settings, with lugs installed on the load side only.

• Low voltage 3VA UL molded case circuit breaker with thermal-magnetic trip unit.
• Features a TM210 trip unit with fixed Ir and fixed Ii settings for precise protection.
• High (Class H) breaking capacity, 125A 3-pole, with 65KAIC at 480V.

Product Highlights

Bolt-on mounting configuration designed for seamless integration into Siemens P1, P2, and P3 panelboards.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA4112-6ED34-0AA0
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• MPN: 3VA4112-6ED34-0AA0
• Poles: 3 Pole
• Country of Origin: Mexico
• Trip Unit Type: Thermal - Magnetic
• Frame Type: 3VA41
• Breaking Capacity: High (Class H)
• Amperage: 125A
• Interrupting Rating at 600Y/347V: 25KAIC
• Interrupting Rating at 480V: 65KAIC
• Trip Unit Model: TM210
• Trip Unit Settings: Fixed Ir Fixed Ii

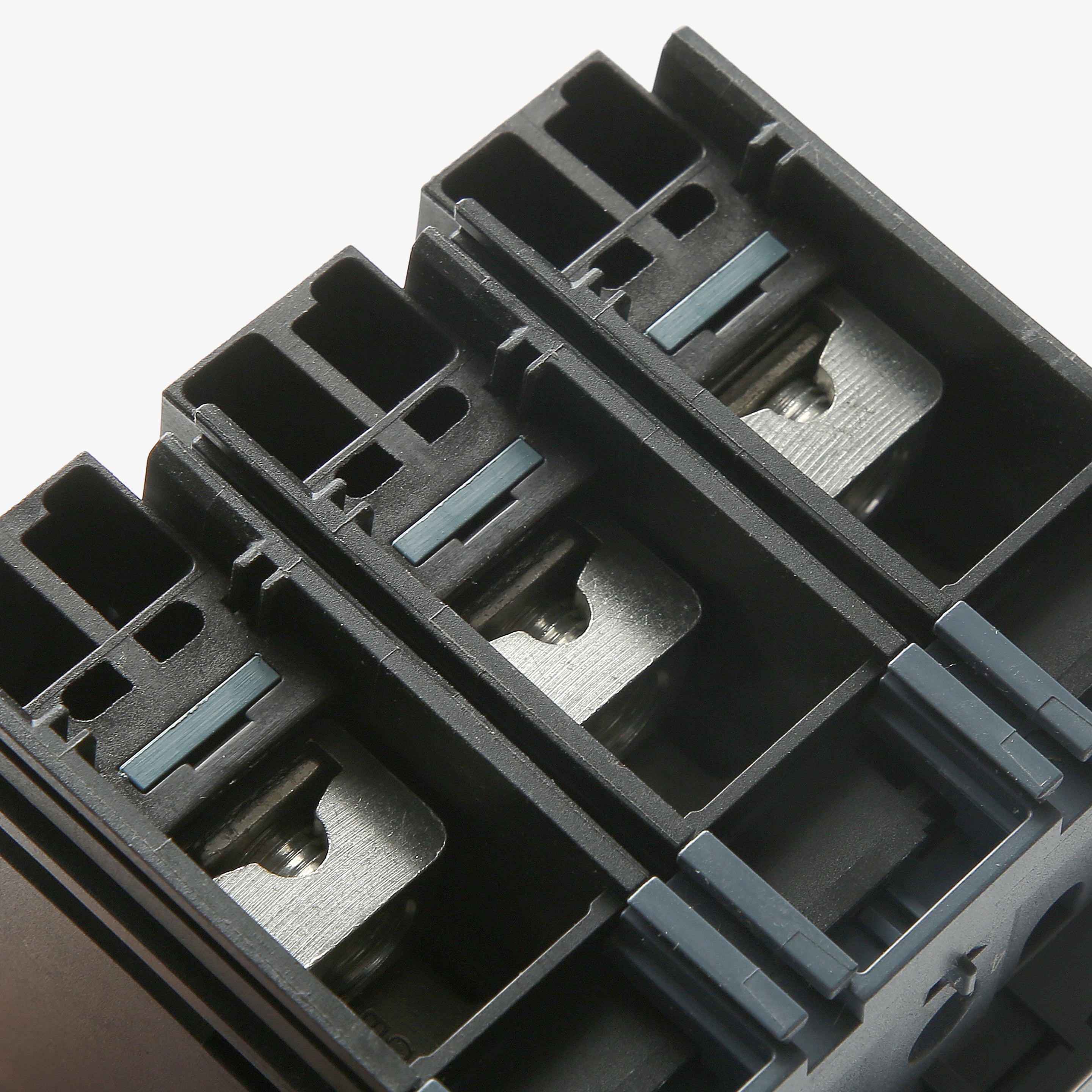

• Special Features: Lugs installed in load side only
• Type: Molded Case Circuit Breaker
• Series: 3VA4
• Voltage Rating: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC
• Phase: 3
• AIC Rating: 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3 Panelboards, Switchboards
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 8 AWG - 3/0 AWG (Cu/Al)
• Max Wire: 3/0 AWG
• Min Wire: 8 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle
• Accessories: Load Side Lugs
• Standards: CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489
• Approval: CE, CSA, EAC, NOM, UL
• Operating Temperature: -25C to 70C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip
• Applications: Electrical Distribution
• Sub Brand: Molded Case Circuit Breakers
• Category: Molded Case Breakers / 3-Pole
