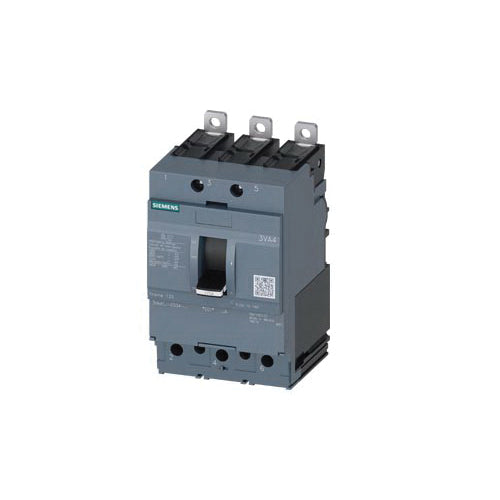

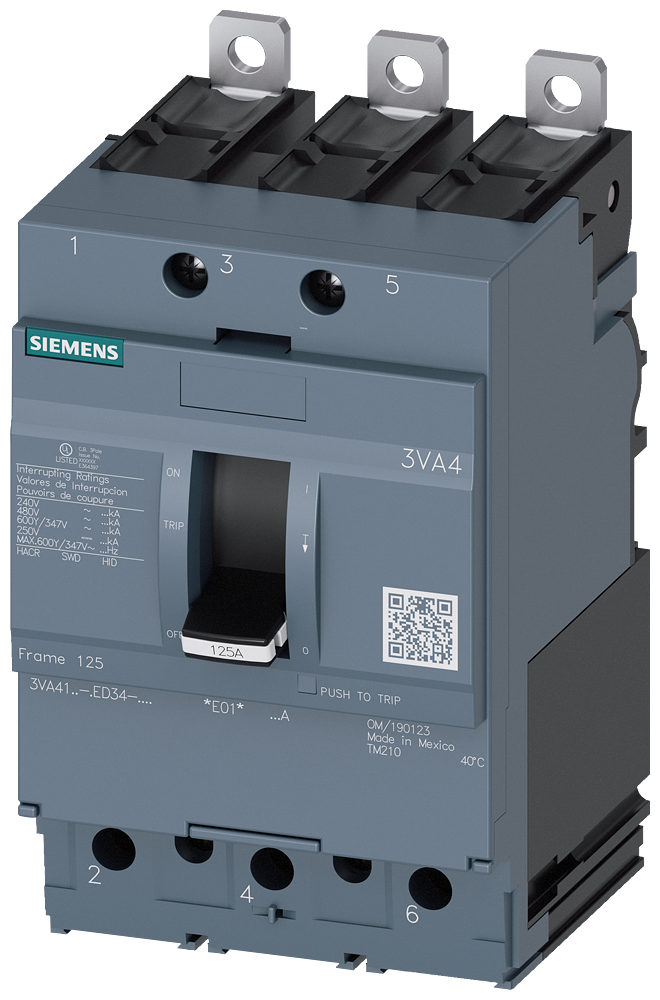

Siemens 3VA4112-4ED34-0AA0 3VA41 Class S Standard Low Voltage Molded Case Circuit Breaker 125 A 3 Poles

Product Description

The Siemens Sentron 3VA4112-4ED34-0AA0 molded case circuit breaker is designed for low voltage applications. This breaker features a 125 amp rating and includes three poles for effective circuit protection. It is optimal for environments that require reliable electrical safety.

• 125 A amperage rating
• Three-pole configuration
• Class S standard low voltage

Product Highlights

Siemens provides this breaker with enhanced features such as illuminated rotary handles and a smaller footprint compared to other models.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3VA4112-4ED34-0AA0

Technical Specifications

• Type: Class S Standard Low Voltage
• Amperage Rating: 125 A
• Number of Poles: 3
• Interrupt Rating: 14 kA, 25 kA, 65 kA
• Trip Type: TM210 Thermal Magnetic
• Trip Range: 125 to 1250 A
• Connection Type: Aluminum Wire/Load End/Lug
• Wire Size: 8 to 3/0 AWG
• Enclosure Type: IP40
• Dimensions: 5.5 in H x 3 in W x 3.7 in D
• Temperature Rating: -25 to 70 deg C
• Frequency Rating: 50/60 Hz
