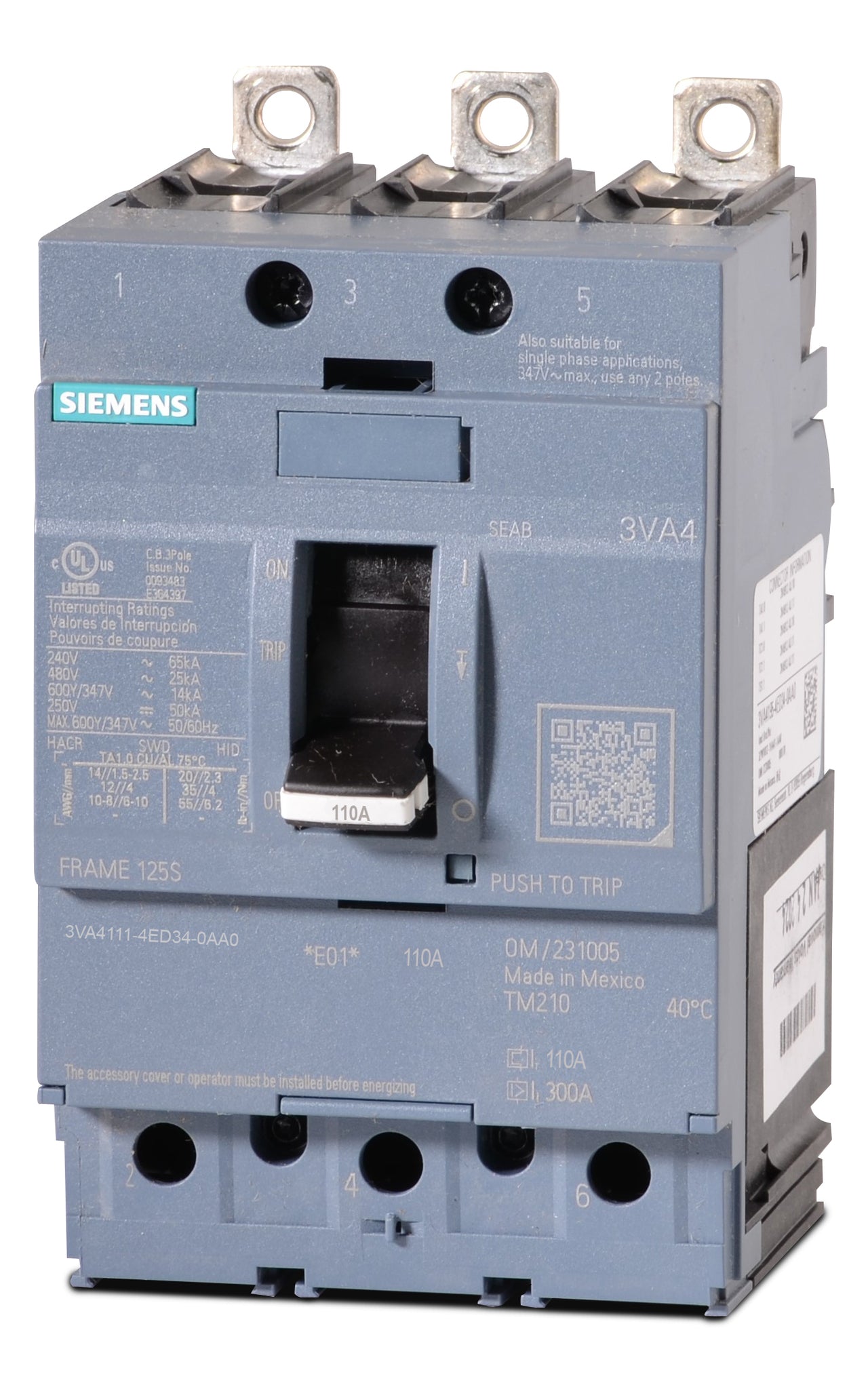

Siemens 3VA4111-4ED34-0AA0 110A 3 Pole Molded Case Circuit Breaker

Product Description

The Siemens 3VA4111-4ED34-0AA0 is a 110A molded case circuit breaker that delivers fixed thermal-magnetic trip functions for commercial applications. It is an exact fit for Siemens P1, P2, and P3 panelboards and replaces older SEAB series components. The bolt-on unit features load side lugs and accepts 8 to 3/0 AWG wire. Rated for 25 kAIC at 480VAC.

• Delivers fixed thermal-magnetic trip functions
• Exact fit for Siemens P1, P2, and P3 panelboards
• Replaces older SEAB series components

Product Highlights

This breaker ensures robust fault clearing with HACR certification and current-limiting capabilities.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA4111-4ED34-0AA0
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Series: 3VA4
• Amperage: 110A
• Voltage: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC
• Poles: 3
• Phase: 3
• AIC Rating: 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3 Panelboards, Switchboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 8 AWG - 3/0 AWG (Cu/Al)
• Max Wire: 3/0 AWG
• Min Wire: 8 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle
• Accessories: Load Side Lugs
• Standards: CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489
• Approval: CE, CSA, EAC, NOM, UL
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip
• Frame: 125/150 A
• Interrupt Rating: 14 kA, 25 kA, 65 kA
• Trip Range: 110 to 1100 A
• Type: Class S Standard Low Voltage
• Wire Size: 8 to 3/0 AWG
• Connection type: Aluminum Wire/Load End/Lug
• Part Number: 3VA4111-4ED34-0AA0
• Manufacturer: Siemens Breakers
• Family: 3Va
• Category: Molded Case Breakers / 3-Pole
• Alternate Mfr Part Number: 3VA4111-4ED34-0AA0
• Frequency Rating: 50/60 Hz
• Enclosure Type: IP40
• Number Of Poles: 3 Pole
• Sub Brand: Molded Case Circuit Breakers
