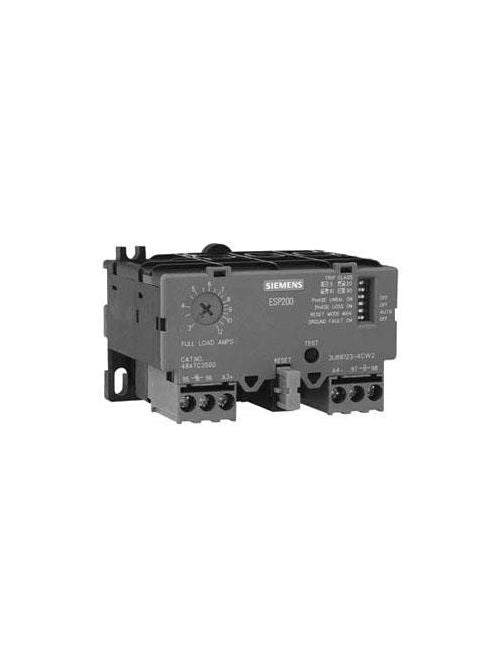

Siemens 3UB81234JW2 Overload Relay 100 to 300 Amp 1NO 1NC

Product Description

The SIEMENS 3UB81234JW2 is a solid state overload relay designed for motor protection, with a range of 100 to 300 Amp. It features a switchable Class 5...30, suitable for direct mounting and stand-alone applications. The relay includes main circuit windows and auxiliary circuit screw terminals, with manual and automatic reset options.

• Motor protection with 100 to 300 Amp range
• Class 5...30, switchable for various starting conditions
• Manual and automatic reset options

Product Highlights

Solid state overload relay for motor protection with adjustable settings and versatile mounting options.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3UB81234JW2
• Country of Origin: Czech Republic

Technical Specifications

• Brand: Siemens
• Height: 3.15 Inch
• Length: 4.22 Inch
• Width: 3.350 in
• Country of Origin: Czech Republic
• Contact Current Rating: 300 A
• Manufacturer Part Number: 3UB81234JW2
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -25 °C
• Mounting Style: Panel Mount
• Series: ESP200
• Temperature Operating Range: -25 to 60 °C
• Terminal Type: Screw
• Amperage Rating: 100 to 300, 100 to 300 A
• Contact Rating: 300 A at 600 VAC
• Mounting type: Direct/Stand Alone
• Sub-Category: Overload Relay
• Other Names: 3UB8123-4JW2
• Type: 3UB8
• Amperage Min: 100
• Amperage Max: 300
• Relay Style: Solid State
• Accessory Type: Thermal Overload Relay
• For Use With/Related Products: Motor Protection
• Base Product Number: 3UB8123
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• ECCN: EAR99
• HTSUS: 8536.49.0075
