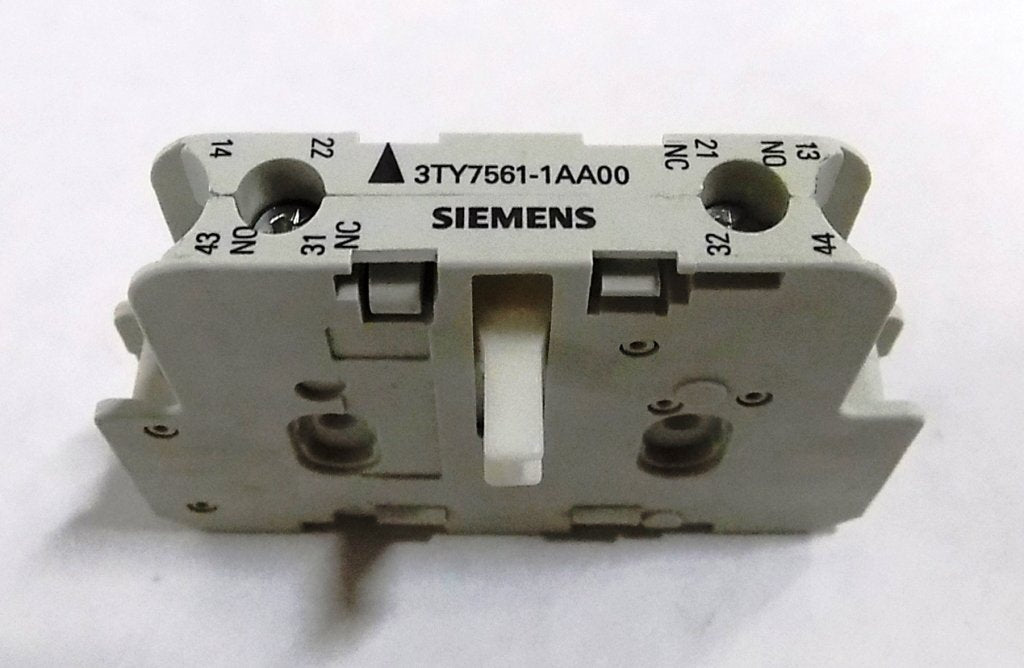

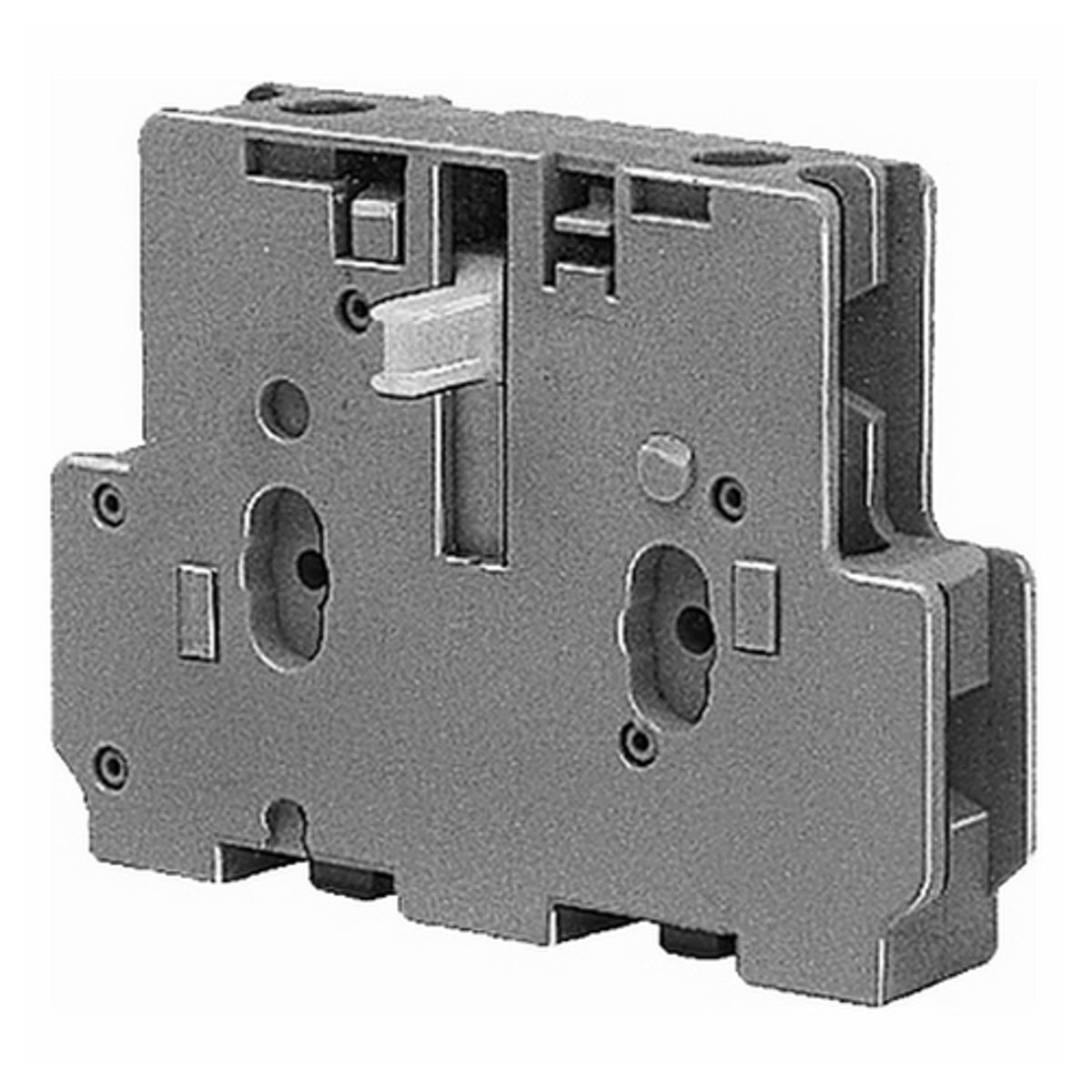

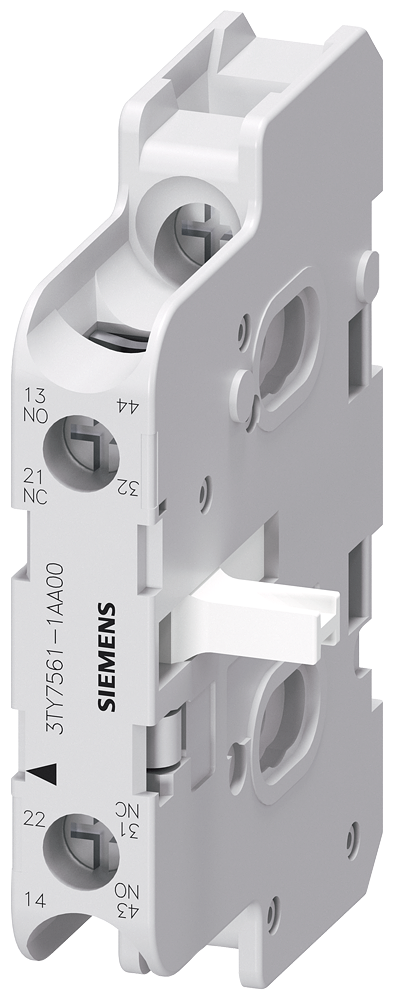

Siemens 3TY7561-1AA00 Auxiliary Contact Block 1NO 1NC

Product Description

The SIEMENS 3TY7561-1AA00 is an auxiliary switch block suitable for size 2...14, designed for left or right installation. It is suitable for use as a contactor relay or power contactor. The block features a 1NO 1NC contact configuration and IP20 enclosure.

• Auxiliary switch block
• Suitable for size 2...14
• 1NO 1NC Contact Configuration

Product Highlights

This auxiliary contact block is designed for easy snap-on mounting and screw terminal connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TY7561-1AA00
• Country of Origin: Turkey

Technical Specifications

• Brand: Siemens
• Width: 1.930 in
• Height: 2.88 Inch
• Length: 2.05 Inch
• Voltage: 690 Volt
• Amperage: 2.3 Amp
• Enclosure: IP20
• Applications: For Contactor Relay and Power Contactor
• Mounting Type: Snap-On
• Terminal Type: Screw
• Conductor Size: 18-12 AWG
• Connection Type: Screw Connection
• Country of Origin: Turkey
• Contact Configuration: 1NO, 1NC
• Catalog Number: 3TY7561-1AA00
• Manufacturer: SIEMENS
• Made in USA: No
• Part Number: 3TY7561-1AA00
• Family: World Series
• Category: Switches
• Type: 3TY7
• Alternate Mfr Part Number: 3TY7561-1AA00
• Contact Current Rating: 10 A
• Contact Form: SPST-NC + SPST-NO
• Manufacturer Part Number: 3TY7561-1AA00
• Maximum Operating Temperature: 55 °C
• Minimum Operating Temperature: -25 °C
• Mounting Style: Front Mount
• Number of Contacts: 2
• Series: 3TY7 Series
• Temperature Operating Range: -25 to 55 °C
