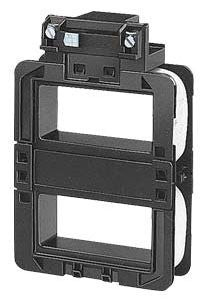

Siemens 3TY7463-0AV0 Ac Operated Contactor Coil

Product Description

The SIEMENS 3TY7463-0AV0 is an AC-operated replacement coil designed for use in compatible Siemens contactor assemblies. The coil is the electromagnetic core of a contactor, generating the magnetic field that pulls in the armature and closes the power contacts when control voltage is applied. Technicians install replacement coils when the original coil fails due to burnout, insulation breakdown, or mechanical damage, restoring the contactor to service without replacing the entire assembly. At 0.304 pounds and compact dimensions, this coil is a direct-fit service part suited for licensed electricians and industrial maintenance professionals.

This coil is applicable to AC-powered control circuits in commercial and light industrial electrical systems where Siemens contactor hardware is installed. Typical applications include motor control centers, HVAC equipment contactors, pump control panels, and similar load-switching equipment. It is intended for installation by qualified electricians as part of a contactor repair or refurbishment procedure.

Key Features

• AC-operated coil providing electromagnetic actuation for compatible Siemens contactors
• Compact form factor at 3.110 inches x 2.283 inches x 1.772 inches for drop-in serviceability
• Lightweight at 0.304 pounds, minimizing added load on contactor frame
• OEM-style replacement restores full contactor function without full-assembly replacement
• Designed for reliable operation in motor control and load-switching applications

Compatibility

Designed as an OEM-style replacement coil for compatible Siemens contactor assemblies in AC-operated control circuit applications. Confirm contactor series and coil voltage rating against your existing assembly before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local electrical codes. De-energize and lock out the contactor panel before removing the original coil or handling any internal components. Verify that the replacement coil voltage rating matches the control circuit voltage of the existing contactor before installation. Do not energize the contactor until the coil is fully seated and all mechanical retention features are secured.

Technical Specifications

• Coil Operation: AC Operated
• Length: 3.110 inches
• Width: 2.283 inches
• Height: 1.772 inches
• Weight: 0.304 pounds
• UPC: 75455439912

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TY7463-0AV0
