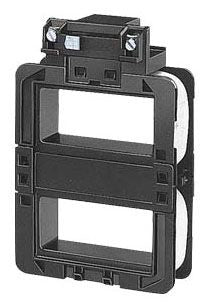

Siemens 3TY7463-0AP6 Ac Operated Contactor Coil

Product Description

The SIEMENS 3TY7463-0AP6 is an AC-operated replacement coil designed for use in Siemens contactor assemblies. The coil generates the electromagnetic field that engages the contactor, pulling in the armature to close the power circuit. It is a direct replacement component installed when the original coil fails due to burnout, insulation breakdown, or mechanical damage. Licensed electricians and industrial maintenance technicians perform this type of replacement as part of motor control center (MCC) or panel repair work. The coil measures 4.921 inches x 2.283 inches x 1.693 inches and weighs 0.269 pounds.

This coil is suited for commercial and industrial electrical applications where Siemens contactors are used to switch motor loads, lighting circuits, or other inductive loads. It is typically found in motor control centers, automated control panels, and industrial machinery. Replacement is performed during scheduled maintenance or as an emergency repair when contactor operation fails. The coil is a field-replaceable component, allowing the contactor body to be retained while only the failed coil is swapped out.

Key Features

• AC-operated coil for Siemens contactor assemblies
• Field-replaceable design allows coil swap without replacing the full contactor
• Compact form factor: 4.921 inches x 2.283 inches x 1.693 inches
• Lightweight at 0.269 pounds for ease of handling during service
• OEM-style replacement maintains original contactor performance specifications

Compatibility

Designed as an OEM-style replacement coil for Siemens AC contactor assemblies. Consult the contactor nameplate and Siemens documentation to confirm coil voltage rating and frame size compatibility before ordering.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the panel or motor control center before removing the existing coil. Verify that the replacement coil voltage rating matches the control circuit voltage before energizing. Confirm secure seating of the coil assembly within the contactor frame before returning the circuit to service.

Technical Specifications

• Coil Operation Type: AC Operated
• Length: 4.921 inches
• Width: 2.283 inches
• Height: 1.693 inches
• Weight: 0.269 pounds
• UPC: 75455420637

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TY7463-0AP6
