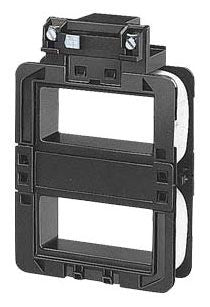

Siemens 3TY7463-0AK6 Ac Operated Contactor Coil

Product Description

The SIEMENS 3TY7463-0AK6 is an AC-operated replacement coil designed for use with compatible Siemens contactor assemblies. The coil serves as the electromagnetic core component that energizes the contactor, pulling in the armature to close the load contacts and complete the circuit. When the original coil fails due to overheating, insulation breakdown, or mechanical damage, this direct replacement restores contactor function without requiring full assembly replacement. Licensed electricians and industrial maintenance technicians are the primary installers. Dimensions measure 3.15 inches long by 2.362 inches wide by 1.693 inches tall, and the unit weighs 0.278 pounds.

AC-operated contactor coils like the 3TY7463-0AK6 are used in motor control centers, panel boards, and industrial control panels across commercial and light industrial applications. The coil is energized by an AC control voltage source, typically routed through auxiliary contacts, overload relays, or programmable control outputs. This type of replacement coil is commonly serviced during scheduled preventive maintenance intervals or following a confirmed coil failure diagnosis on an existing contactor frame.

Key Features

• AC-operated coil design for electromagnetic contactor engagement
• Direct replacement coil — restores contactor function without full assembly swap
• Compact form factor: 3.15 x 2.362 x 1.693 inches
• Lightweight construction at 0.278 pounds
• Designed to seat into compatible Siemens contactor frames

Compatibility

Designed as an OEM-style replacement coil for compatible Siemens contactor assemblies. Verify the contactor frame series and control voltage rating against your existing equipment before ordering.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and all applicable local codes. De-energize and lock out the panel or motor control center before removing the existing coil or handling any contactor components. Verify that the replacement coil AC voltage rating matches the control circuit voltage before energizing. Do not attempt to modify the coil or contactor frame during installation.

Technical Specifications

• Operation Type: AC Operated
• Length: 3.15 inches
• Width: 2.362 inches
• Height: 1.693 inches
• Weight: 0.278 pounds
• UPC: 75455420632

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TY7463-0AK6
