Siemens 3TX7144-4E5 Relay Socket 14-Pin

Product Description

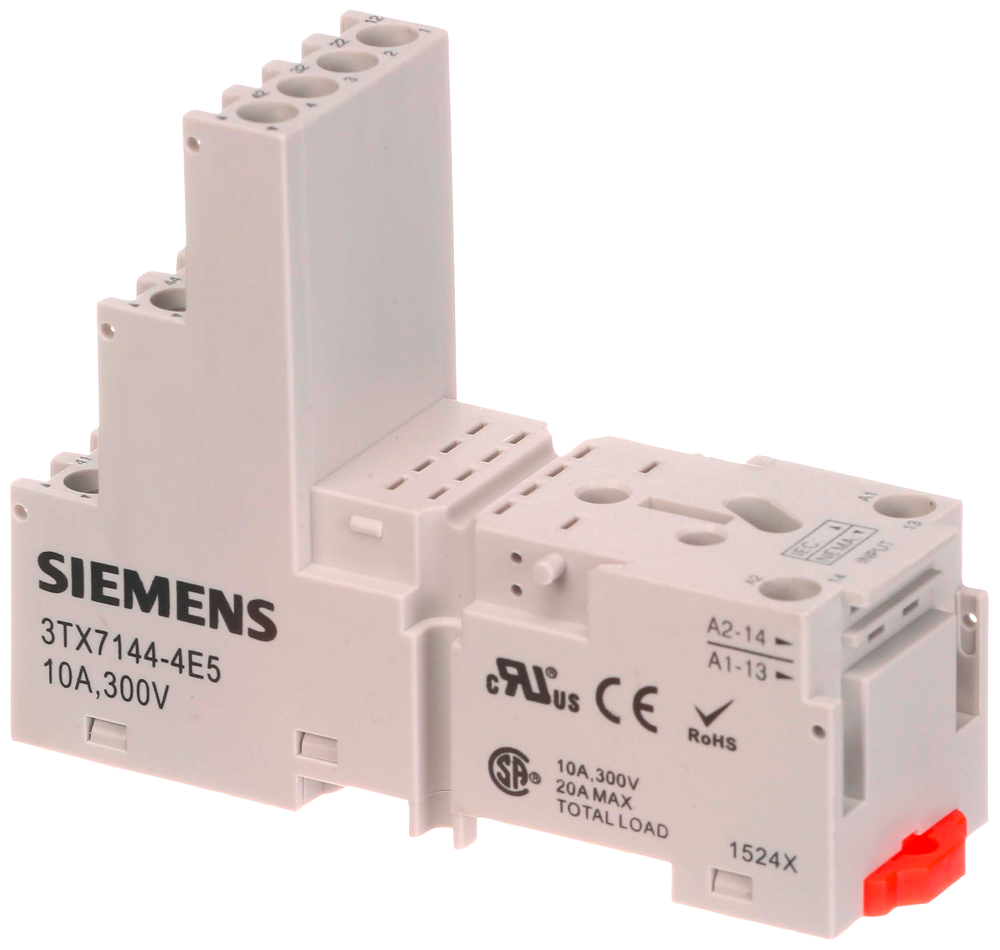

The SIEMENS 3TX7144-4E5 is a 14-pin relay socket. This touchsafe socket features elevator terminals and a screw clamp electrical connection. Designed for use with 3TX71 series plug-in relays. The relay socket is suitable for DIN rail mounting.

• 14-Pin relay socket
• Touchsafe design
• Screw terminal connection

Product Highlights

The SIEMENS 3TX7144-4E5 is a 14-pin relay socket with touchsafe design and screw terminal connection, designed for use with 3TX71 series plug-in relays.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7144-4E5
• Country of Origin: China

Technical Specifications

• Catalog Number: 3TX7144-4E5
• Brand: Siemens
• Manufacturer: Siemens
• Product ID: 771713
• Cooper Electric Part Number: 771713
• Relay Socket: Relay Socket
• Color: White
• Depth: 1.06 in
• Width: 4.6000 in
• Height: 2.4 in
• Base Style: Square
• Number of Pins: 14
• Status Indicator: None
• Compatible Relays: 3TX71 Series
• Electrical Connection: Screw Clamp
• Electrical Connection Type: Screw
• Electrical Connection - Relay Socket: Screw Clamp
• Series: TOUCHSAFE
• Suitable For Use With: 3TX71 Plug-In Relay, 3TX71 Series Plug-In Relay
• Type: Touch Safe
• UNSPSC: 39122335
• UPC: 00754554969343
• Standards: UL Listed|CSA Certified|CE Certified
• Current Rating: 16 A
• Mounting Type: DIN Rail Mount
• Primary Type: Relay Sockets
• Termination: Screw terminal
• Voltage Rating: 300 V
• Alternate Catalog Number: US2:3TX71444E5
• Amperage Rating: 10 A
• Length: 5.6500 in
